Clack WS1 Water Softener

AQCLA-1.0-WS1

Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(15)
Capacity

Highlights

Description

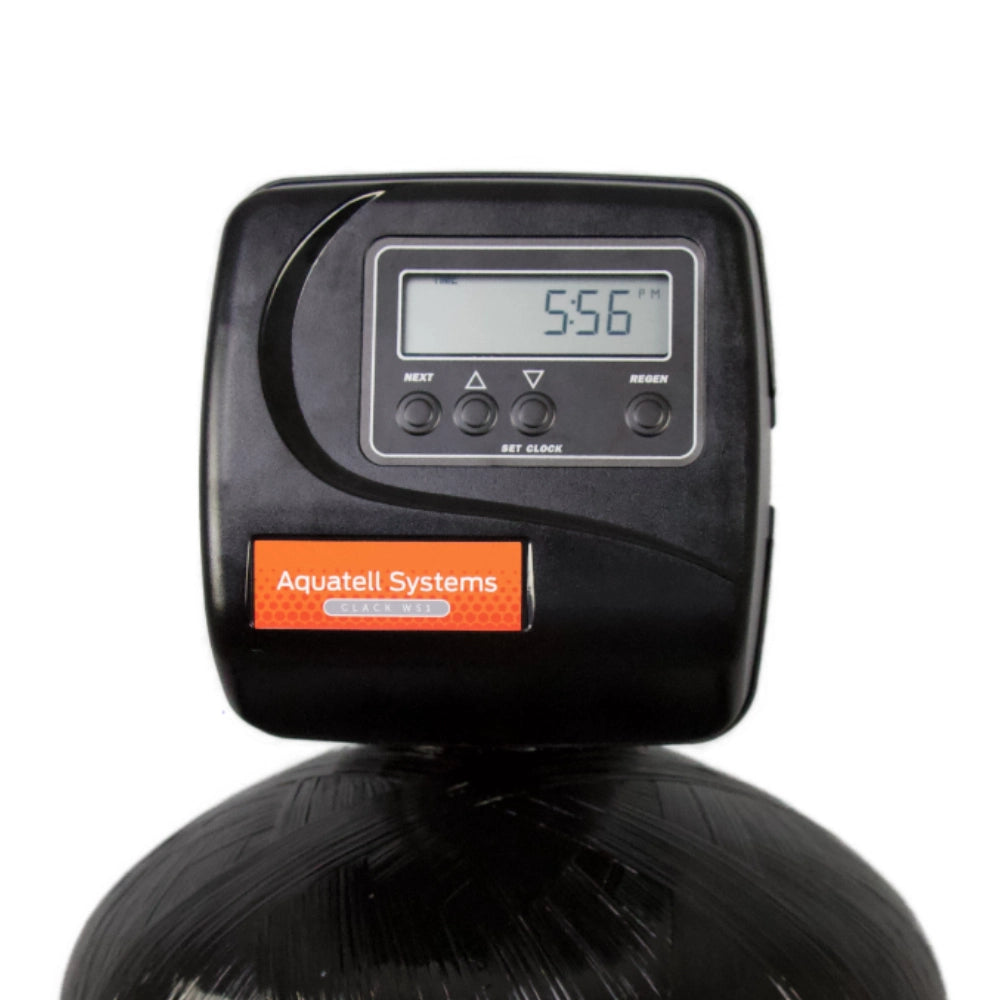

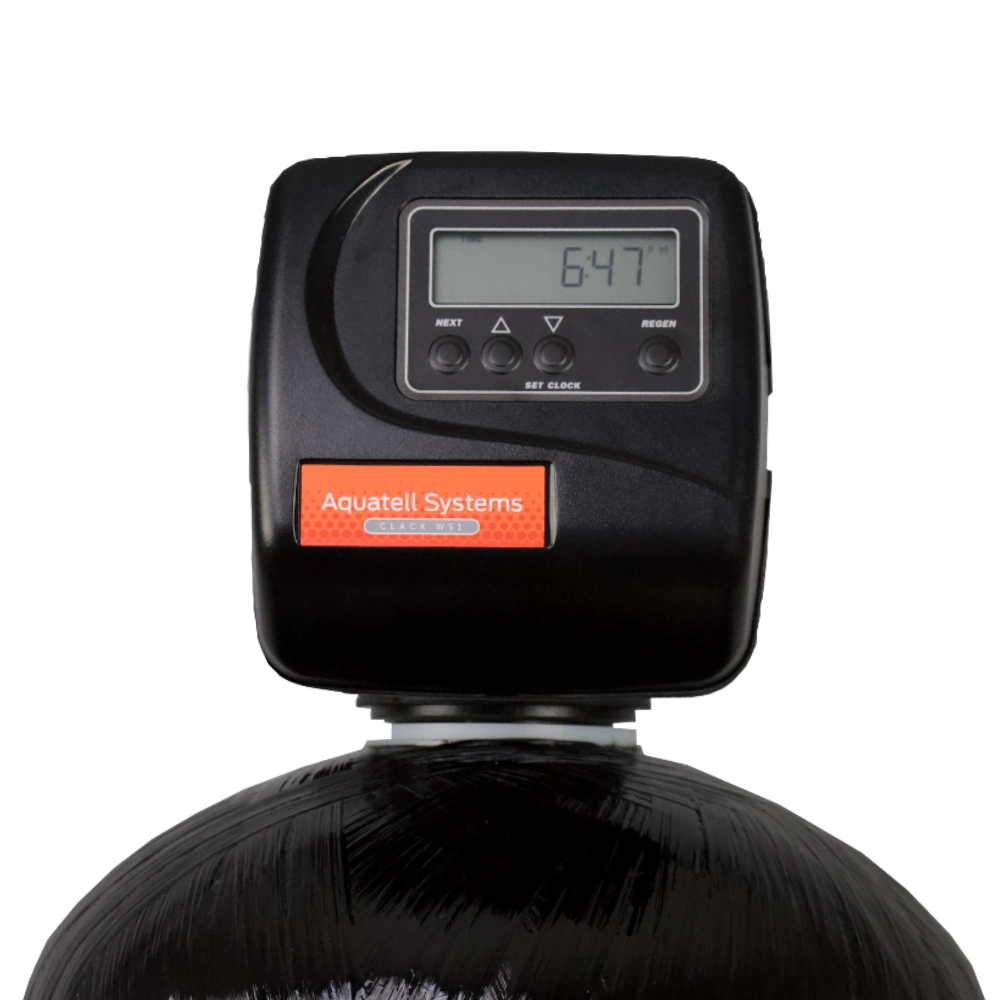

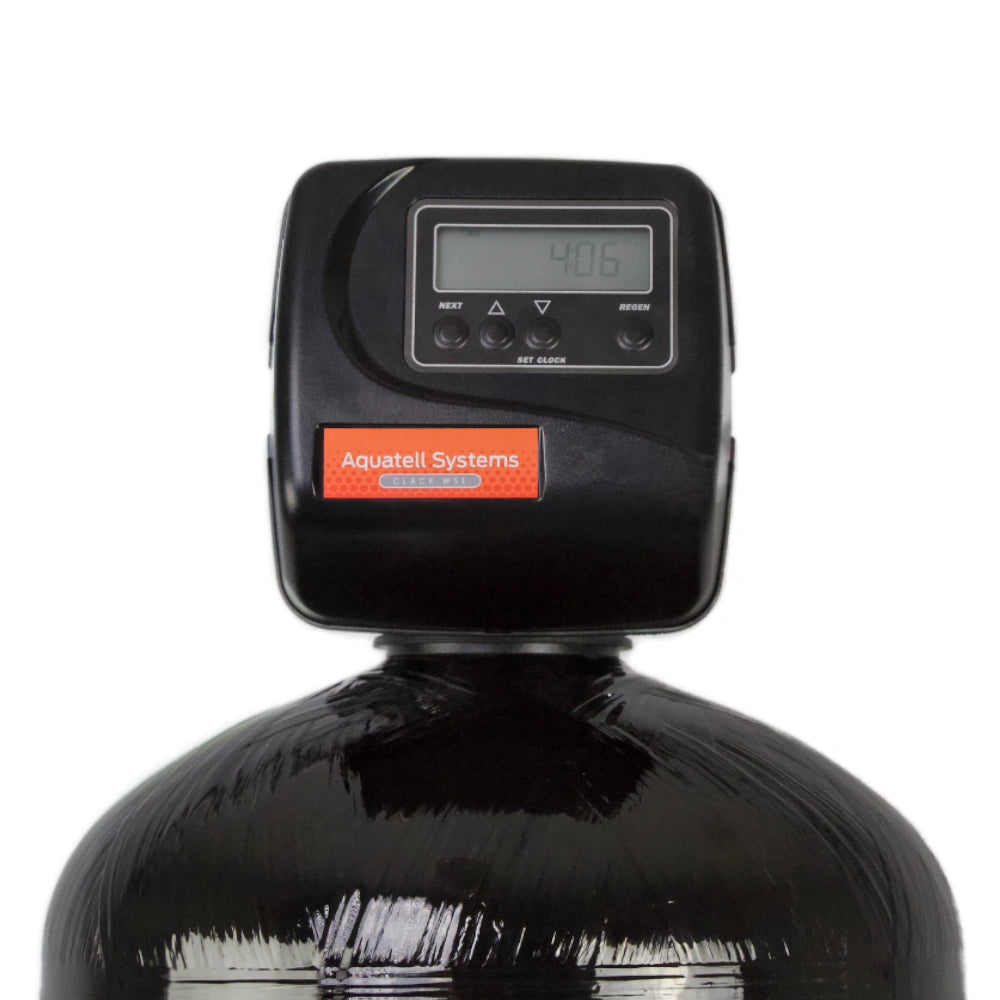

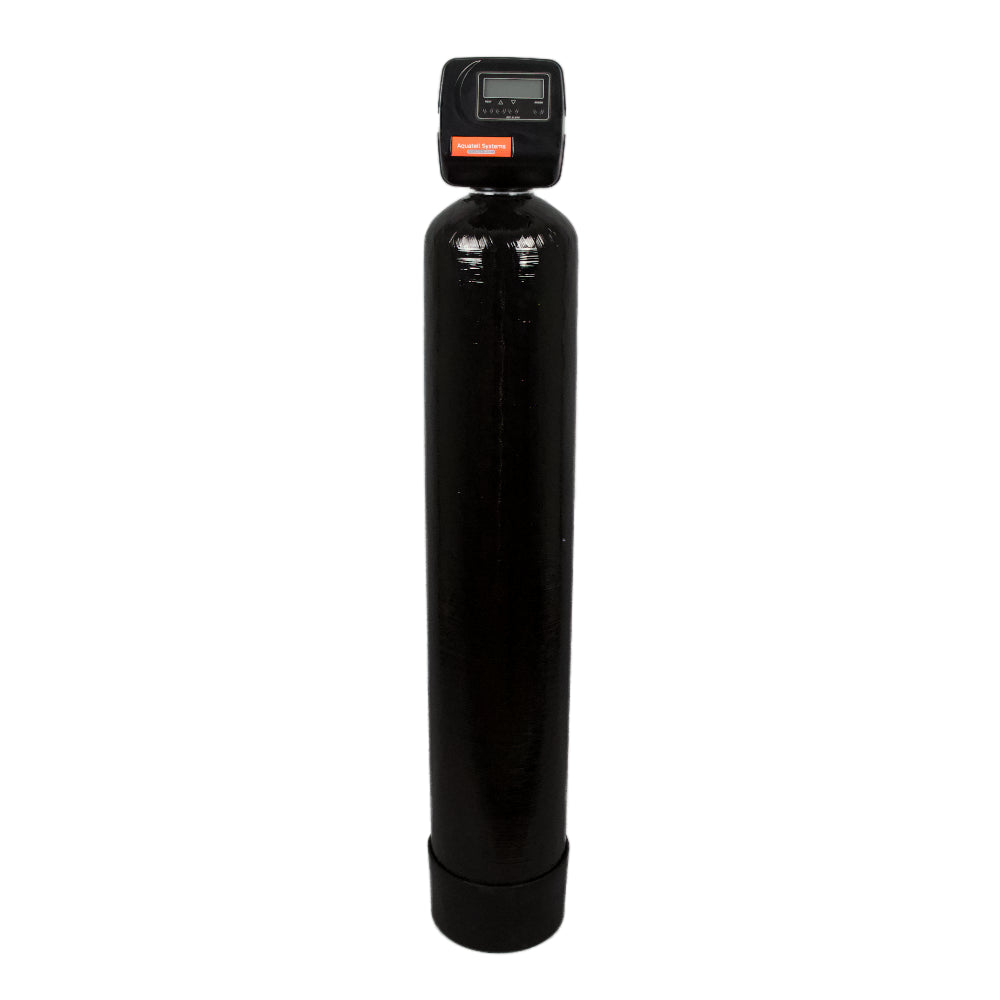

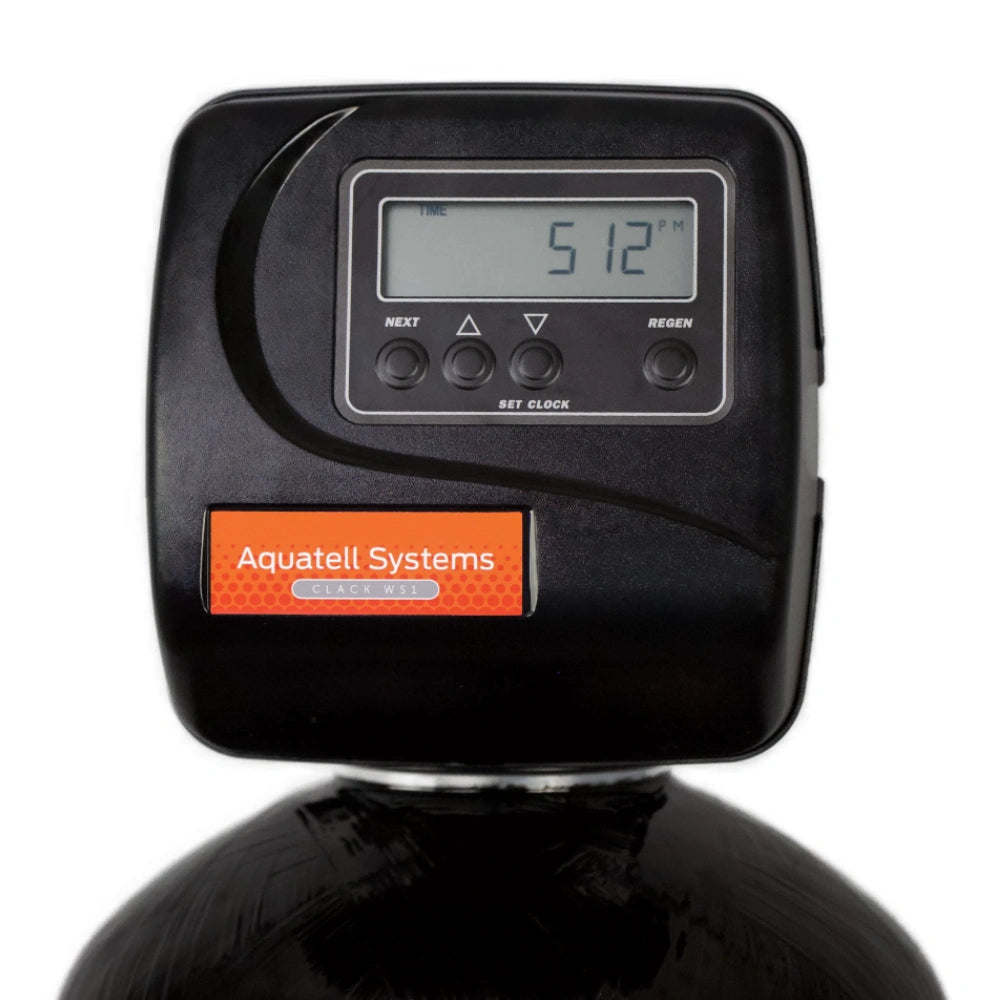

The Aquatell Clack™ water softener features the sophisticated and high-flow Clack WS1 metered electronic control valve, Structural composite tanks, brine tank safety float, and 10% cross linked resin.

Tech Specs

  • Softener Efficiency Rating (SER): 3,333 grains / pound
  • Install Location: Point of Entry
  • Softener Tank Dimensions: 8" x 44" (0.75 cubic foot), 9" x 48" (1.0 cubic foot), 10" x 54" (1.5 cubic feet), 12" x 52" (2.0 cubic feet), 13" x 52" (2.5 cubic feet), 14" x 65" (3.0 cubic feet) - add 7.9" for control valve height
  • Brine Tank Dimensions: 14" x 14" x 35" (includes lid, dimensions at base slightly smaller)
  • 200 pound salt capacity (about 4.5 of the standard bags of salt)
  • Plumbing: 3/4" threaded male connectors
  • Electrical Requirements: 110V Standard
  • All components certified to 100 psi however 75 psi max static pressure recommended to accommodate for spikes and water hammer

Product Resources

In the Box

Product Warranty

  • 5 years top-to-bottom warranty


Make Your Softener Last 25% Longer

Chlorine and chloramine keep city water safe on the way to your home, then slowly oxidize your softener's resin. Chloramine does the most damage, and more cities are switching to it. Remove them first to extend resin life by up to 25% and get water that is better for your skin, hair and drinking.

Pairs well with your softener Whole House Carbon Chloramine Filter

Whole House Carbon Chloramine Filter

  • Extends softener resin life by up to 25%
  • Gentler on skin and hair, better tasting water
  • Premium downflow filtration, self-cleaning Clack backwash
Save 10% off with a softener purchaseDiscount applied automatically at checkout
$1,549.99 CAD View
Pairs well with your softener Upflow Catalytic Carbon Filter

Upflow Catalytic Carbon Filter

  • Extends softener resin life by up to 25%
  • Gentler on skin and hair, better tasting water
  • Lower cost, zero water use, fewer parts
Save 10% off with a softener purchaseDiscount applied automatically at checkout
$999.99 CAD View

Which one? Whole house backwashing gives the best filtration. Upflow costs less, uses no water and has fewer parts to maintain.
Sizing: Choose at least 1.5 cubic feet, ideally 2.0 where chloramine is present. If your softener is larger than 2.0 cubic feet, match its size.





DIY INSTALLATION - FAQS

  • Yes, many homeowners and Aquatell customers successfully install their own water softeners, especially if they’re comfortable cutting into a water line and making secure, leak-free connections.

  • The best connector is the one that matches your home’s existing plumbing size. This minimizes the number of extra plumbing connectors you’ll need to purchase. For DIY installations, “flex” connectors and connectors with push-to-connect (PTC) fittings can save tons of time and effort. Make sure you fully understand how to measure your existing pipes to ensure you match the sizing correctly.

  • No, it doesn't, however, all manufacturer documentation, including the manual, should be reviewed prior to installation, which typically includes the manufacturer’s warranty details. If anything remains unclear after reviewing manufacturer documentation, don’t hesitate to reach out to us for assistance. Also, ensure local plumbing codes are followed.

  • Most first-time DIY installers should plan for roughly 2–4 hours from start to finish, including shutting the water down, making the connections, and walking through a first regeneration/backwash. If you’re replacing an existing system and are already comfortable doing basic plumbing work, it will often be a shorter job since all necessary plumbing connections are already present and accessible.
