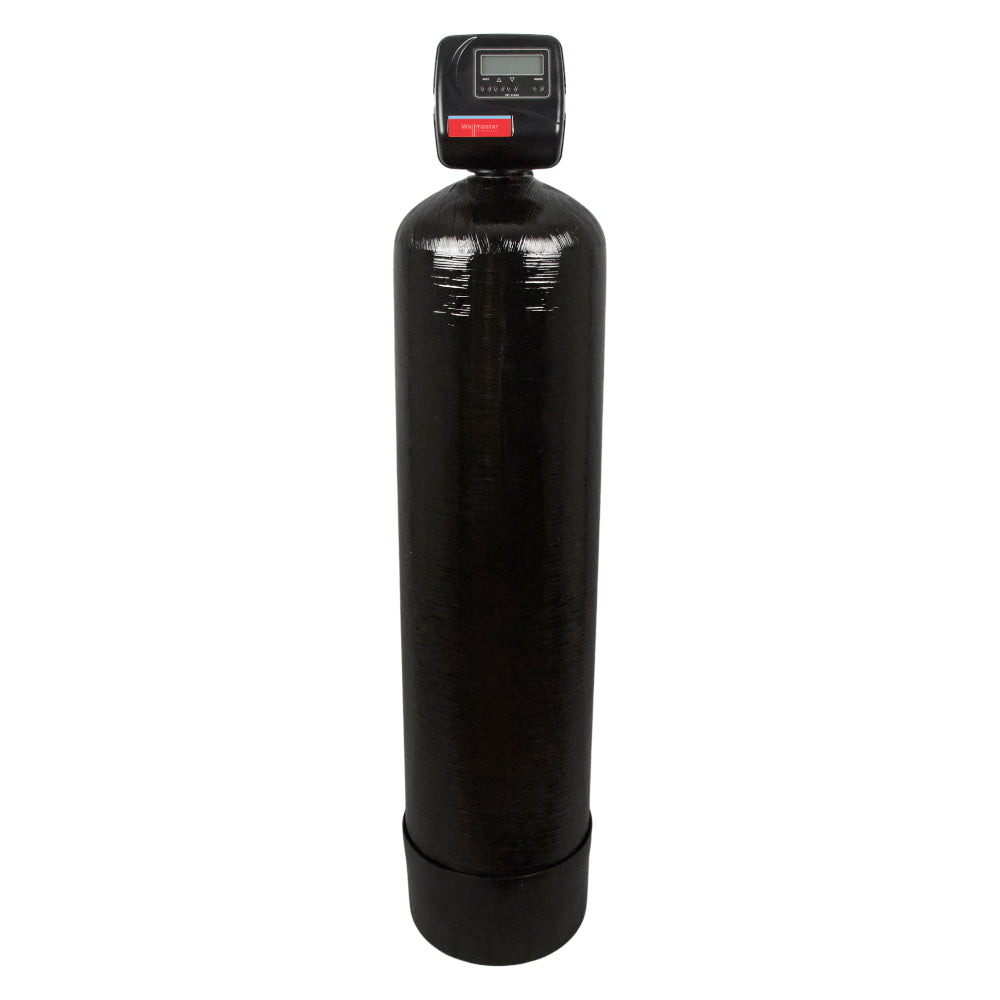

  • Wellmaster Water Softener

    AQWMSTR-1.0

    Outline star
    Outline star
    Outline star
    Outline star
    Outline star
    Filled star
    Filled star
    Filled star
    Filled star
    Filled star
    (4)
    Capacity

    Highlights

    • The perfect softener for very hard well water or where iron+manganese is present
    • Turbulator for resin scrubbing

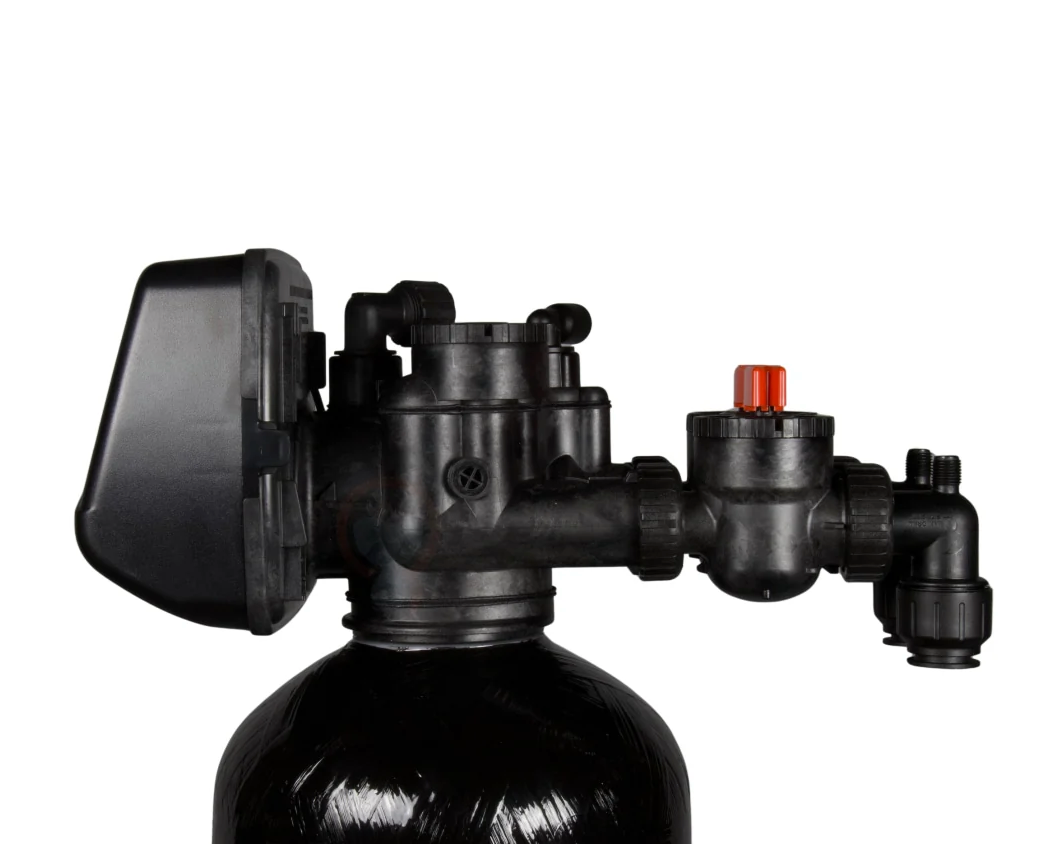

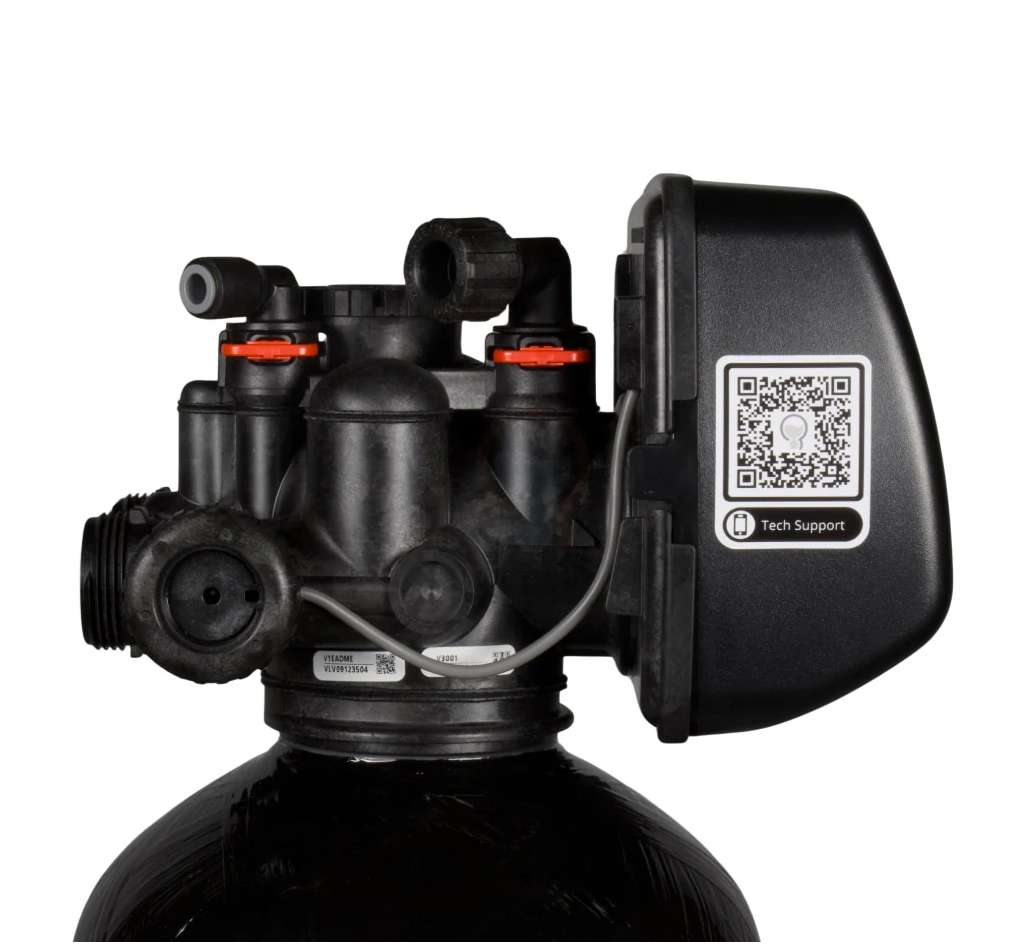

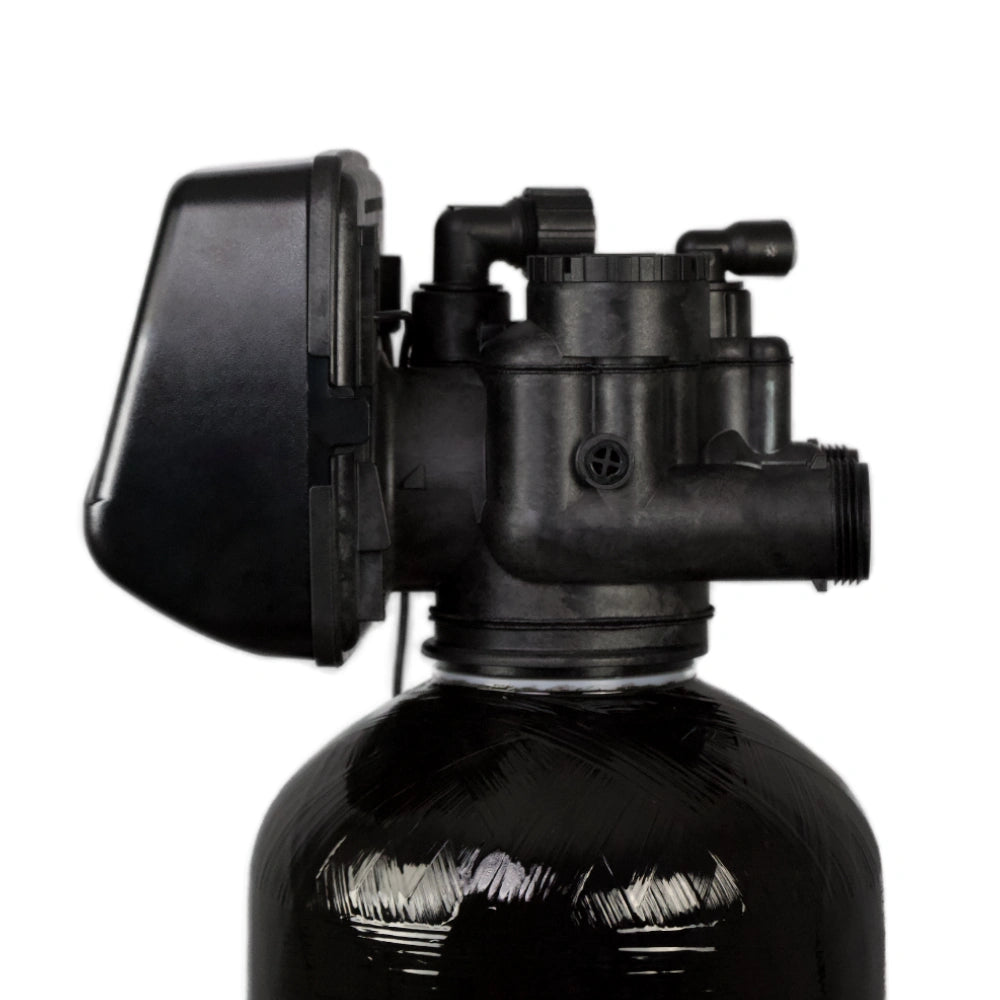

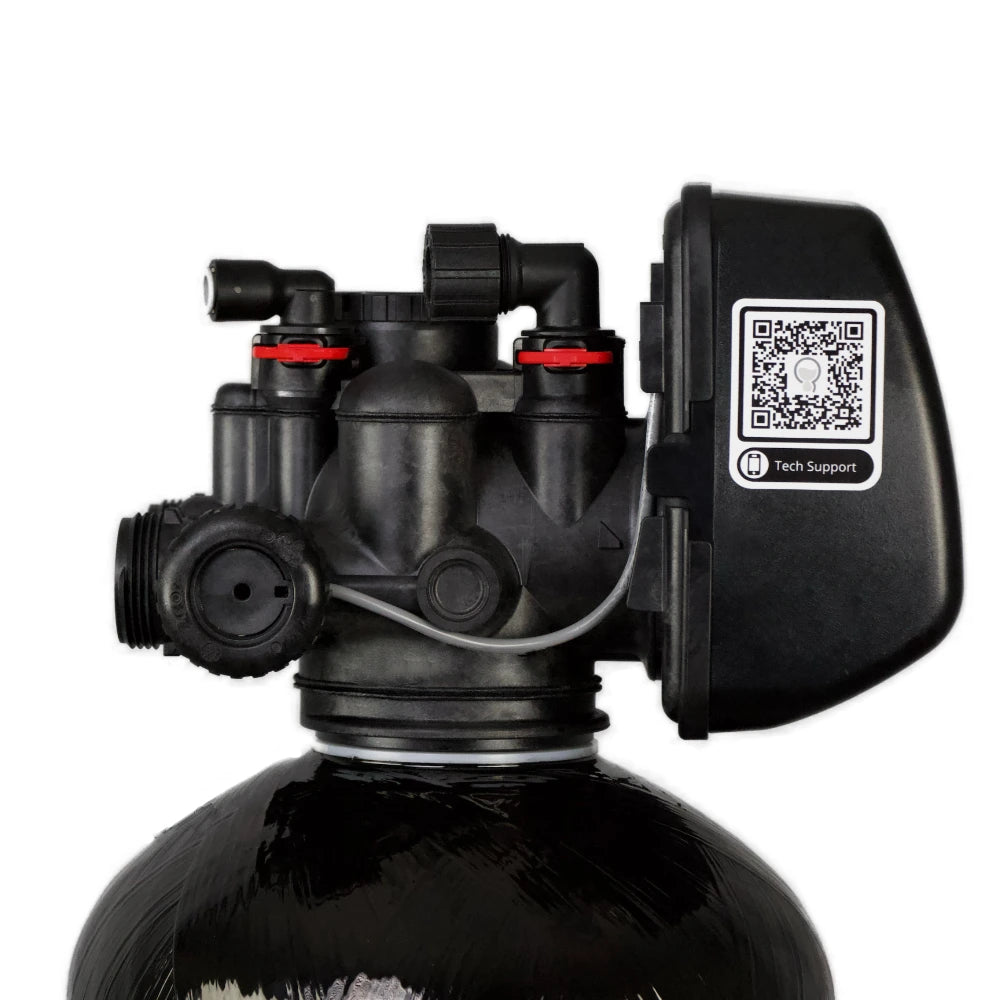

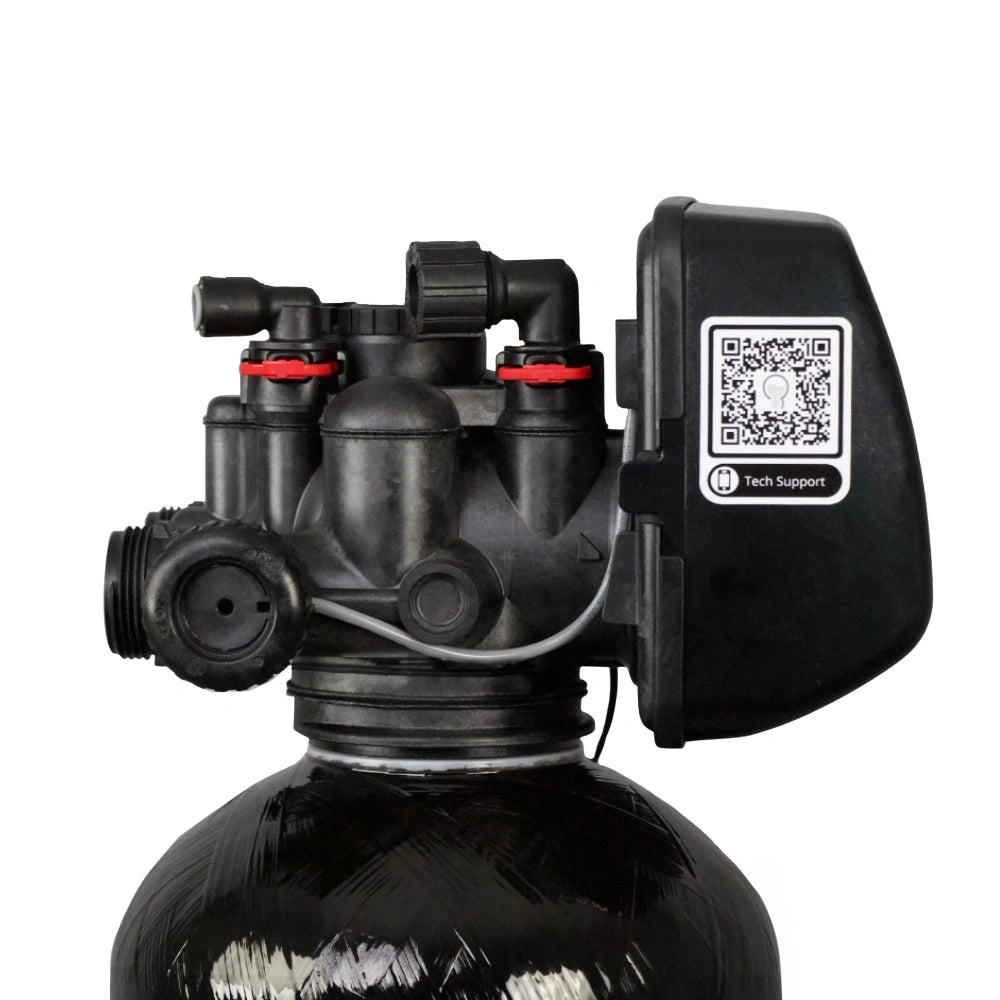

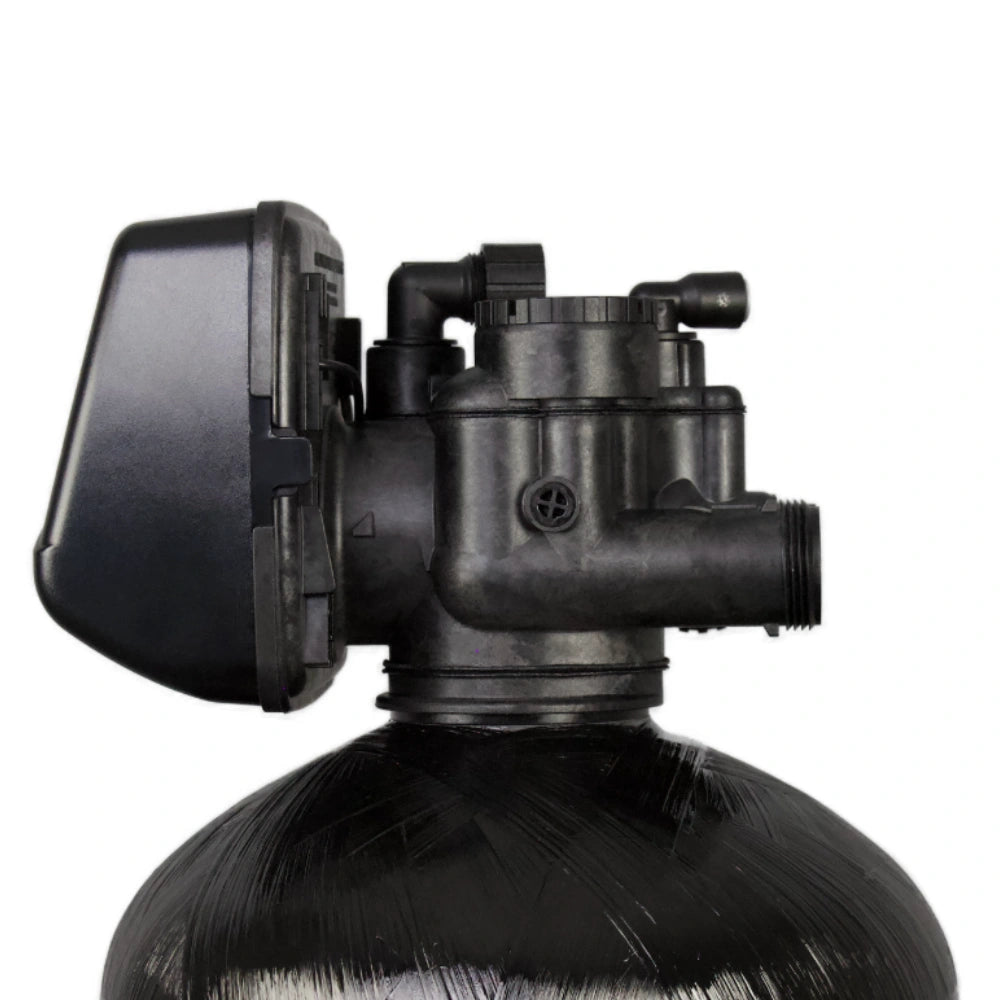

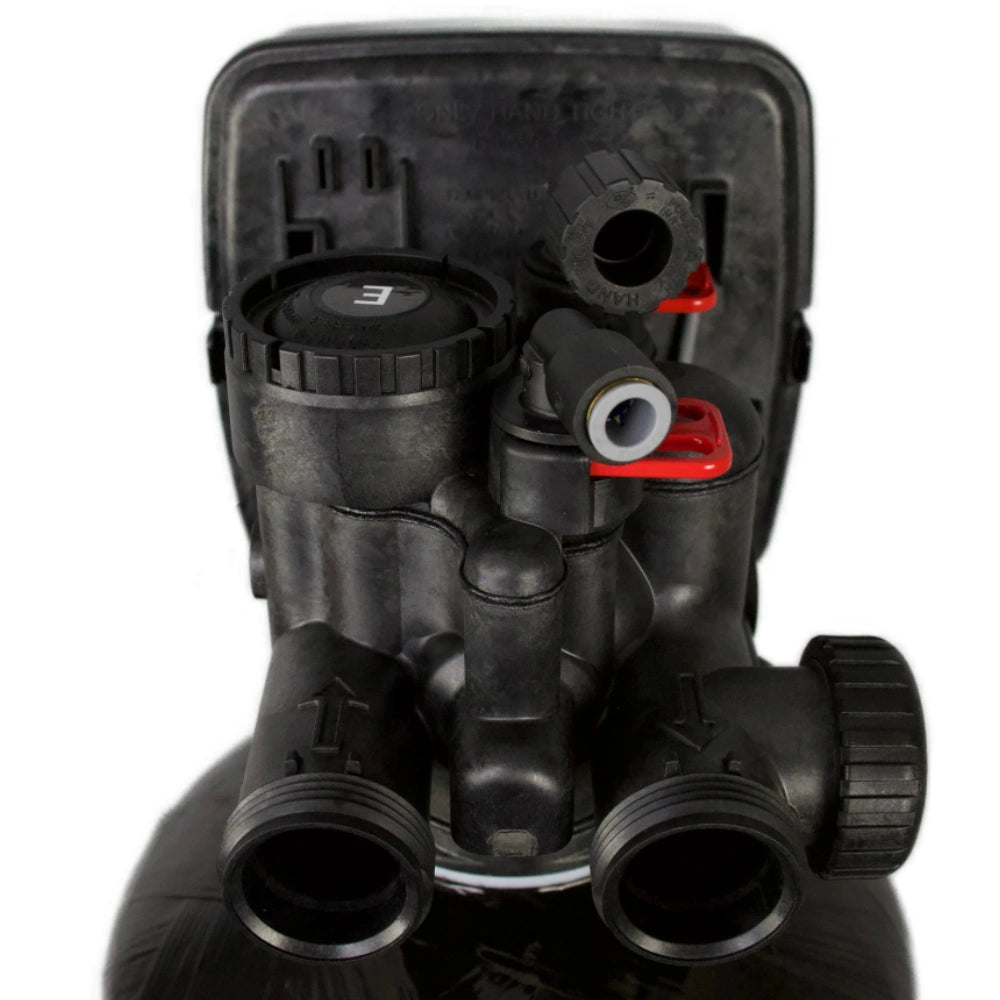

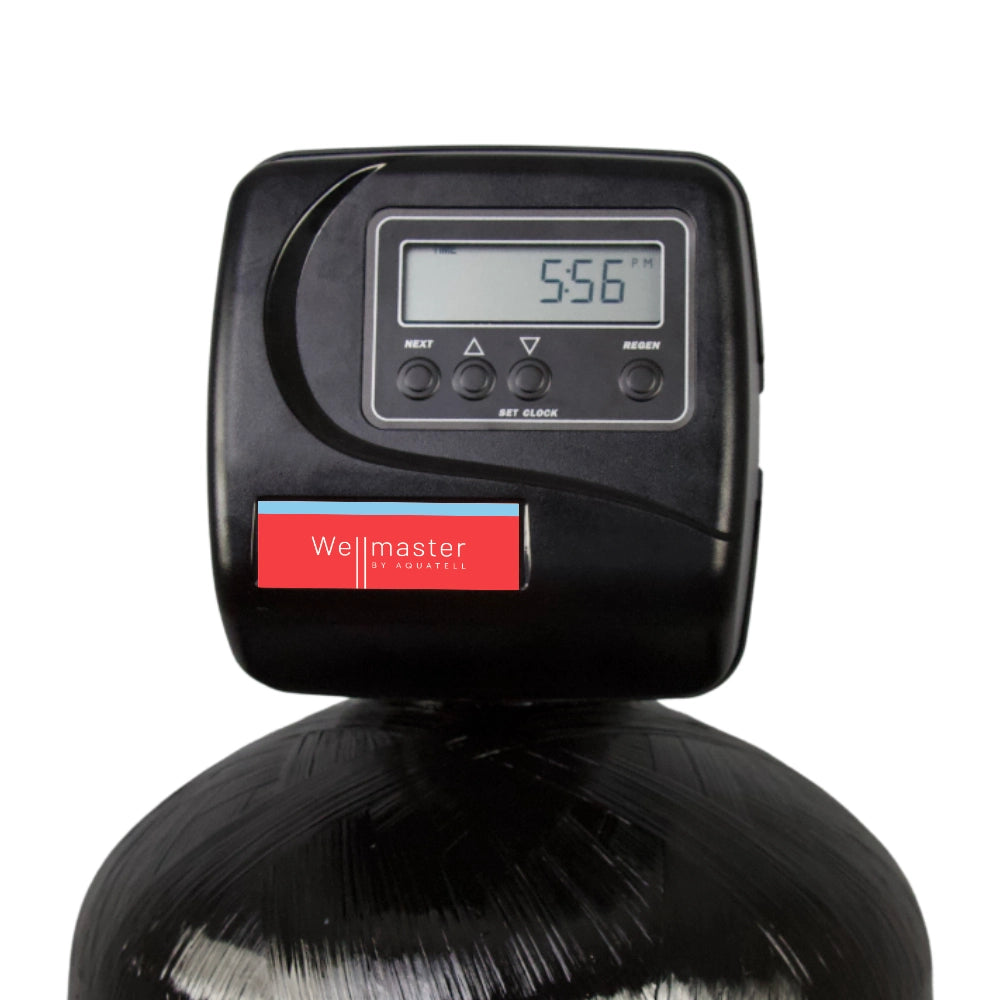

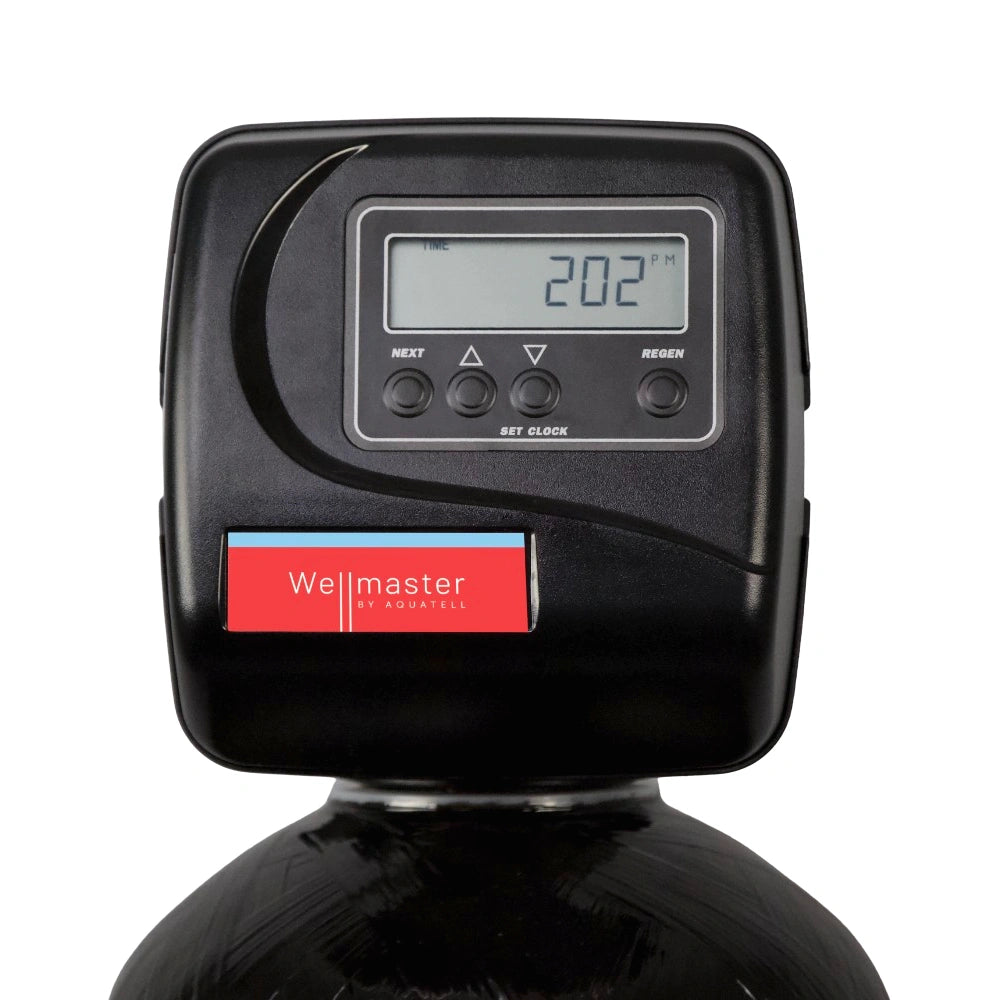

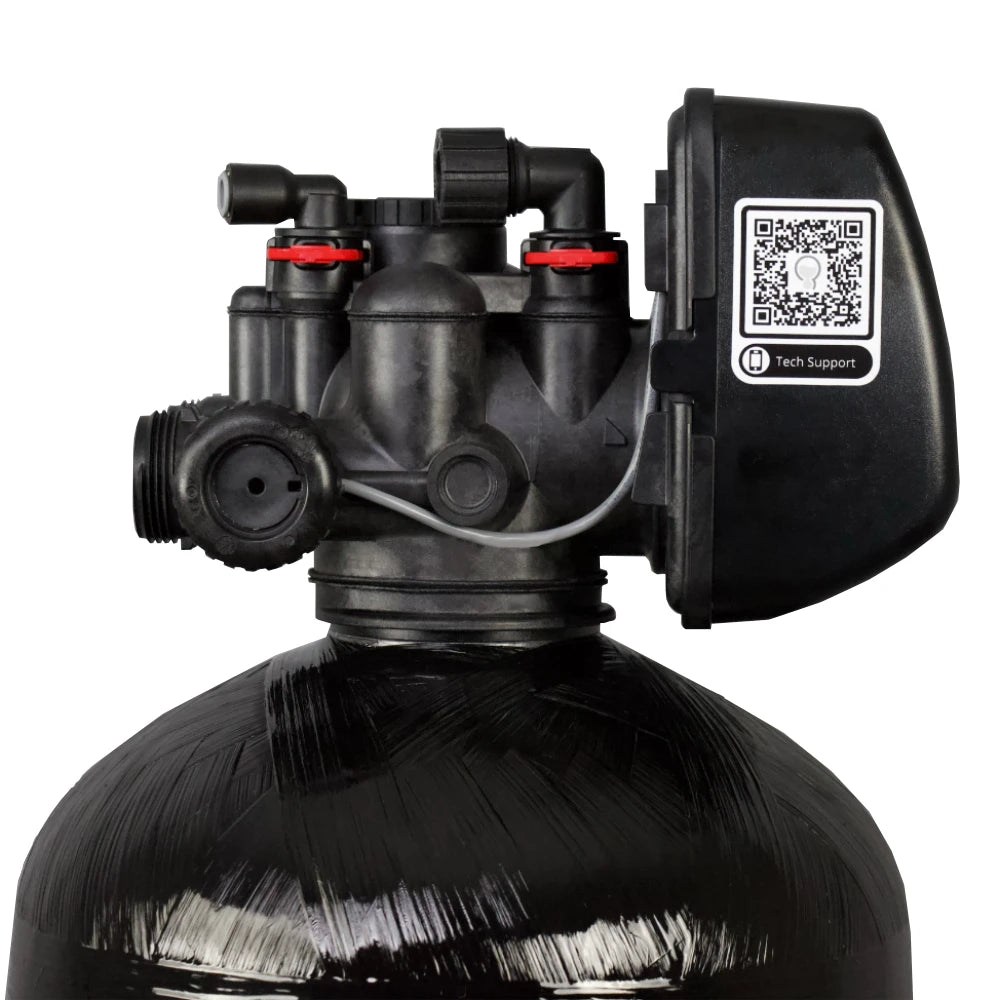

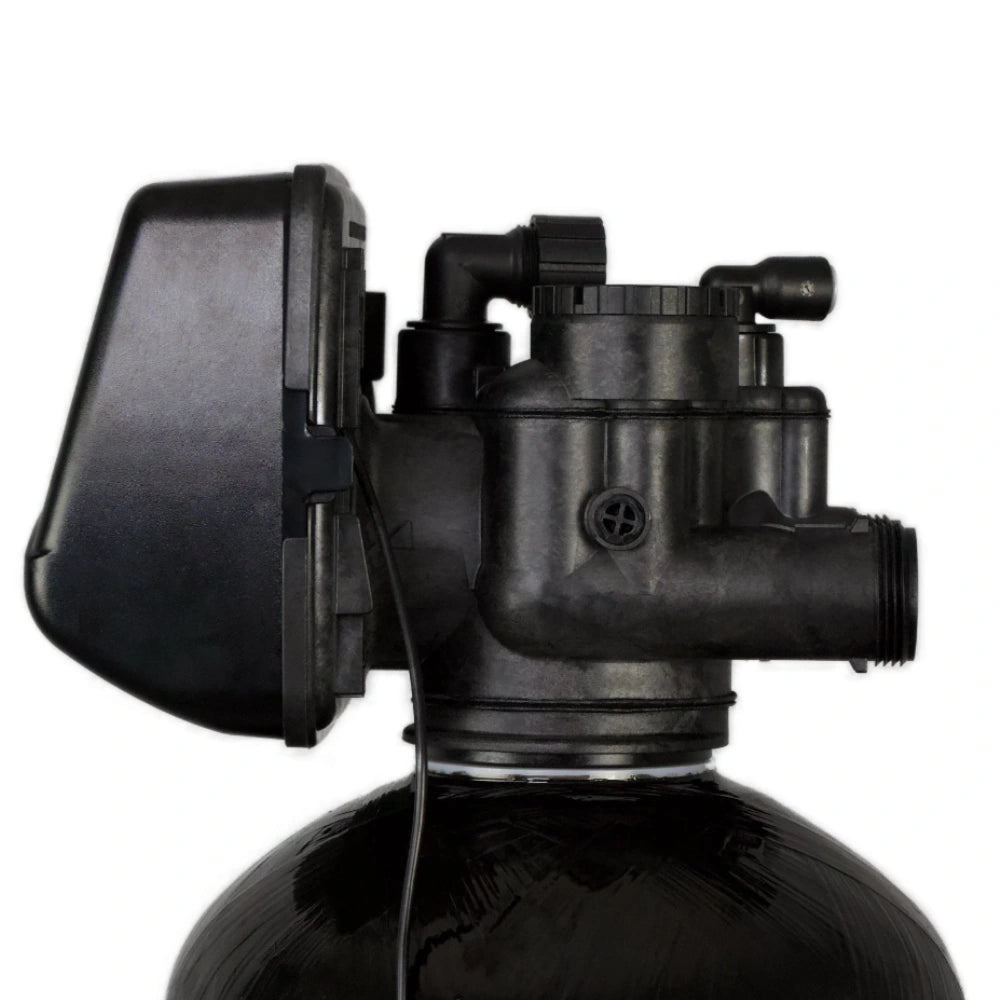

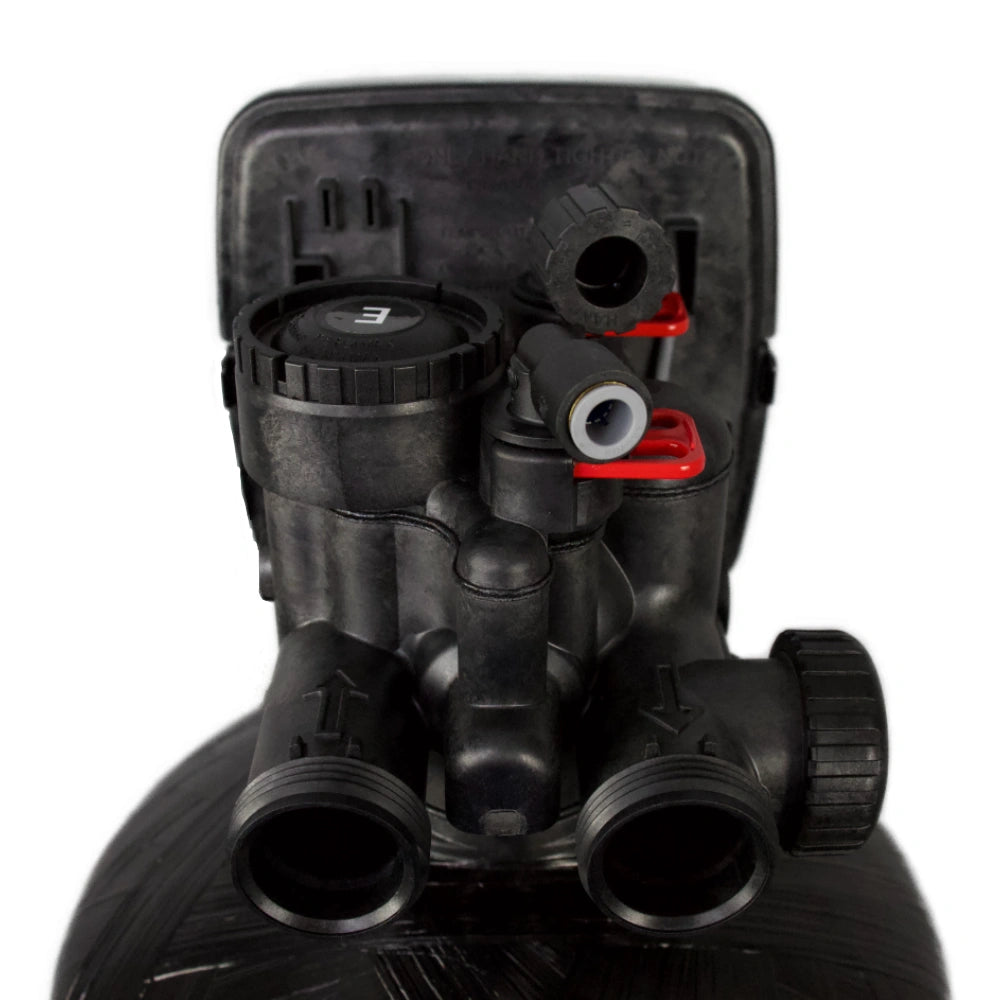

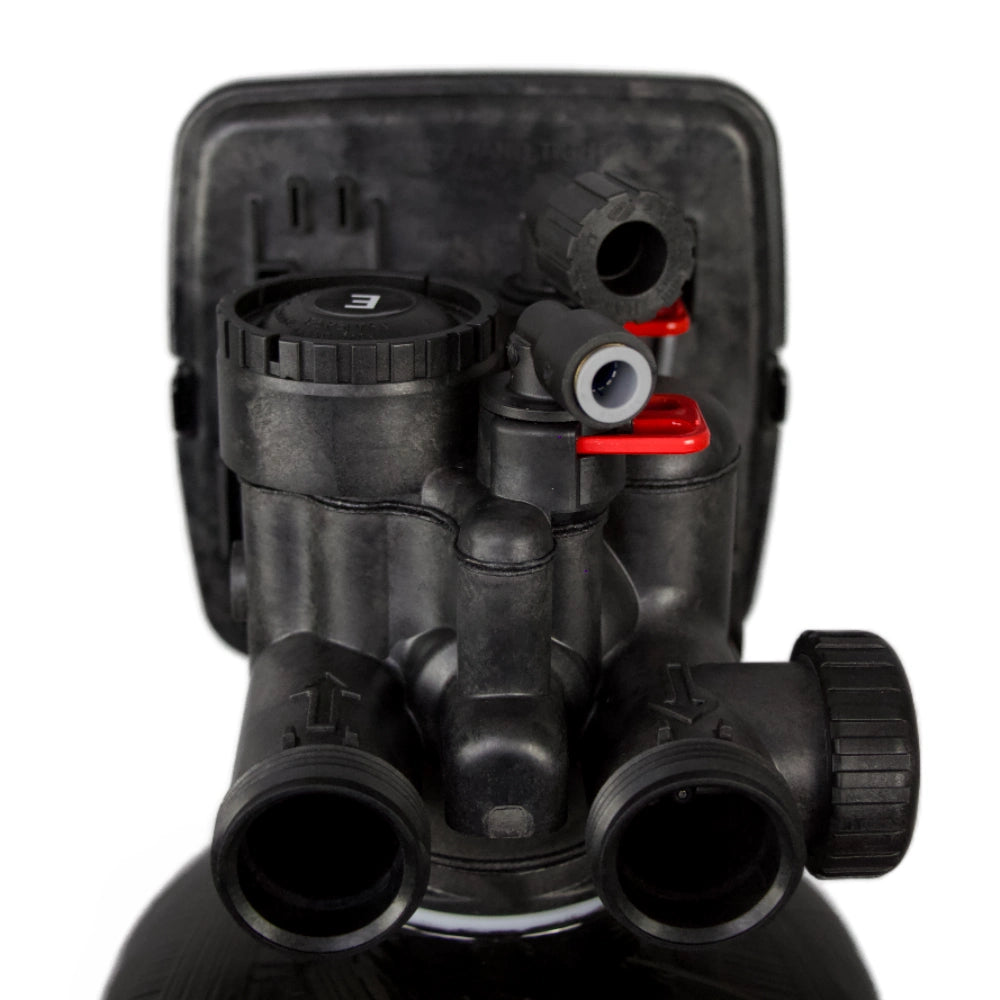

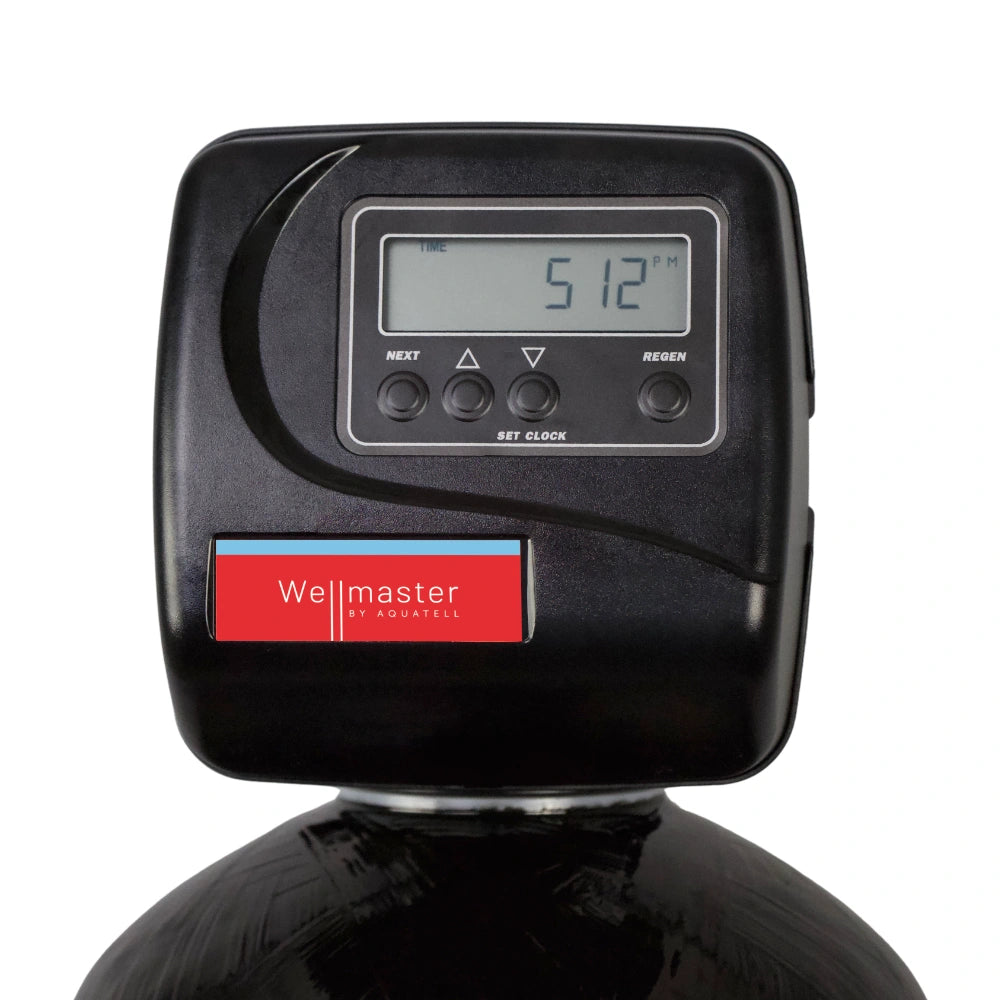

    • Clack™ Control Valve
    • Made-In-USA Resin

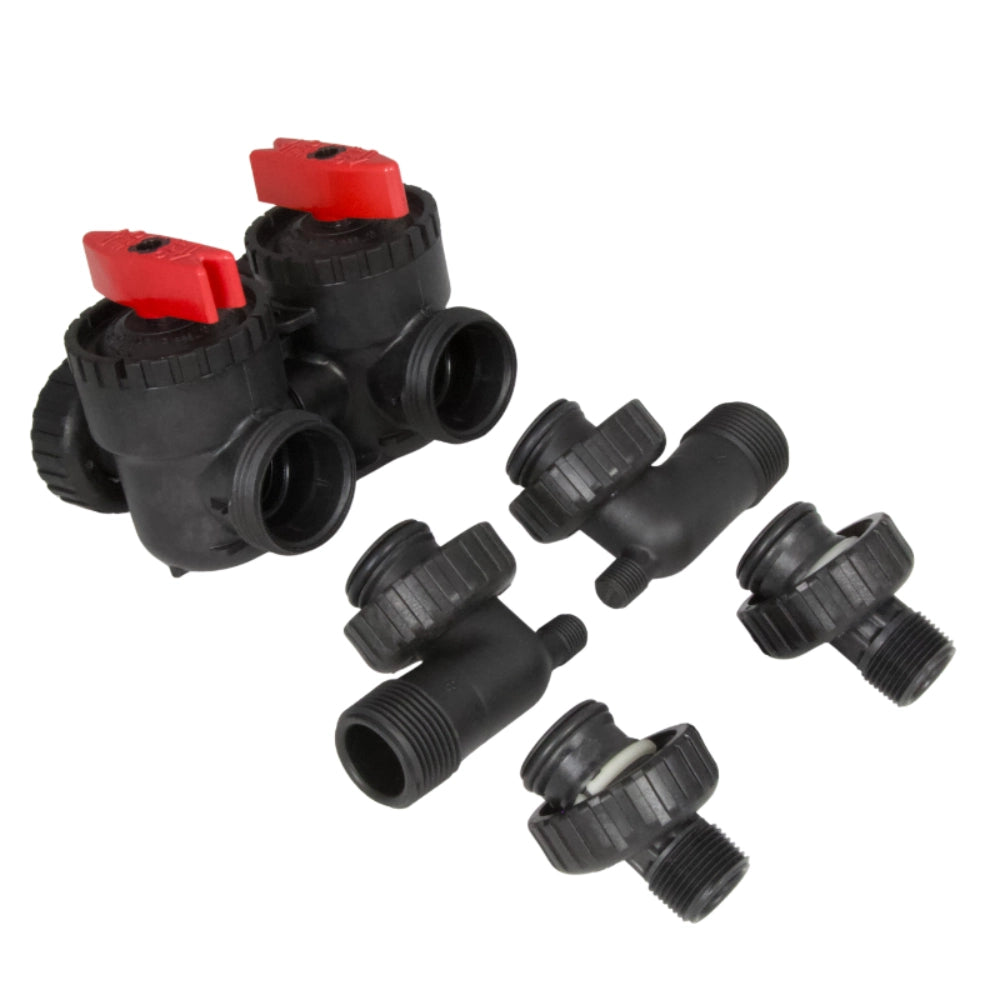

    • System shipped with 1" Male NPT Elbow and 3/4" Male NPT Straight connectors for standard plumbing

    Description

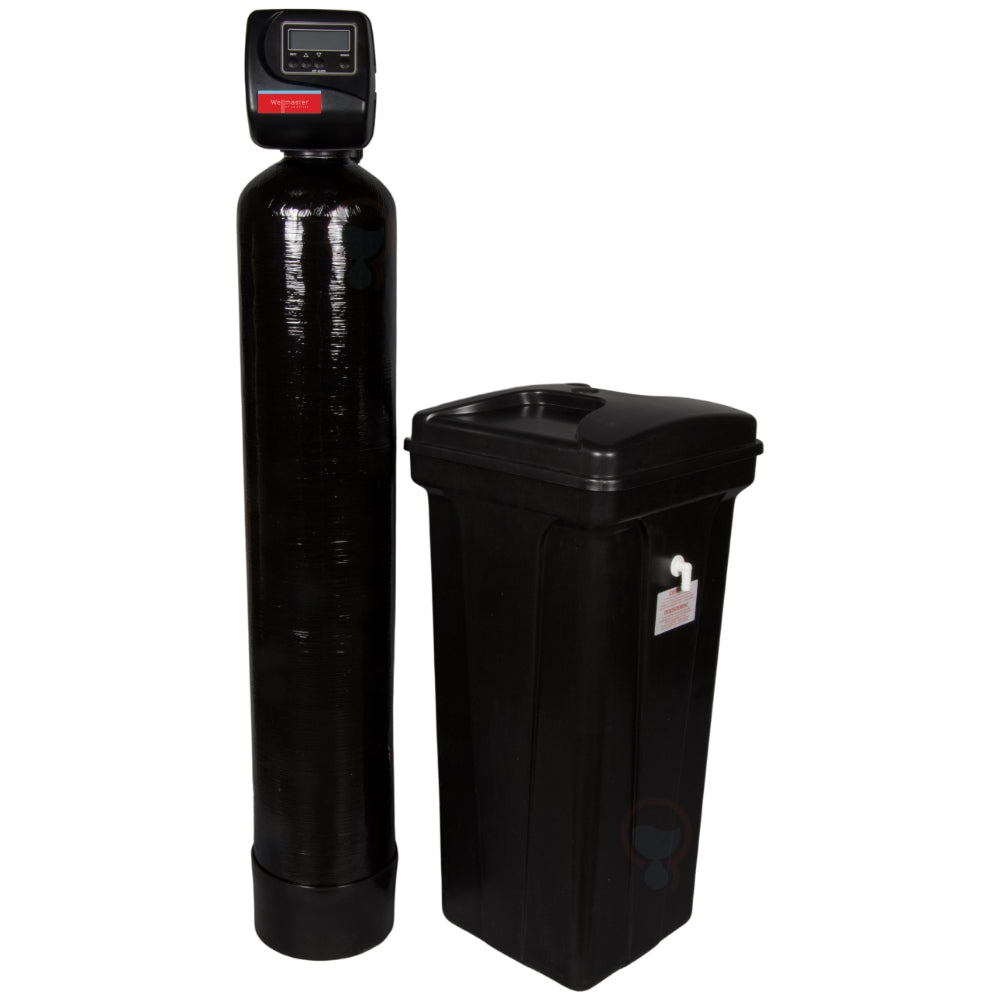

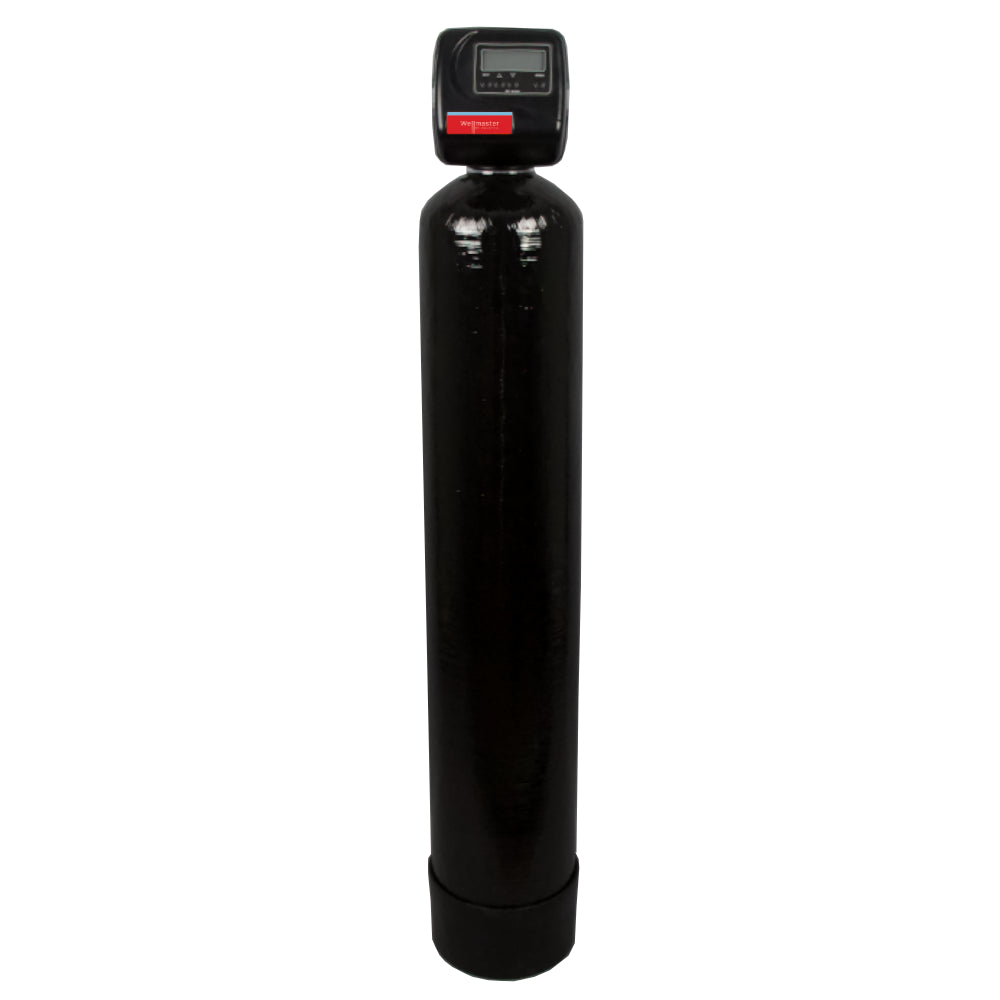

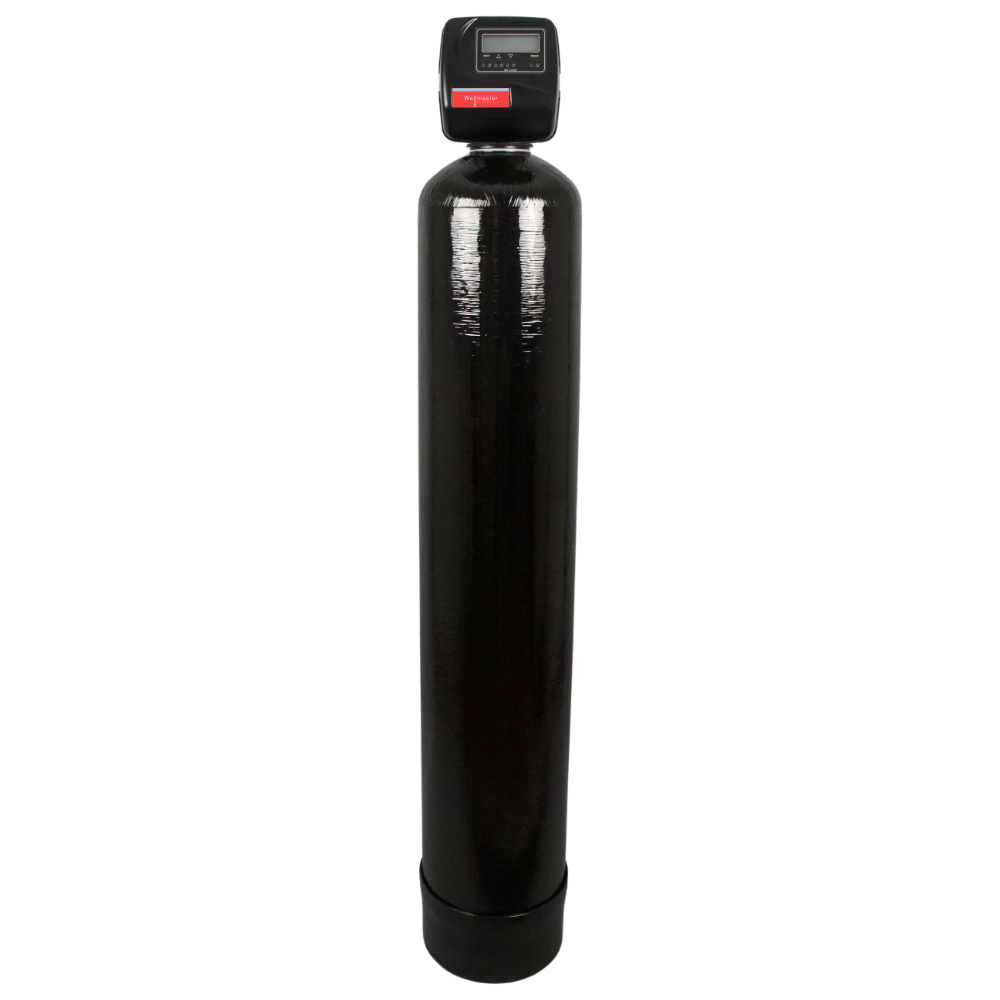

    The Wellmaster water softener is Aquatell's answer to challenging well water conditions that demand a heavy-duty response. This softener will perform in extreme hardness conditions and where iron and manganese levels are very high. HV (High Velocity) softening resin is at the heart of this over-achiever. This system will handle water with hardness values up to 85 grains per gallon and 20mg/L of combined iron + manganese* and unlike conventional resins, it will not become fouled in the process.

    Tech Specs

    • Designed & Built in London, Ontario, Canada
    • Factory Programmed
    • Demand Regenerated
    • True 1" Throughput for Max Flow
    • Max Softener Efficiency Rating (SER): 4,000 Grains / Pound (4 pounds of salt for 16,000 grains)
    • Challenging Conditions Efficiency (SER): 2,525 Grains / Pound (9.5 pounds of salt for 24,000)
    • Soft Water Brine Tank Refill
    • Service Flow Rate of 10 gpm for hardness less than 35 gpg
    • Service Flow Rate of 7.5 gpm for hardness less than 65 gpg
    • Service Flow Rate of 5.0 gpm for hardness less than 85 gpg
    • 10 mg/L (PPM) of Iron + Manganese*
    • Brine Tank Dimensions: 14" x 14" x 35"
    • 200 Pound Salt Capacity (about 3 standard bags of salt)
    • 12-hour Clock Battery Backup
    • Softener Retains Settings Even If Unpowered For Months
    • 110V A/C Adapter
    • All Components are NSF Standard 61 Certified
    • All components certified to 100 psi however 75 psi max static pressure recommended to accommodate for spikes and water hammer
    • Shipping Box 1: 9.25" x 9.25" x 35.5" - 61 lbs
    • Shipping Box 2: 11.5" x 11.5" x 35.5" - 21 lbs

    Product Resources

    In the Box

    Product Warranty

    • 5 year top-to-bottom warranty


    Make Your Softener Last 25% Longer

    Chlorine and chloramine keep city water safe on the way to your home, then slowly oxidize your softener's resin. Chloramine does the most damage, and more cities are switching to it. Remove them first to extend resin life by up to 25% and get water that is better for your skin, hair and drinking.

    Pairs well with your softener Whole House Carbon Chloramine Filter

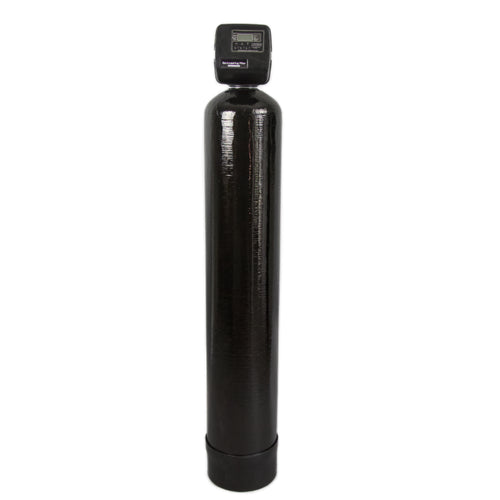

    Whole House Carbon Chloramine Filter

    • Extends softener resin life by up to 25%
    • Gentler on skin and hair, better tasting water
    • Premium downflow filtration, self-cleaning Clack backwash
    Save 10% off with a softener purchaseDiscount applied automatically at checkout
    $1,549.99 CAD View
    Pairs well with your softener Upflow Catalytic Carbon Filter

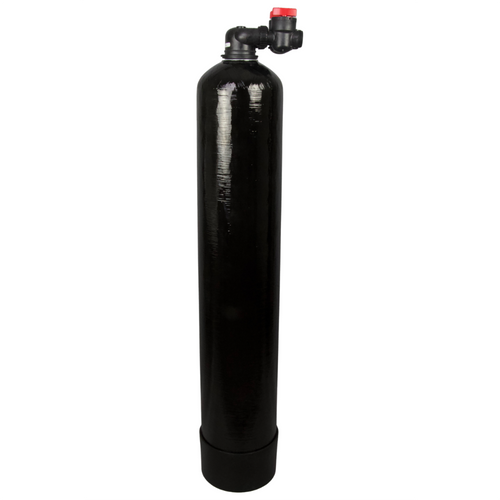

    Upflow Catalytic Carbon Filter

    • Extends softener resin life by up to 25%
    • Gentler on skin and hair, better tasting water
    • Lower cost, zero water use, fewer parts
    Save 10% off with a softener purchaseDiscount applied automatically at checkout
    $999.99 CAD View

    Which one? Whole house backwashing gives the best filtration. Upflow costs less, uses no water and has fewer parts to maintain.
    Sizing: Choose at least 1.5 cubic feet, ideally 2.0 where chloramine is present. If your softener is larger than 2.0 cubic feet, match its size.





    DIY INSTALLATION - FAQS

    • Yes, many homeowners and Aquatell customers successfully install their own water softeners, especially if they’re comfortable cutting into a water line and making secure, leak-free connections.

    • The best connector is the one that matches your home’s existing plumbing size. This minimizes the number of extra plumbing connectors you’ll need to purchase. For DIY installations, “flex” connectors and connectors with push-to-connect (PTC) fittings can save tons of time and effort. Make sure you fully understand how to measure your existing pipes to ensure you match the sizing correctly.

    • No, it doesn't, however, all manufacturer documentation, including the manual, should be reviewed prior to installation, which typically includes the manufacturer’s warranty details. If anything remains unclear after reviewing manufacturer documentation, don’t hesitate to reach out to us for assistance. Also, ensure local plumbing codes are followed.

    • Most first-time DIY installers should plan for roughly 2–4 hours from start to finish, including shutting the water down, making the connections, and walking through a first regeneration/backwash. If you’re replacing an existing system and are already comfortable doing basic plumbing work, it will often be a shorter job since all necessary plumbing connections are already present and accessible.
