Clack WS1 Water Softener

• Clack™ Control Valve
• 10% Cross-Linked Resin

The Aquatell Clack™ water softener features the sophisticated and high-flow Clack WS1 metered electronic control valve, Structural composite tanks, brine tank safety float, and 10% cross linked resin.

• Softener Efficiency Rating (SER): 3,333 grains / pound
• Install Location: Point of Entry
• Softener Tank Dimensions: 8" x 44" (0.75 cubic foot), 9" x 48" (1.0 cubic foot), 10" x 54" (1.5 cubic feet), 12" x 52" (2.0 cubic feet), 13" x 52" (2.5 cubic feet), 14" x 65" (3.0 cubic feet) - add 7.9" for control valve height
• Brine Tank Dimensions: 14" x 14" x 35" (includes lid, dimensions at base slightly smaller)
• 200 pound salt capacity (about 4.5 of the standard bags of salt)
• Plumbing: 3/4" threaded male connectors
• Electrical Requirements: 110V Standard

• Clack WS1 Control Valve Specs
• Clack WS1 Service Manual
• Clack WS1 Plumbing Connector Guide
• Understanding Softener Capacity: Grains vs Cubic Feet
• Water Hardness Lookup by City for Canada
• Water Softener Comparison Chart

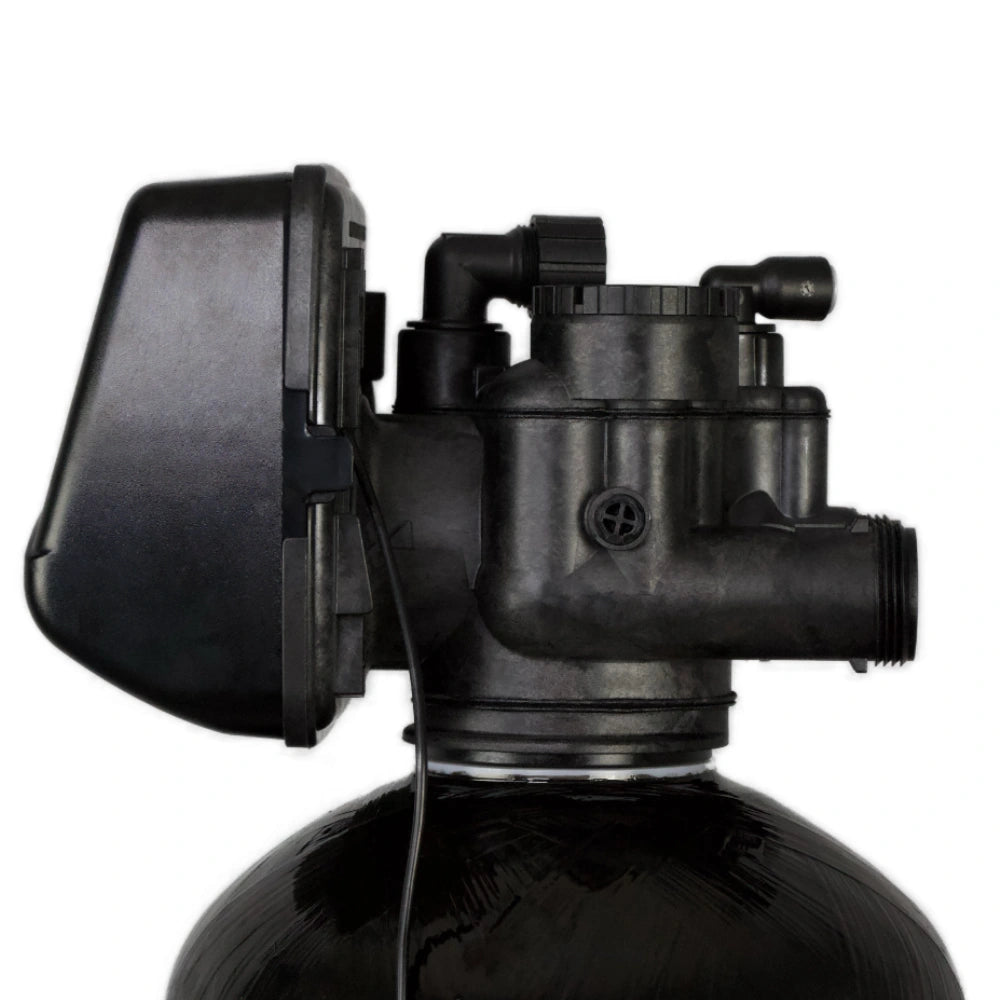

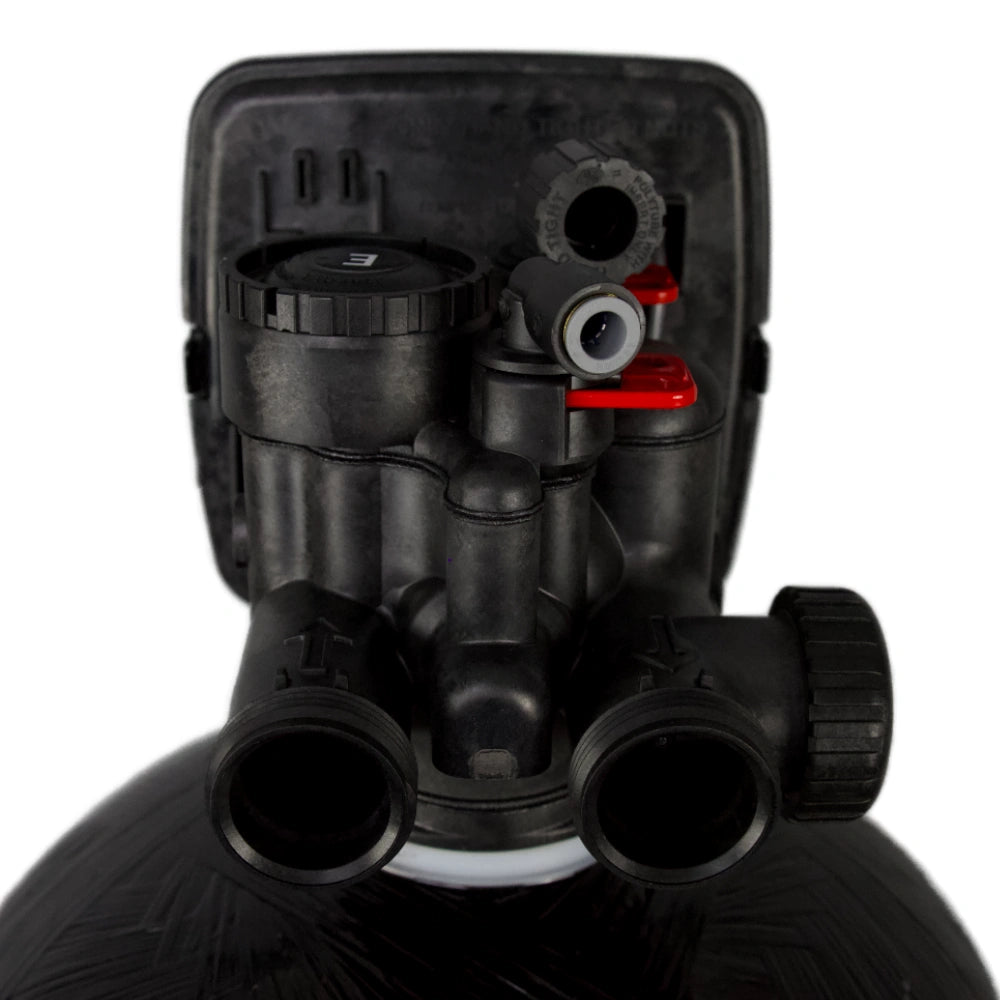

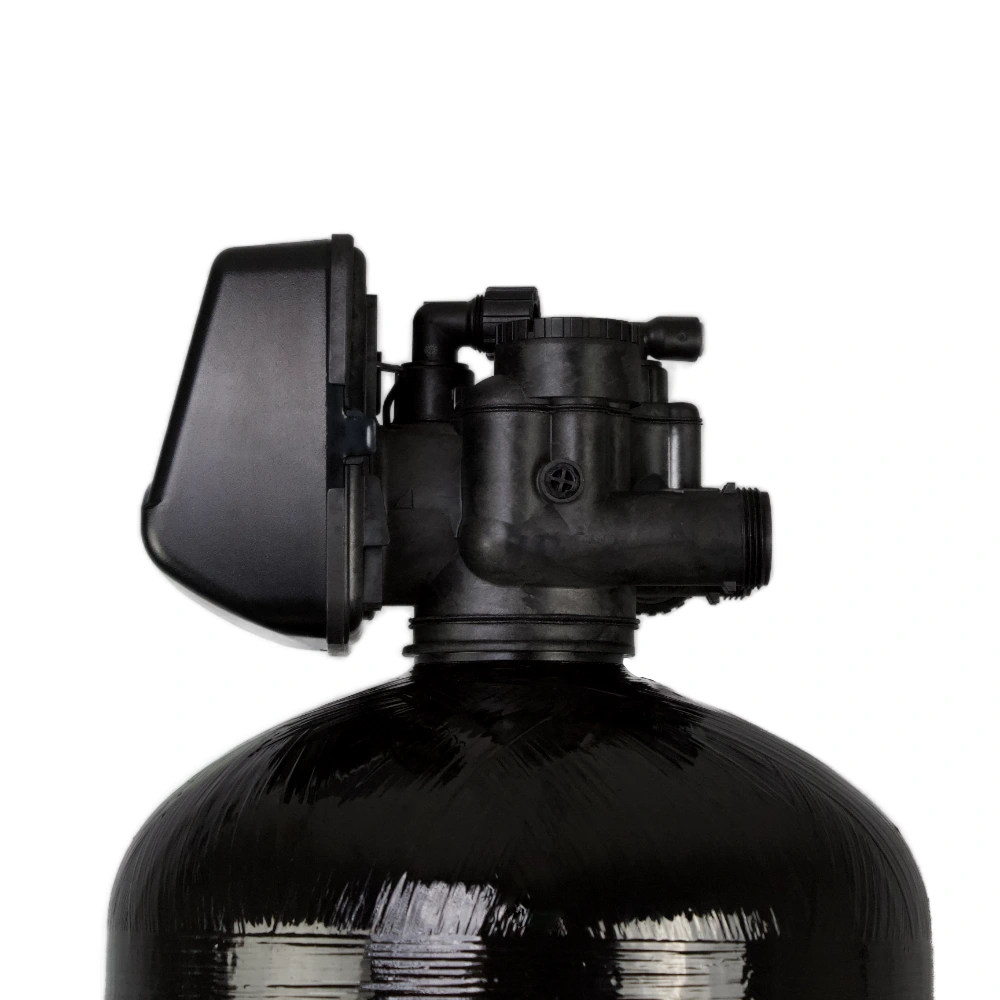

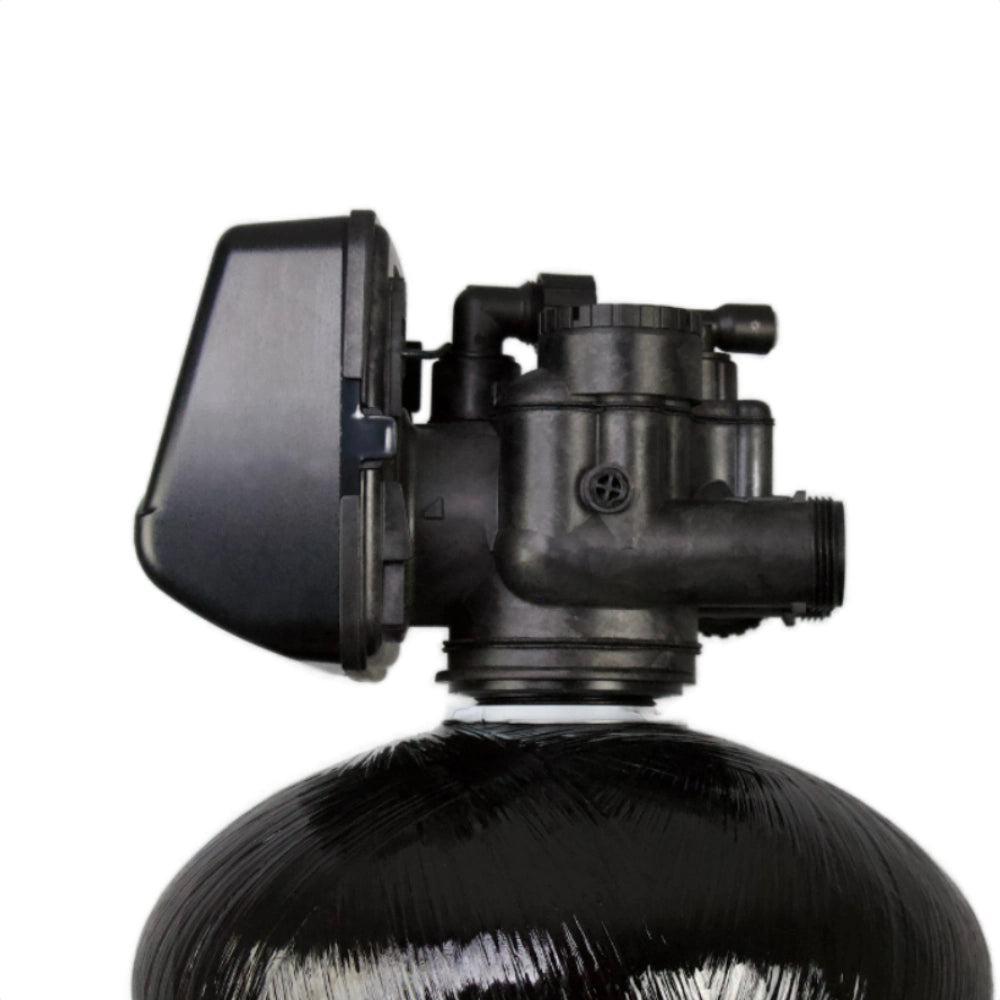

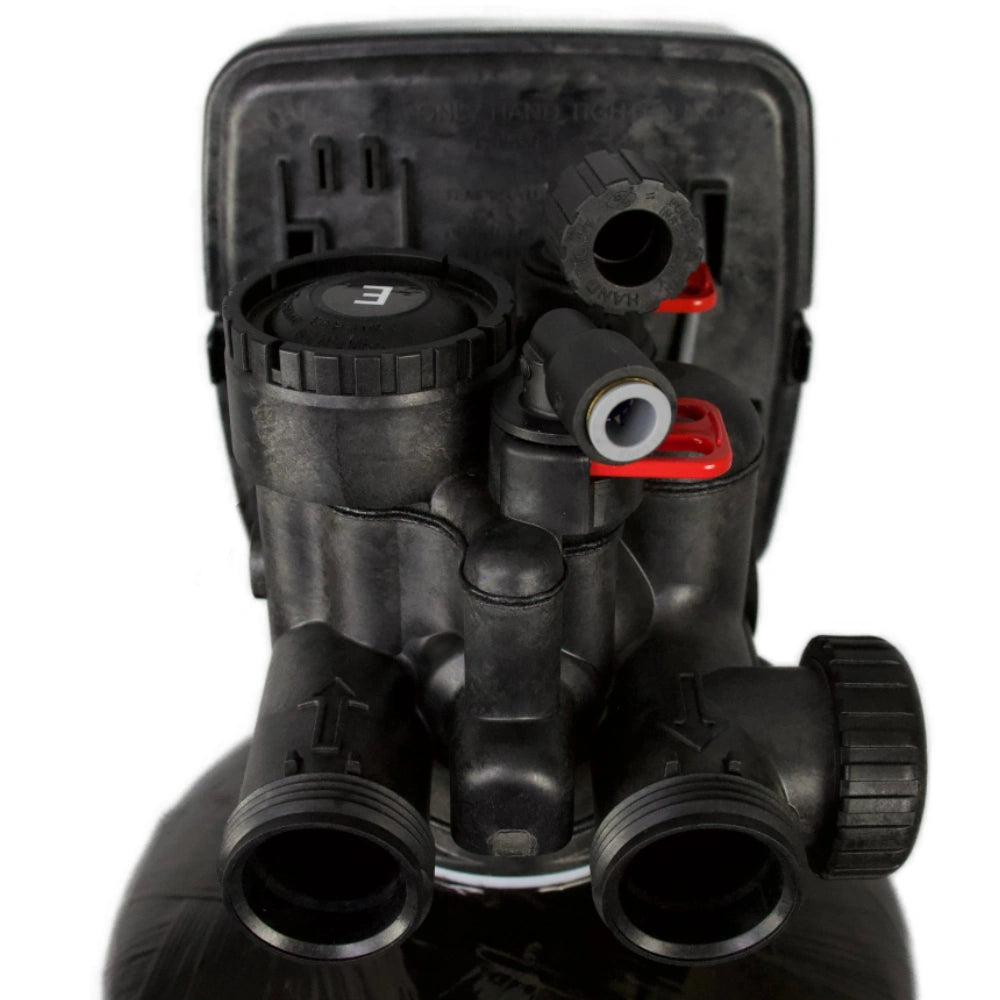

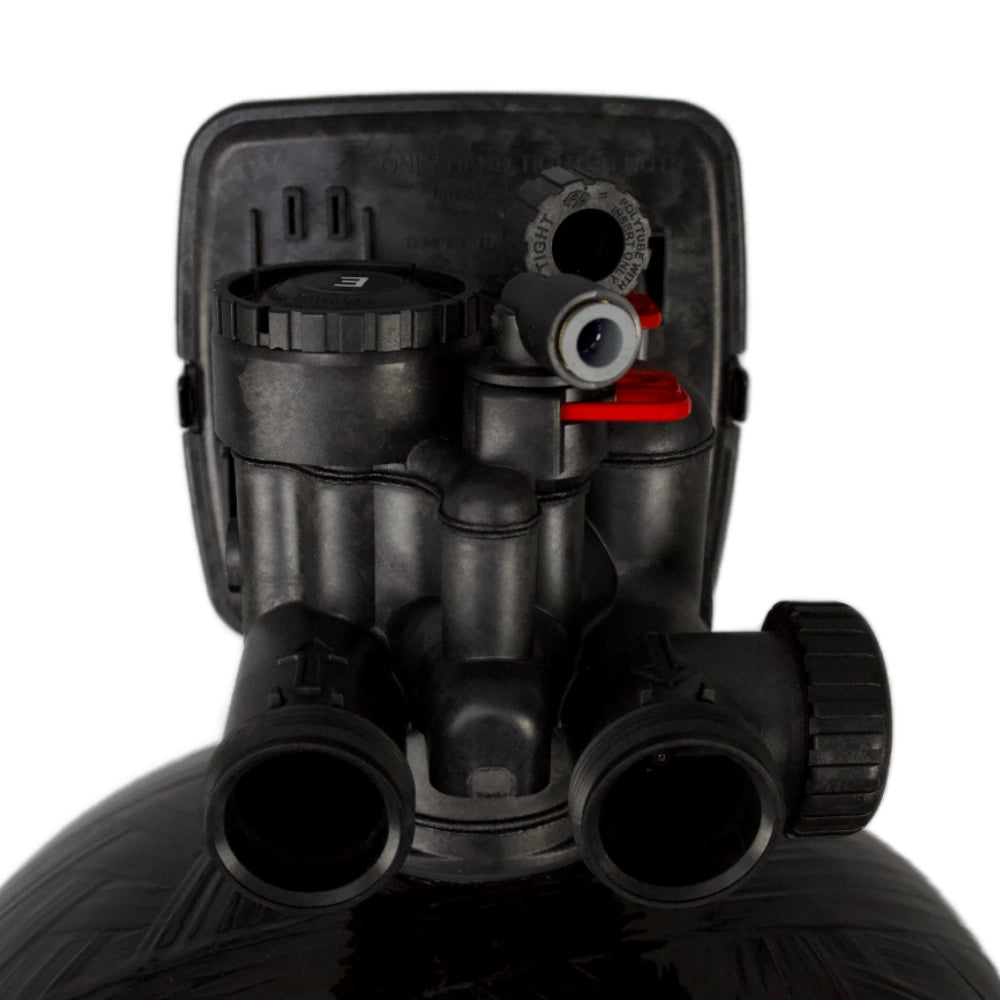

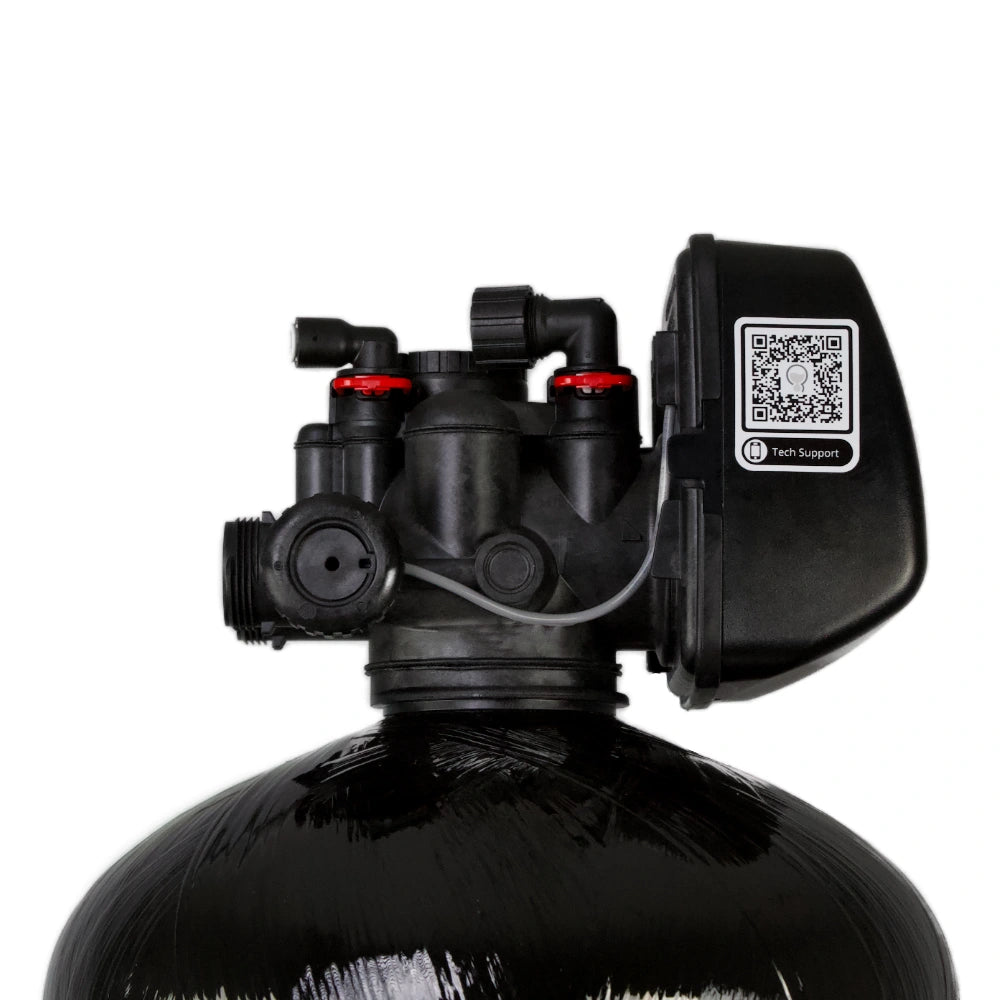

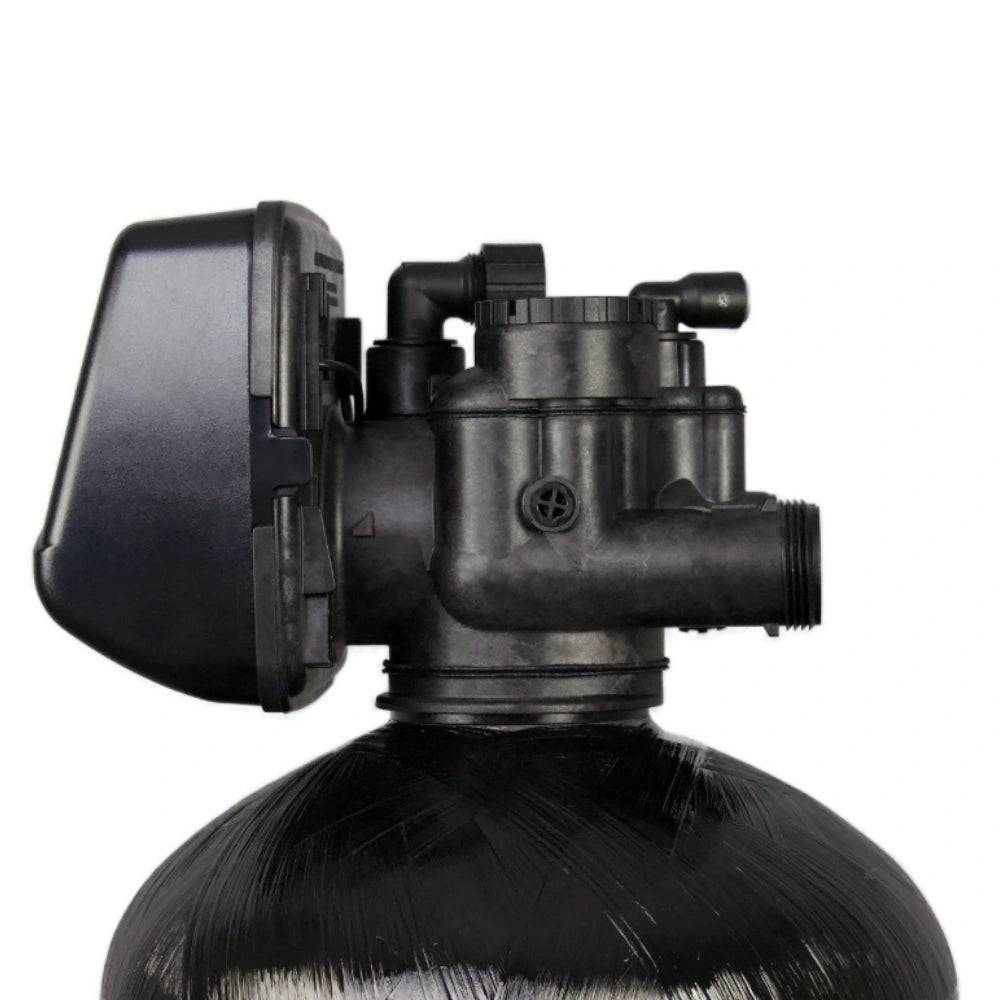

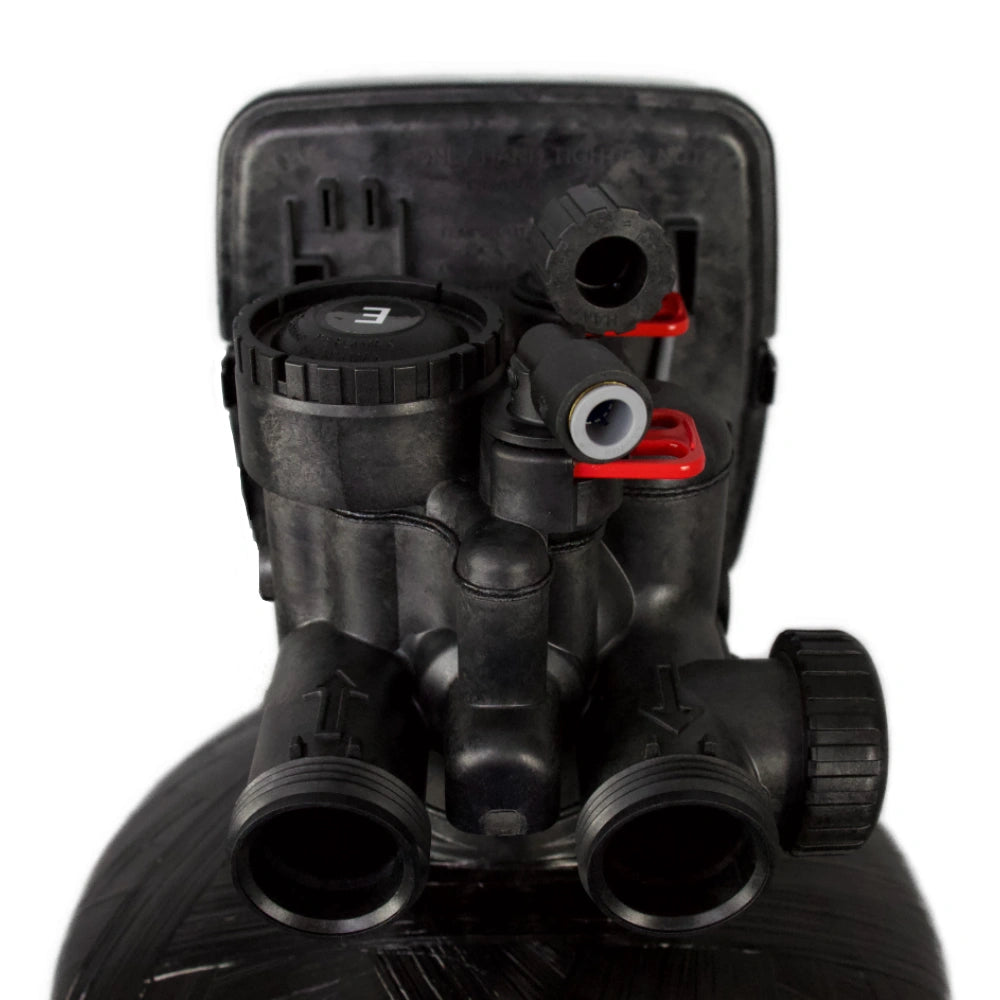

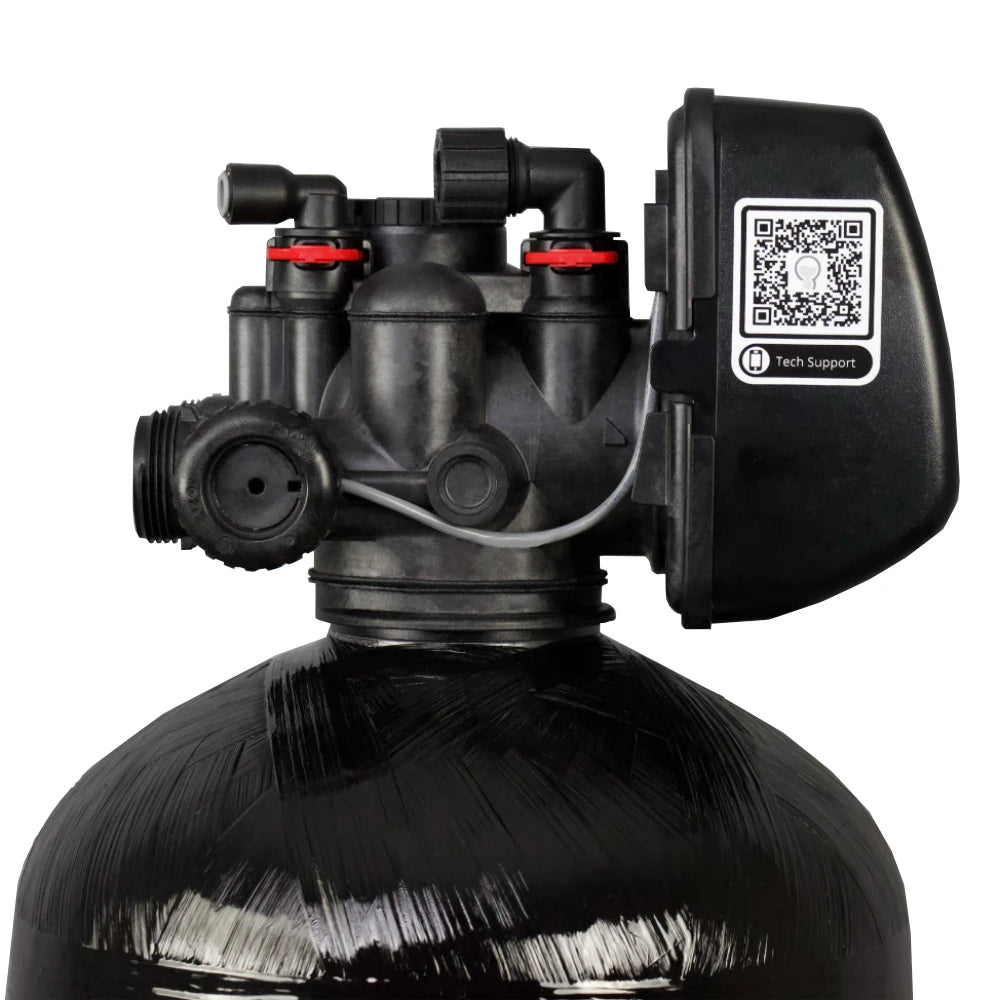

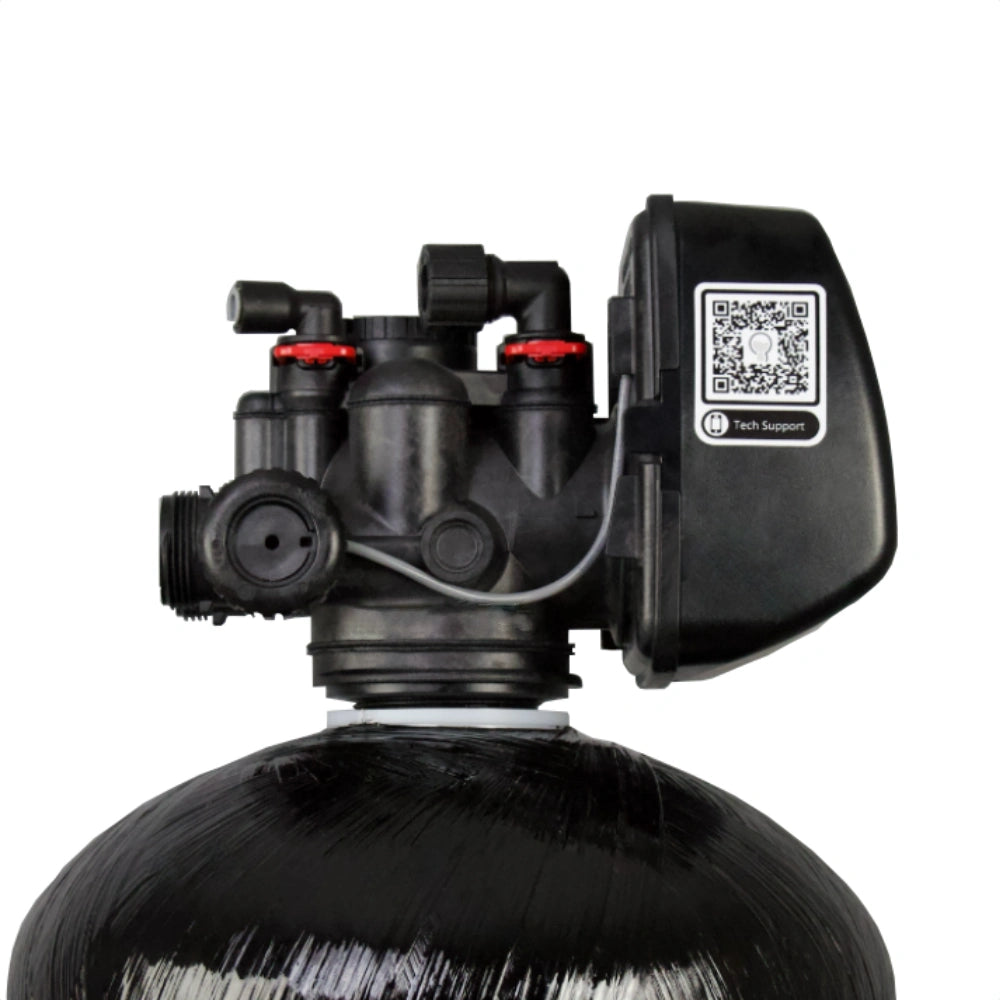

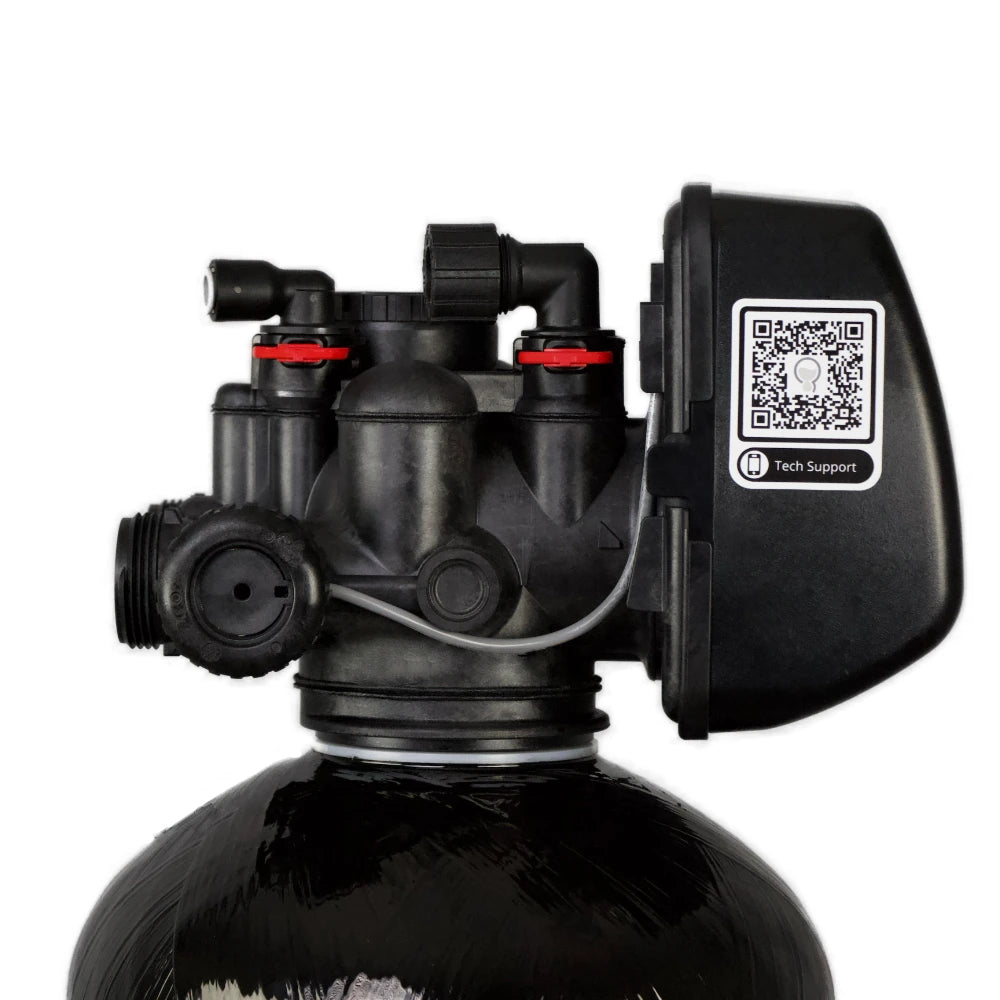

• Clack WS1 valve with digital controls
• Fiberglass resin tank (black)
• Bypass valve
• Brine tank (black)
• Brine tank safety float
• Top basket (prevents loss of resin)
• 1" threaded male plumbing connectors
• Brine Line

• 5 years top-to-bottom warranty

This warranty is for manufacturer's defects only. Certain water softener components, such as the main piston, seal & spacers, and the brine valve will experience wear and tear during normal softener usage and may not be covered. Resin that has experienced unusual application conditions may not be covered. See water softener warranty details here.
