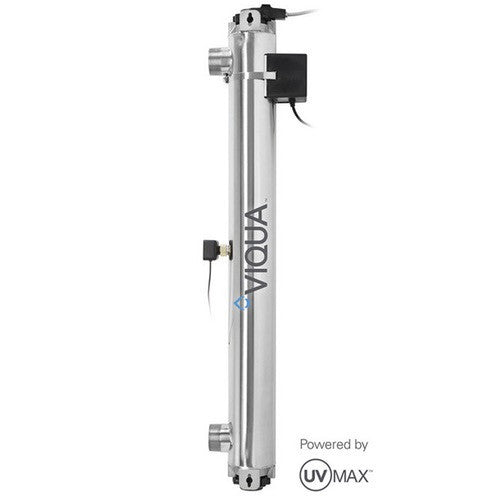

Viqua UVMax PRO 50 USEPA UV System (660003-R)
7,404.00
660003-R
Description
Viqua UVMax PRO 50 (660003-R) is a USEPA-validated water disinfection system ideally suited for public drinking water applications. Features amalgam lamp technology and intuitive user interface.
Resources
Tech Specs
- Flow Rate: 50 U.S. GPM with integrated flow restrictor (based on 95% UV Transmittance)
- Installation Location: On main water line (Point of Entry)
- Installation Orientation: Vertical Only
- Plumbing Connectors: 2" Male NPT
- Chamber Material: 316L Stainless Steel
- Dimensions: Chamber 41” x 4” Power Supply 13" x 6.5"
- Required Accessories: 5 Micron Pre-Filter
- Water Hardness: Suggested less than 7 grains per gallon (GPG)
- Water Iron Level: Suggested less than 0.3 ppm (mg/L)
In the Box
- 316 Stainless Steel Chamber
- Ultraviolet Lamp
- Quartz Sleeve
- UV Controller / Power Supply
- UV Sensor
- Flow Restrictor
- Cool Touch Kit
- Owners Manual
Warranty
- Lamp/Sleeve - 1 year
- Power Supply - 5 years
- UV Chamber - 10 years
