  • Max Flow Sediment Cartridge Filter System

    MAXSED-3/4

    Inlet/Outlet

    Description

    The Max Flow Sediment Filter system uses a genuine Pentek® filter housing and DGD-5005-20 dual gradient filter cartridge to remove large amounts of suspended material down to 5-microns in size. Maintains excellent flow characterisics and resists pressure loss even with high dirt loading. Great for large homes or any application using a surface water source.

    Tech Specs

    • female threaded inlet/outlet
    • 5-micron nominal rated cartridge
    • cartridge is approximately 20" x 4.5" diameter

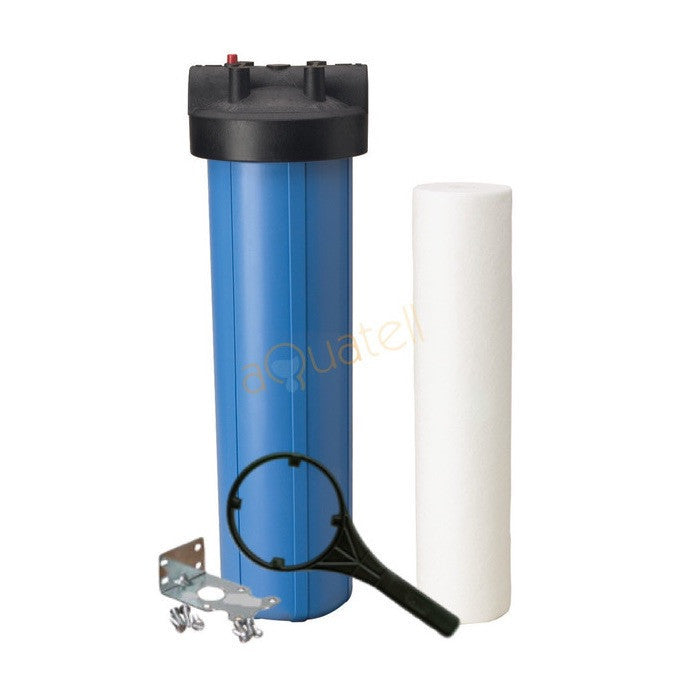

    In the Box

    • 20" Pentek® Big Blue Filter Housing with Pressure Relief Valve
    • Pentek® DGD-5005-20 Filter Cartridge
    • Steel Mounting Bracket and Screws
    • Filter Wrench
