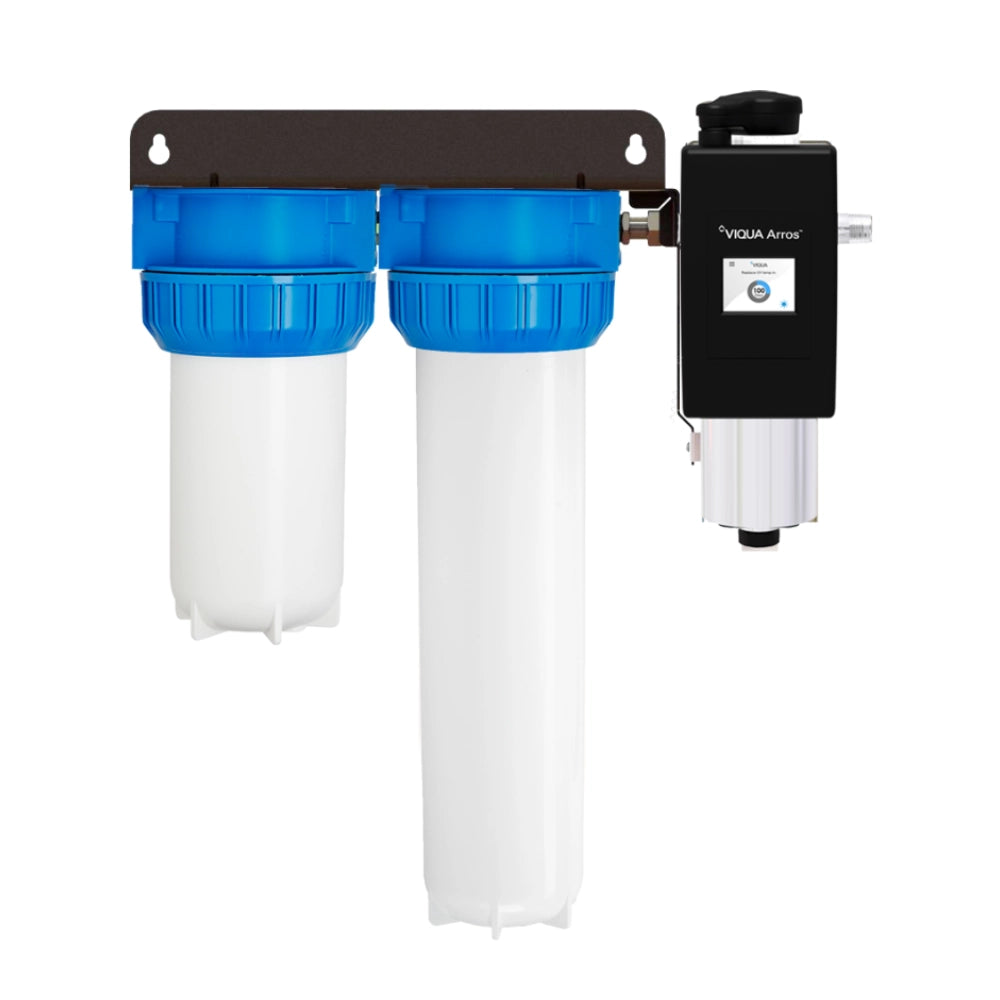

Viqua Arros 9-IHS12 Whole Home UV Water Treatment System

• For whole-home residential applications requiring UV disinfection and pre-filtration in one system
• Destroys micro-organisms in drinking water (bacteria, viruses, cysts)
• Treats water up to 9 GPM flow rate (at 30 mJ/cm² standard dose)
• Integrated 10″ sediment and 20″ carbon pre-filters built into a single unit
• Ships from Canada!

The Viqua Arros 9-IHS12 is a whole home UV water treatment system treating up to 9 GPM and is designed to protect your water from bacteria, viruses, and other biological threats. Features an LCD touchscreen, Stream™ technology, and PolyProtect™ shield for easy, reliable installation.

• Flow Rate: 9 GPM (30 mJ/cm²), 17 GPM (16 mJ/cm²), 7 GPM (40 mJ/cm²)
• Electrical:25W lamp, 35W power consumption, 100–240V / 50–60Hz, 1.5A max current
• Operating Limits:100 psi max pressure, 2–40°C
• Chamber & Connections:304 stainless steel, 11.2″ × 4.0″ chamber, 1″ FNPT inlet / 3/4″ FNPT × 1″ MNPT combo outlet
• Overall Dimensions:24.95″ × 27.5″ × 9.0″
• Shipping Weight:46 lbs
• Sediment cartridge: CMB-510-HF
• Carbon cartridge: C2-02PB

Owner's Manual Viqua Arros 22-IHS22 (English)

Manuel du propriétaire Viqua Arros 22-IHS22 (Français)

• 1 x Viqua Arros 9-IHS12 UV System (chamber + pre-mounted controller)
• 1 x Integrated 10" high-flow sediment filter housing
• 1 x Integrated 20" carbon filter housing
• 1 x CMB-510-HF sediment cartridge (pre-installed)
• 1 x C2-02PB carbon cartridge (pre-installed)
• 1 x Steel mounting bracket
• 1 x Drain plug
• 1 x VA09LU lamp unit (pre-installed)

• UV Chamber — 10-Year Limited Warranty
  The UV chamber is covered against defects in materials and workmanship for ten years from the date of purchase.
• Electrical & Hardware Components (Controller) — 3-Year Limited Warranty
  The controller and all hardware components are covered against defects for three years from the date of purchase.
• Lamp, Sleeve & UV Sensor — 1-Year Limited Warranty
  The VA22LU lamp, quartz sleeve, and UV sensor are covered for one year from purchase.
