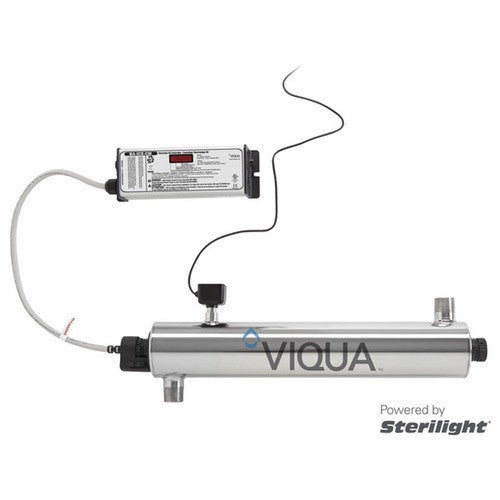

Viqua UVMax VH410M UV System

• Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications
• Capable of handling up to 18 gallons per minute (GPM)
• Inactivates harmful microorganisms including Cryptosporidium, Giardia, and E. Coli
• State of the art UV sensor technology to give you real time performance feedback, for added peace of mind
• The constant current feature ensures stable UV lamp output, regardless of power fluctuations
• Audible lamp replacement reminder and countdown timer with digital display. Controller will also go into alarm if the lamp fails
• High UV output lamp technology allows for a smaller footprint, while maintaining the same UV performance as a longer chamber
• High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours)

• Certified by NSF International under CSA B483.1 and NSF/ANSI 55, for disinfection performance - (Class B)
• Electrical Safety: UL certified for the U.S. and Canada

The Viqua UVMax VH410M UV System delivers outstanding whole-house water disinfection performance and excellent value, especially for larger homes, cottages or point-of-entry applications. Engineered to treat up to 18 GPM (gallons per minute) while maintaining a robust 30 mJ/cm² dose, this advanced UV system effectively inactivates harmful microorganisms such as Cryptosporidium, Giardia and E. coli. The VH410M features a built-in UV sensor that provides real-time feedback on system performance, along with a constant-current design to stabilize lamp output during power fluctuations. An audible lamp replacement reminder, countdown timer display, and automatic alarm upon lamp failure enhance reliability and peace of mind. Its compact high-output lamp design offers top-tier UV performance in a smaller footprint. The unit carries NSF/ANSI 55 disinfection certification and is UL certified for use in Canada and the U.S. With minimal space requirements, 3/4″–1″ connection sizes, and a durable 10-year chamber warranty, the Viqua VH410M is a powerful, high-efficiency solution for whole-home water safety.

• 34 GPM @ 16mJ/cm2, 18 GPM @ 30mJ/cm2, 14 GPM @ 40mJ/cm2
• Dimensions: 23 1/2″ x 3 1/2″ (59.6 cm x 8.9 cm)
• Shipping Weight lbs (kg): 17 lbs (7.7 kg)
• Connection Size: 3/4″ – 1″ COMBO NPT (/2B – BSP)
• Power Consumption: 60W
• Input Voltage: 100–240 V (50/60 Hz)
• Maximum Operating Pressure: 125 psi (8.62 bar)
• Influent Water Temperature: 2 – 40 °C (36 – 104 °F)

• Viqua VH410M Manual
• Viqua VH410M Spec Sheet

• 1 x Viqua UVMax VH410M UV System

• Lamp/Sleeve - 1 year
• Electronics - 5 years
• UV Chamber - 10 years
