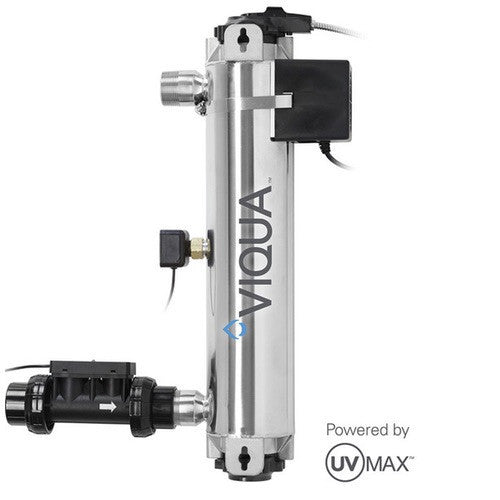

Viqua UVMax PRO 10 UV System (650647)

• Flow Rate: 10 GPM
• Perfect for a wide range of large homes or light commercial applications including, small businesses, hospitals, dentist offices, etc.
• Uses new, market leading flow-meter / UV sensor combination provides real-time UV dose
• Features countdown timer with digital display and audible lamp change reminder for ease of maintenance
• Features Cool-Touch fan technology to help reduce the temperature within the chamber to prevent overheating
• Features a solenoid valve that will stop the flow of water through the chamber should the UV performance fall below a safe level

• Certified by NSF International under NSF/ANSI 55, for disinfection performance - (Class A)
• Electrical Safety: UL certified for the U.S. and Canada

The Viqua PRO 10 (650647) is an NSF/ANSI 55 Class A certified ultraviolet disinfection system engineered to deliver reliable, high-intensity UV treatment for potable water. With a treatment capacity of 10 gallons per minute, this system provides safe, microbiologically clean water for larger residential homes or small regulated public facilities such as offices, schools, or medical buildings. Built for consistent performance, the PRO 10 features a robust stainless-steel reactor chamber, an intuitive control interface with system diagnostics, and a UV intensity monitor to ensure optimal disinfection at all times. Designed and tested for compliance with the most stringent Class A standards, the PRO 10 effectively inactivates bacteria, viruses, and protozoa, making it an excellent choice for applications requiring dependable, continuous protection of drinking water quality.

• Flow Rate: 10 U.S. GPM with integrated flow restrictor
• Installation Location: On main water line (Point of Entry)
• Installation Orientation: Vertical Only
• Plumbing Connectors: Combo 1.25" Male NPT / 1" Female NPT
• Chamber Material: 316L Stainless Steel
• Dimensions: Chamber 22” x 4” Power Supply 13" x 6.5"
• Required Accessories: 5 Micron Pre-Filter
• Water Hardness: Suggested less than 7 grains per gallon (GPG)
• Water Iron Level: Suggested less than 0.3 ppm (mg/L)

• Viqua PRO 10 Manual
• Viqua PRO 10 Spec Sheet
• Viqua PRO 10 Performance Data Sheet
• Viqua PRO 10 Replacement Controller Instruction Sheet
• Viqua PRO 10 Replacement Lamp & Sleeve Instruction Sheet

• 316 Stainless Steel Chamber
• Ultraviolet Lamp
• Quartz Sleeve
• UV Controller / Power Supply
• UV Sensor
• Flow Restrictor
• Cool Touch Kit
• Owners Manual

• Lamp/Sleeve - 1 year
• Power Supply - 5 years
• UV Chamber - 10 years
