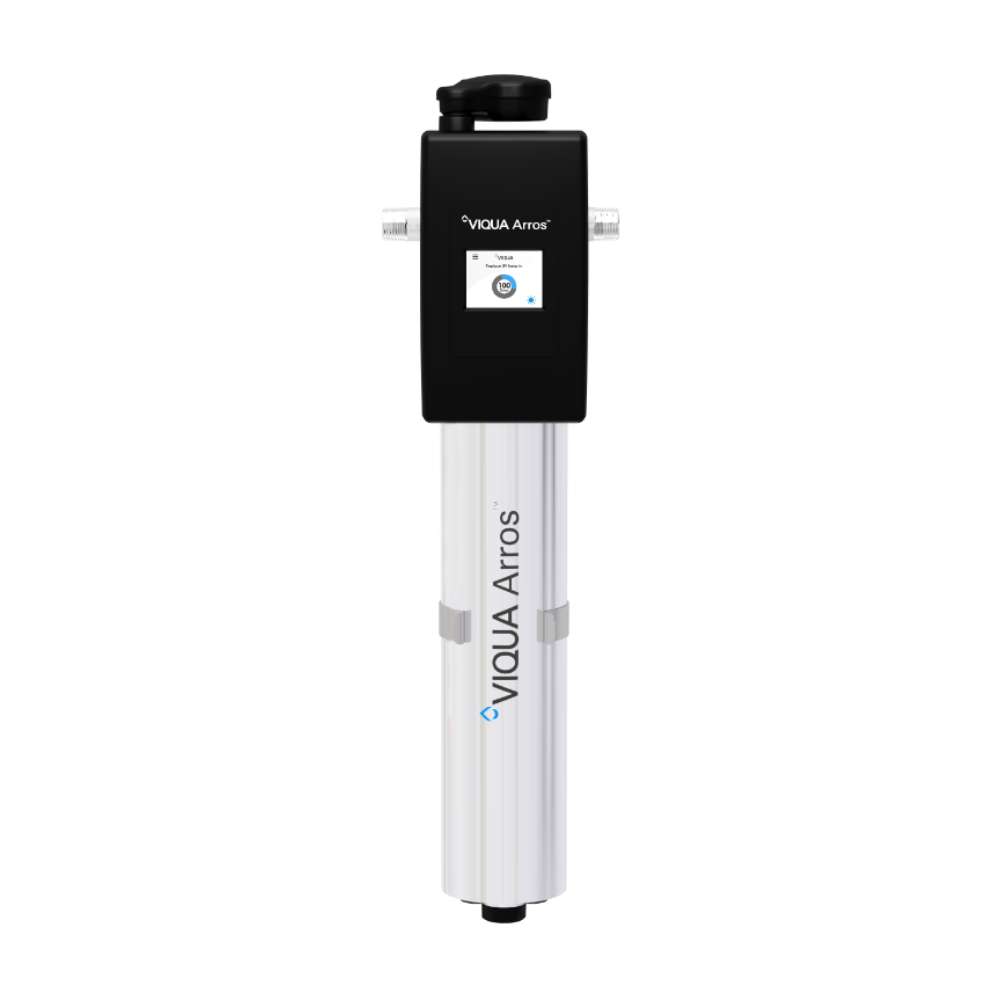

Viqua Arros 22 Whole Home UV Water Treatment System

• For whole-home residential applications requiring UV disinfection
• Destroys micro-organisms in drinking water (bacteria, viruses, cysts)
• Treats water up to 22 GPM flow rate (at 30 mJ/cm² standard dose)
• Smart LCD controller with Stream™ lamp-life tracking for simple maintenance

The Viqua Arros 22 is a whole home UV water treatment system treating up to 2 GPM and is designed to protect your water from bacteria, viruses, and other biological threats. Features an LCD touchscreen, Stream™ technology, and PolyProtect™ shield for easy, reliable installation.

• Flow Rate: 22 GPM (30 mJ/cm²), 42 GPM (16 mJ/cm²), 16 GPM (40 mJ/cm²)
• Electrical: 52W lamp, 60W power consumption, 100–240V / 50–60Hz, 1.5A max current
• Operating Limits: 125 psi max pressure, 2–40°C
• Chamber & Connections:304 stainless steel, 22.5″ × 4.0″ chamber, 1″ MNPT / 3/4″ FNPT ports
• Shipping Weight:18 lbs
• Replacement Parts:VA22LU lamp

Viqua Arros Manual - English · Viqua Arros Spec Sheet - English · Manuel d'utilisation Viqua Arros - français · Fiche Technique Viqua Arros - français

• 1 x Viqua Arros 22 UV System (chamber + pre-mounted controller)
• 1 x Steel mounting bracket
• 1 x Drain plug
• 1 x VA22LU lamp unit (pre-installed)

• UV Chamber — 10-Year Limited Warranty
  The UV chamber is covered against defects in materials and workmanship for ten years from the date of purchase.
• Electrical & Hardware Components (Controller) — 3-Year Limited Warranty
  The controller and all hardware components are covered against defects for three years from the date of purchase.
• Lamp, Sleeve & UV Sensor — 1-Year Limited Warranty
  The VA22LU lamp, quartz sleeve, and UV sensor are covered for one year from purchase.
