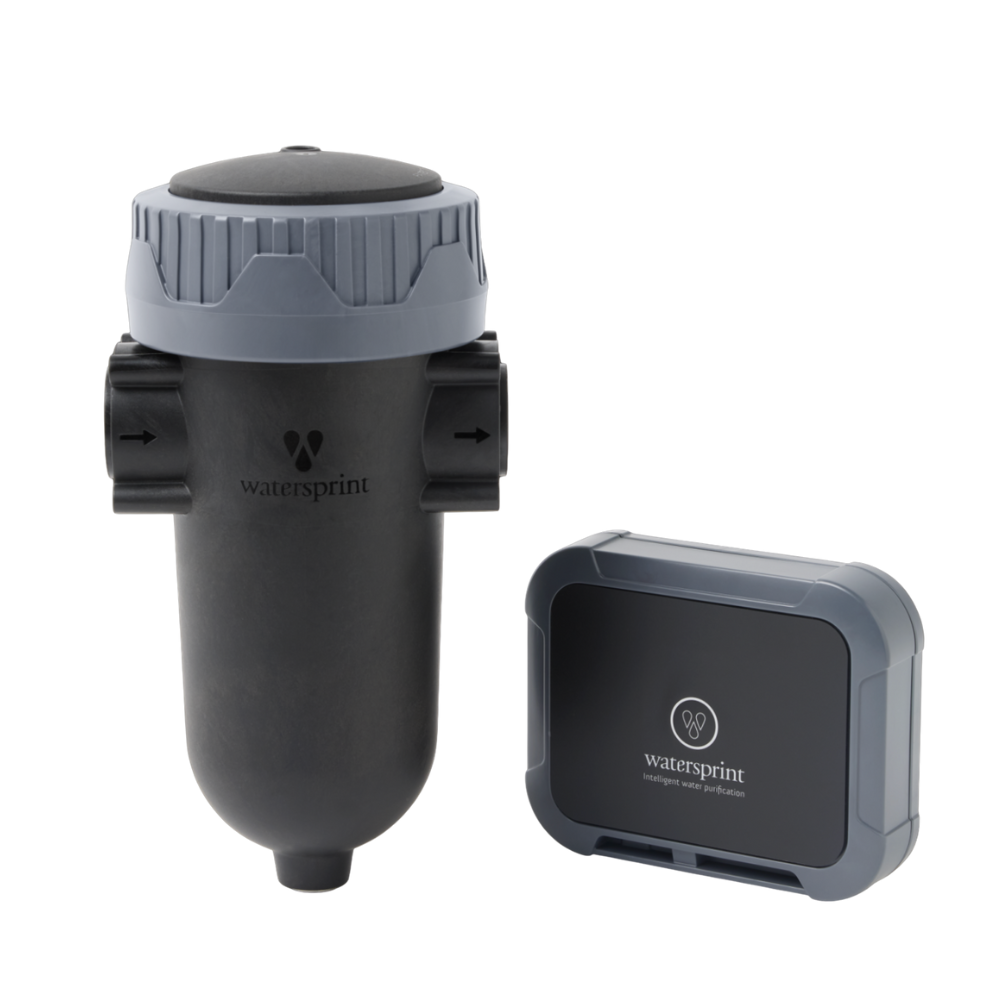

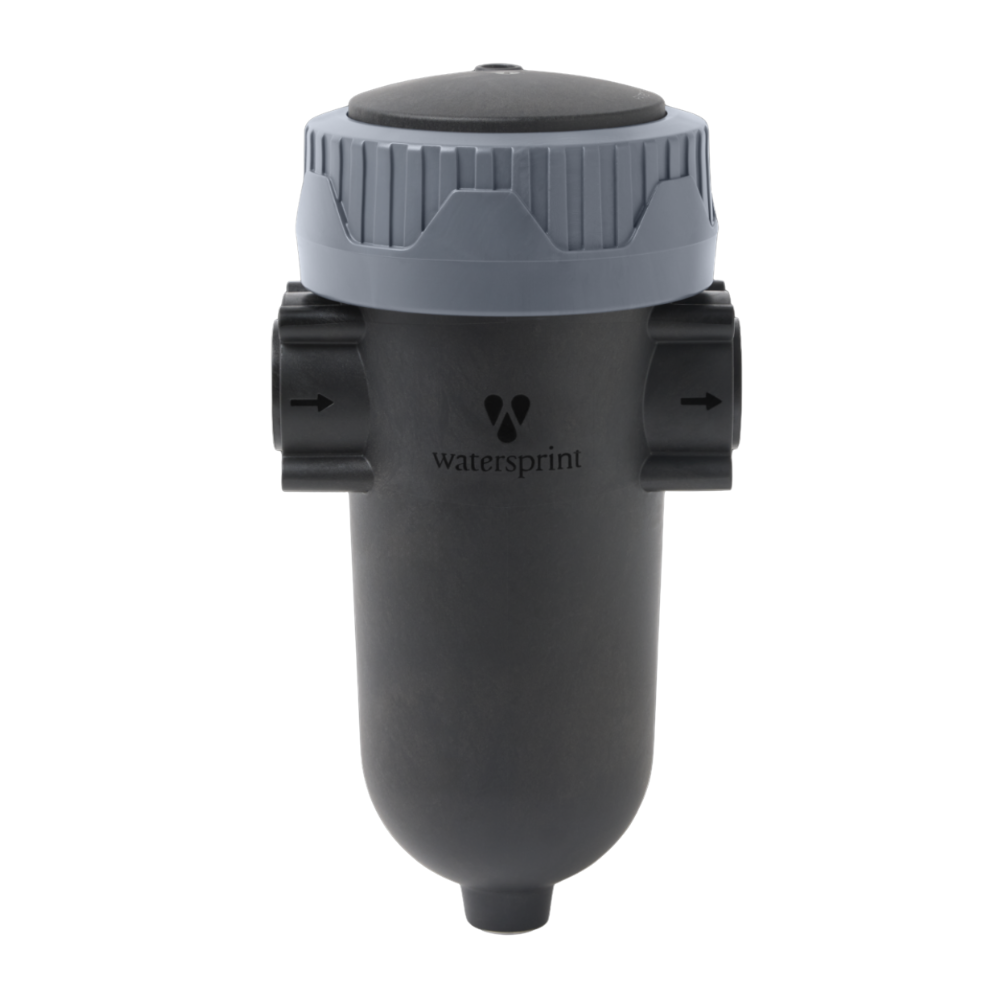

WaterSprint Core® 40 UVC LED UV Purification System

• Watersprint Core® 40 eliminates viruses, bacteria, and pathogens
• 10 GPM flow rate for whole home applications
• LED technology has lowest total cost of ownership
• 3000 active hour lamp life (4 - 5 years in most applications)
• Very compact design for easy installation

• NSF/ANSI 55 and NSF/ANSI 372 certified: Verified to meet strict safety and performance standards
• RoHS, REACH, CE Certified: Complies with globally recognized regulations
• Mercury-Free: Safe for your home and environmentally responsible

The Watersprint Core® 40 is an advanced whole-home UVC LED water disinfection system that replaces traditional UV lamps with cutting-edge LED technology. It delivers powerful, mercury-free disinfection with minimal maintenance, exceptional energy efficiency, and long-term reliability. The compact design makes installation simple in both new and existing plumbing systems. Total cost of ownership is low due to the infrequent lamp changes required.

• Flow rate 16 mJ/cm2 at 95 % UVT @ 254 nm - 15.8 GPM (60 l/min)
• Flow rate 30 mJ/cm2 at 95 % UVT @ 254 nm - 10.6 PGM (40 l/min)
• Automatic Lamp Start
• Power consumption in operation - 52W
• Input rating - 100-240 VAC, 50/60 Hz
• Working Pressure - 10 bar
• Designed & Manufactured in Sweden

• Watersprint Core 40 Manual
• Watersprint Core 40 Product Sheet
• Watersprint Core 40 Technical Data Sheet
• Watersprint Core 40 - Installation Video Guide
• Watersprint Core 40 - Introduction Video
• UVC LED Technology - More Information

• 1 x Watersprint Core® 40 LED CUV disinfection unit
• 1 x Ring wrench, wall mounting bracket
• 4 x Mounting screws
• 1 x System Controller module
• 1 x Manual & Instruction Sheet
• 1 x Inline flow sensor
• Power Adapter

Watersprint Core® has a 2-year guarantee for LED and electrical components, and an 8-year guarantee for other components, on condition that product installation and maintenance have been carried out in accordance with the instructions in the user manual.
