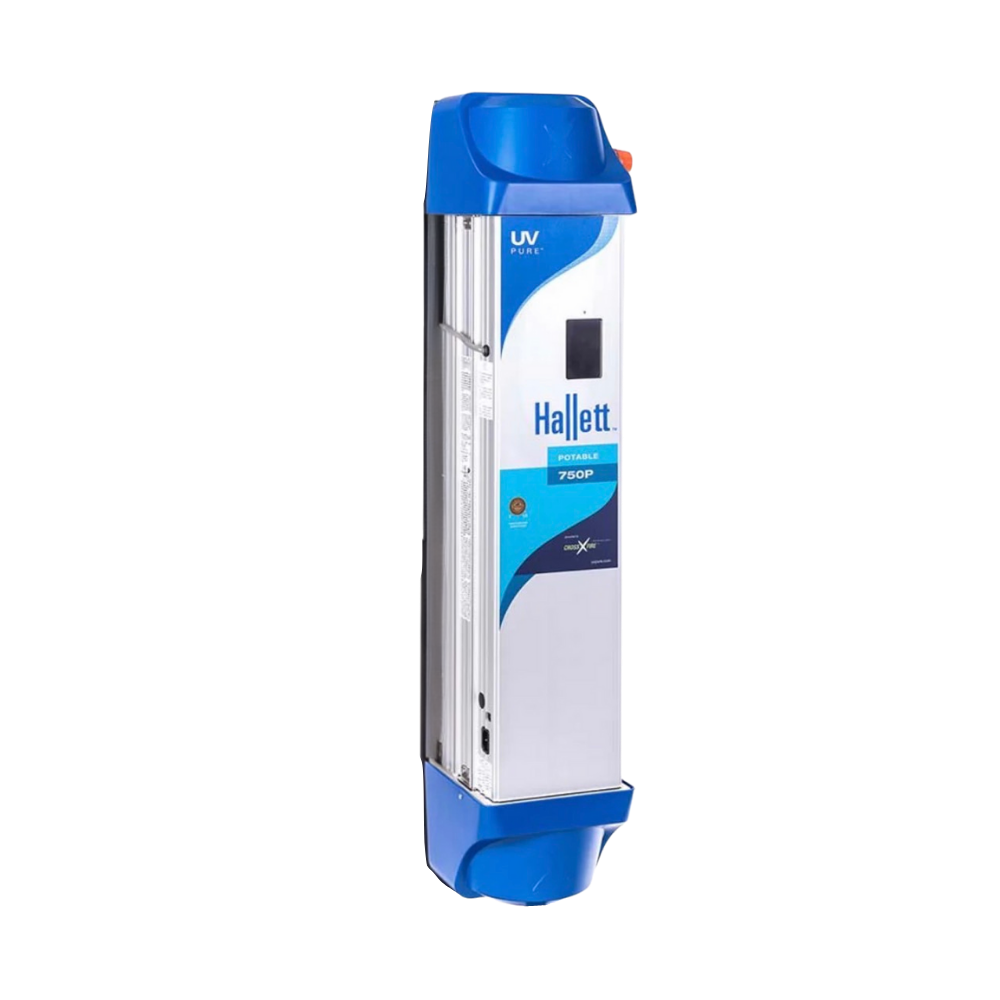

UV Pure Hallet Potable 750P UV System

The UV Pure Hallett Potable 750P is a high-capacity ultraviolet disinfection system engineered for commercial and institutional potable water applications. It leverages UV Pure’s industry-recognized Crossfire® Technology, which uses a dual-lamp, dual-sensor architecture to deliver consistent UV dose and real-time performance validation. This approach supports reliable microbial inactivation even under fluctuating flow and water quality conditions—making it suitable for environments where reliability and compliance are critical.

Unlike traditional “single-pass” UV systems, the 750P continuously monitors performance parameters and automatically responds to changing influent conditions, triggering alarms if disinfection performance deviates from expectations. Its self-cleaning quartz sleeve system mitigates mineral fouling on hard water supplies, reducing manual maintenance and minimizing downtime without chemical cleaning. A compact vertical housing and integrated control package create a clean installation footprint that simplifies system integration.

The 750P is commonly deployed in commercial buildings, remote and decentralized facilities, campuses, health care and institutional settings, food service, and potable distribution points where continuous disinfection and regulatory confidence are essential.

• Maximum Flow Rate: Up to 40 US gpm (151 L/min)
• UV Dose: 30–40 mJ/cm²
• UV Transmittance (UVT): 50–95%
• Water Hardness: Max 855 mg/L (50 gpg)
• Iron (Fe): Max 3 mg/L (3 ppm)
• Operating Temperature (air & water): 34–104°F (1–40°C)
• Water Pressure: 5–100 psig (34–690 kPa)
• Air Relative Humidity: Max 70%
• Input Voltage: 120 V AC, 50/60 Hz
• Power Consumption: 222 W (nominal)
• Dimensions (H × W × D): 40.4 × 9.6 × 8.6 in (1026 × 244 × 218 mm)
• Weight (Dry): 34 lb (15.5 kg)
• Weight (Wet): 38 lb (17.2 kg)
• Wetted Materials: Anodized aluminum & 316 stainless steel
• Body Configuration: Double door, side hinged
• Inlet/Outlet Porting: 1" MNPT stainless steel

• UV Pure Manual
• UV Pure Brochure
• UV Pure 750P Technical Data Sheet

• 1 x  UV Pure Potable 750P UV System

• 5-year limited warranty on structural, hardware & mechanical components
• 3-year limited warranty on electrical components & quartz sleeves
• 12-month limited warranty on lamp bulbs
• 1-year limited warranty on sensor probes
