  • UV Pure Hallet Potable 500P UV System

    Variant

    Notable System Differentiators

    • Canadian Engineered & Manufactured 🇨🇦
    • Self-cleaning quartz sleeves maintain UV performance in high-hardness water, allowing Hallett potable systems to be installed without softener pre-treatment

    Description

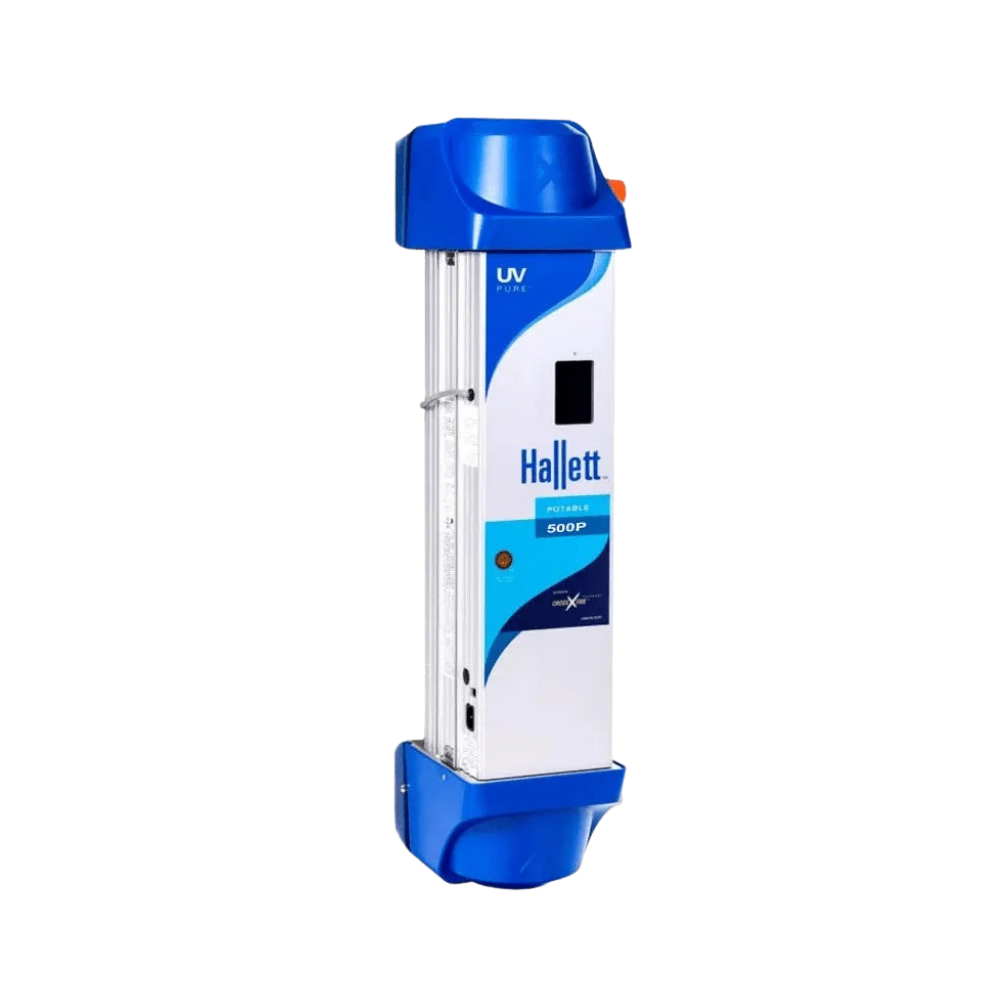

    The UV Pure Potable 500P is a high-performance ultraviolet disinfection system engineered for safe, reliable potable water treatment in residential, light commercial, institutional, and remote facility applications. Unlike conventional quartz-sleeve UV systems, it uses UV Pure’s proprietary Crossfire™ technology, which exposes water to UV from multiple directions for improved pathogen inactivation and real-world performance under challenging water conditions.

    The 500P is well-suited for properties that experience higher water demand, simultaneous fixture use, or intermittent peak usage. Its intelligent control architecture includes microprocessor-based monitoring, built-in diagnostics, and simplified front-panel access to reduce maintenance complexity and minimize downtime.

    Designed for the diverse water environments found across North America — including seasonal well water and hard municipal sources — the 500P provides dependable ultraviolet disinfection without chemicals, taste, odor, or byproducts. It can operate as a standalone potable treatment solution or as part of a multi-stage treatment train for more complex applications.

    Tech Specs

    • Max Flow Rate (single unit): 40 US gpm (151 L/min)
    • UV Dose: 30–40 mJ/cm²
    • UV Transmittance (UVT): 50–95%
    • Max Water Hardness: 855 mg/L (50 gpg)
    • Max Iron Concentration: 3 mg/L (3 ppm)
    • Operating Temperature (air & water): 34–104°F (1–40°C)
    • Operating Water Pressure: 5–100 psig (34–690 kPa)
    • Max Relative Humidity: 70%
    • Voltage Requirement: 120V AC, 50/60 Hz
    • Nominal Power Consumption: 196 W
    • Dimensions (H × W × D): 36.5″ × 9.6″ × 8.6″ (926 × 244 × 218 mm)
    • Weight: Dry: 32 lb (14.6 kg), Wet: 36 lb (16.3 kg)
    • Wetted Parts Compliance: NSF/ANSI/CAN 61 & 372 (≤ 73°F / 23°C)
    • Wetted Materials: Anodized aluminum & 316 stainless steel
    • Enclosure Style: Double door with side hinges
    • Inlet/Outlet Connections: 1″ MNPT stainless steel

    Product Resources

    In the Box

    • 1 x  UV Pure Potable 500P UV System

    Warranty Info

    • 5-year limited warranty on structural, hardware & mechanical components
    • 3-year limited warranty on electrical components & quartz sleeves
    • 12-month limited warranty on lamp bulbs
    • 1-year limited warranty on sensor probes


    Free Shipping over $250

    Ships from Canada

    Water Industry Experts

    Professional Support


    More Info

    About The Brand

    UV Pure® Technologies is a Canadian-founded leader in advanced ultraviolet water disinfection, with thousands of systems installed globally since the late 1990s that serve residential, commercial, industrial, public, and municipal applications. Their products leverage patented Crossfire Technology — dual UV lamps with 360° coverage and smart sensors — to deliver reliable, self-cleaning, high-performance UV disinfection even in challenging water conditions, and many systems are certified to stringent standards such as NSF/ANSI and EPA validations. Over the years the company has earned multiple industry awards for innovation and is trusted by engineers and water professionals worldwide for durable, quality solutions that make safe water a practical reality across potable, reuse, and wastewater treatment applications.

    Product Maintenance

    Regular maintenance ensures your UV system runs safely and effectively:

    • UV Lamp: Replace every 12 months (9,000 hrs)
    • Quartz Sleeve: Replace every 24 months or if damaged/un-cleanable
    • Quartz Sleeve Cleaning: At least once a year during lamp change
    • O-Rings/Seals: Inspect annually, replace as needed
    Lamp Care & Disposal

    Some UV lamps contain a small amount of mercury, similar to household fluorescent bulbs. When replacing your lamp, please dispose of it responsibly by following your local municipal or provincial recycling guidelines. Many communities offer Household Hazardous Waste (HHW) drop-off programs or recycling depots that accept UV lamps.

    ↳ Learn More: Canada’s Mercury and Lamp Strategy

    Looking for a Mercury-Free UV System?

    Check out our: Mercury-Free UV LED Systems
