    Home / All Products / Luminor RC-B56.01 Ballast/Controller

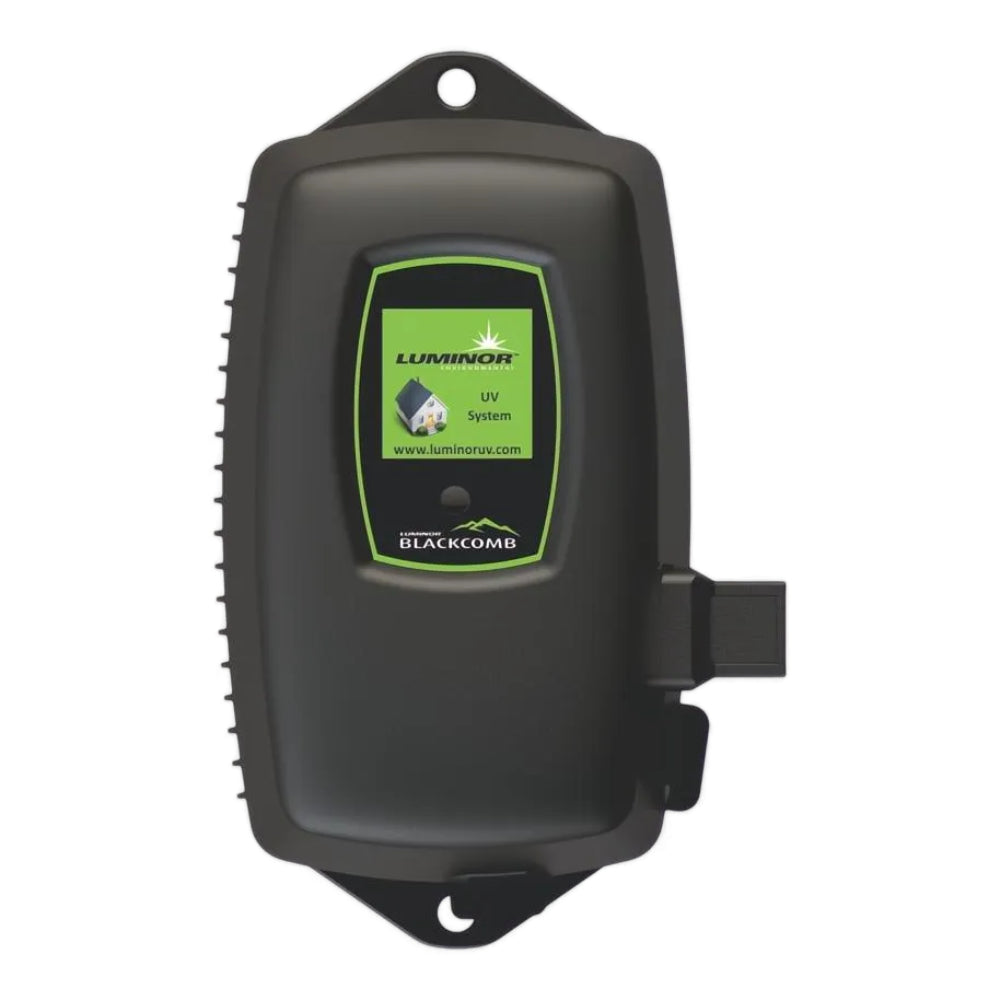

    Luminor RC-B56.01 Ballast/Controller official product image

    Luminor RC-B56.01 Ballast/Controller

    $719.99

    RC-B56.01

    Highlights

    • Compatibility: fits LB5-021, LB5-031, LB5-061, LB5-101, LB5-151, and LB5-201
    • Colour screen showing lamp life remaining, lamp expiration, UV intensity, and unsafe water alerts
    • Integrated expandability port (IEP) accepts UV sensors and optional modules
    • Constant current design holds lamp output steady regardless of power fluctuations
    • Universal 90-265V input, 50-60Hz
    • Not interchangeable with 4.1 series controllers
    • Ships from Canada!

    Safety & Compliance

    • Disconnect power before servicing the controller or opening the reactor
    • Grounded outlet only, GFCI recommended. Indoor installation only
    • Splash resistant, not waterproof. Water ingress voids the warranty
    • Do not substitute a 4.1 series controller. The RC-B56.01 fits Blackcomb 5.1 systems only
    • Use only Luminor lamps and sleeves. Third-party lamps will not deliver rated dose and void the warranty
    • Install per local electrical code. Many jurisdictions require a licensed electrician
    • Never operate the UV lamp outside the reactor. Direct UV-C exposure burns eyes and skin

    Description

    The Luminor RC-B56.01 is the replacement ballast and controller for the Blackcomb 5.1 line, fitting every model from the LB5-021 through the LB5-201. It features a colour display, a lamp age counter, audible and visual failure alarms, and an expandability port for optional sensors and modules.

    Tech Specs

    • Part Number: RC-B56.01 (North American, NEMA 5/15 plug)
    • Fits UV Models: LB5-021, LB5-031, LB5-061, LB5-101, LB5-151, LB5-201
    • Electrical Rating: 90-265V, 50-60Hz
    • Weight: 3.1 lbs (1.4 kg)
    • Other regional versions: RC-B56.02 (European CEE 7/7), RC-B56.03 (British BS 1363), RC-B56.04 (Australian/New Zealand AS/NZ 3112)

    Product Resources

    In the Box

    • 1 x Luminor RC-B56.01 Ballast/Controller

    Free Shipping over $250

    *Some exclusions apply.

    Ships from Canada

    Canadian-owned & operated

    Water Industry Experts

    for over two decades.

    Professional Support

    water questions? ask us!

    More Info

    About The Brand

    Luminor Environmental is a trusted Canadian manufacturer specializing in advanced ultraviolet (UV) water disinfection systems for residential, commercial, and industrial applications. With decades of expertise in UV technology and water treatment engineering, Luminor has earned a reputation for delivering reliable, high-performance solutions backed by rigorous testing and globally recognized certifications. Their systems are designed and assembled in Ontario, combining precision engineering, smart monitoring technology, and durable components to ensure safe, clean water in any environment.

    Product Maintenance

    Regular maintenance ensures your UV system runs safely and effectively:

    • UV Lamp: Replace every 12 months (9,000 hrs)
    • Quartz Sleeve: Replace every 24 months or if damaged/un-cleanable
    • Quartz Sleeve Cleaning: At least once a year during lamp change
    • O-Rings/Seals: Inspect annually, replace as needed
    Lamp Care & Disposal

    Some UV lamps contain a small amount of mercury, similar to household fluorescent bulbs. When replacing your lamp, please dispose of it responsibly by following your local municipal or provincial recycling guidelines. Many communities offer Household Hazardous Waste (HHW) drop-off programs or recycling depots that accept UV lamps.

    ↳ Learn More: Canada’s Mercury and Lamp Strategy

    Looking for a Mercury-Free UV System?

    ↳ Check out our: Mercury-Free UV LED Systems
