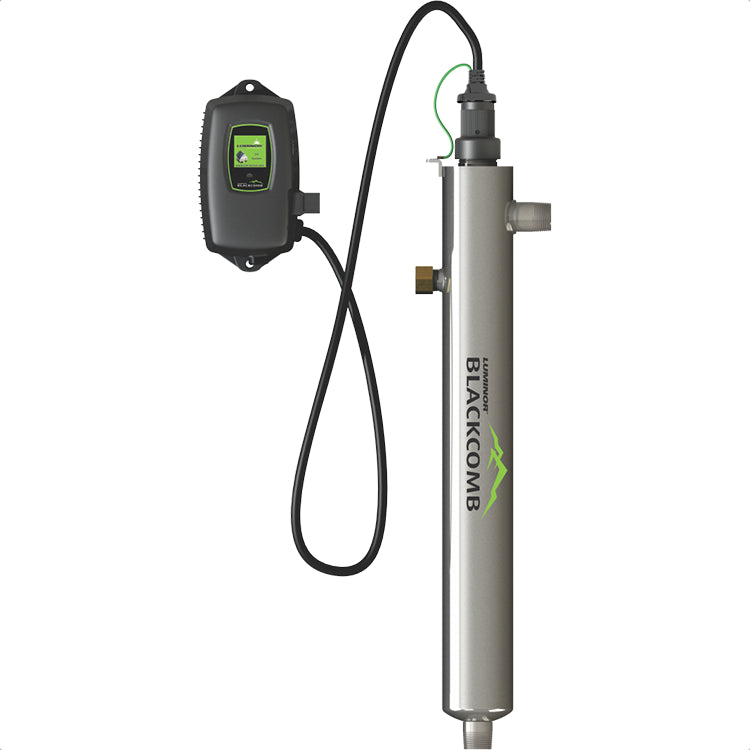

    Luminor Blackcomb 5.1 Ultraviolet (UV) System LB5-061

    Luminor Blackcomb 5.1 Ultraviolet (UV) System LB5-061

    $1,344.99

    LB5-061

    Highlights

    • Flow Rate: 4.4-11 gallons per minute (GPM), depending on required UV dose
    • Inactivates microorganisms including Cryptosporidium, Giardia, E. Coli, and Coliform
    • Colour screen controller with lamp age counter, audible and visual lamp failure alarm
    • Expansion port supports optional UV sensor, solenoid output, and 4-20 mA output modules
    • Constant current design holds lamp output steady regardless of power fluctuations
    • 304 stainless steel reactor, polished and passivated, designed to ASME pressure vessel standards
    • Single-ended reactor design allows lamp and sleeve replacement without draining the chamber
    • Suitable for whole-home point-of-entry water treatment
    • Ships from Canada

    Safety & Compliance

    • 304 stainless steel reactor, designed and manufactured to ASME pressure vessel standards
    • Reactor pressure rated to 150 psi (10 bar)
    • Rated flow performance based on 95% UV transmittance at end of lamp life

    Description

    The Luminor LB5-061 is rated for 6 gallons per minute (GPM) at the 30 mJ/cm2 industry standard dose, making it a good fit for cottages, cabins, and smaller homes. The 5.1 controller adds a colour display, an expansion port for optional modules, and support for a UV sensor, while sharing the same reactor, lamp, and sleeve as the 4.1 equivalent. Protect your water from bacteria, viruses, and cysts like Cryptosporidium and Giardia.

    Tech Specs

    • Flow Rate: 11 GPM @ 16mJ/cm2; 6 GPM @ 30mJ/cm2; 4.4 GPM @ 40mJ/cm2
    • Electrical: 90-265V / 50-60Hz
    • Power (Watts): 30W
    • Lamp Watts: 22W
    • Application: Point-of-Entry
    • Chamber Material: 304 Stainless Steel, A249 pressure rated tubing, polished and passivated
    • Reactor Dimensions: 2.5" x 21.3" (6.4 x 54.1 cm)
    • Controller Dimensions: 6.8" x 3.6" x 4" (171.5 x 92.1 x 102 mm)
    • Inlet Dimensions: 3/4" MNPT
    • Outlet Dimensions: 3/4" MNPT
    • Maximum Operating Pressure: 150 psi (10 bar)
    • Operating Temperature Range: 2-40C (36-104F)
    • Replacement Lamp: RL-470
    • Replacement Sleeve: RQ-470
    • Shipping Weight: 9.6 lbs (4.4 kg)

    Product Resources

    In the Box

    • 1 x Luminor LB5-061 UV System

    Free Shipping over $250

    *Some exclusions apply.

    Ships from Canada

    Canadian-owned & operated

    Water Industry Experts

    for over two decades.

    Professional Support

    water questions? ask us!

    More Info

    About The Brand

    Luminor Environmental is a trusted Canadian manufacturer specializing in advanced ultraviolet (UV) water disinfection systems for residential, commercial, and industrial applications. With decades of expertise in UV technology and water treatment engineering, Luminor has earned a reputation for delivering reliable, high-performance solutions backed by rigorous testing and globally recognized certifications. Their systems are designed and assembled in Ontario, combining precision engineering, smart monitoring technology, and durable components to ensure safe, clean water in any environment. Luminor's deep technical knowledge, commitment to innovation, and strong industry partnerships make them a leading authority in UV water purification worldwide.

    Product Maintenance

    Regular maintenance ensures your UV system runs safely and effectively:

    • UV Lamp: Replace every 12 months (9,000 hrs)
    • Quartz Sleeve: Replace every 24 months or if damaged/un-cleanable
    • Quartz Sleeve Cleaning: At least once a year during lamp change
    • O-Rings/Seals: Inspect annually, replace as needed
    Lamp Care & Disposal

    Some UV lamps contain a small amount of mercury, similar to household fluorescent bulbs. When replacing your lamp, please dispose of it responsibly by following your local municipal or provincial recycling guidelines. Many communities offer Household Hazardous Waste (HHW) drop-off programs or recycling depots that accept UV lamps.

    ↳ Learn More: Canada’s Mercury and Lamp Strategy

    Looking for a Mercury-Free UV System?

    ↳ Check out our: Mercury-Free UV LED Systems
