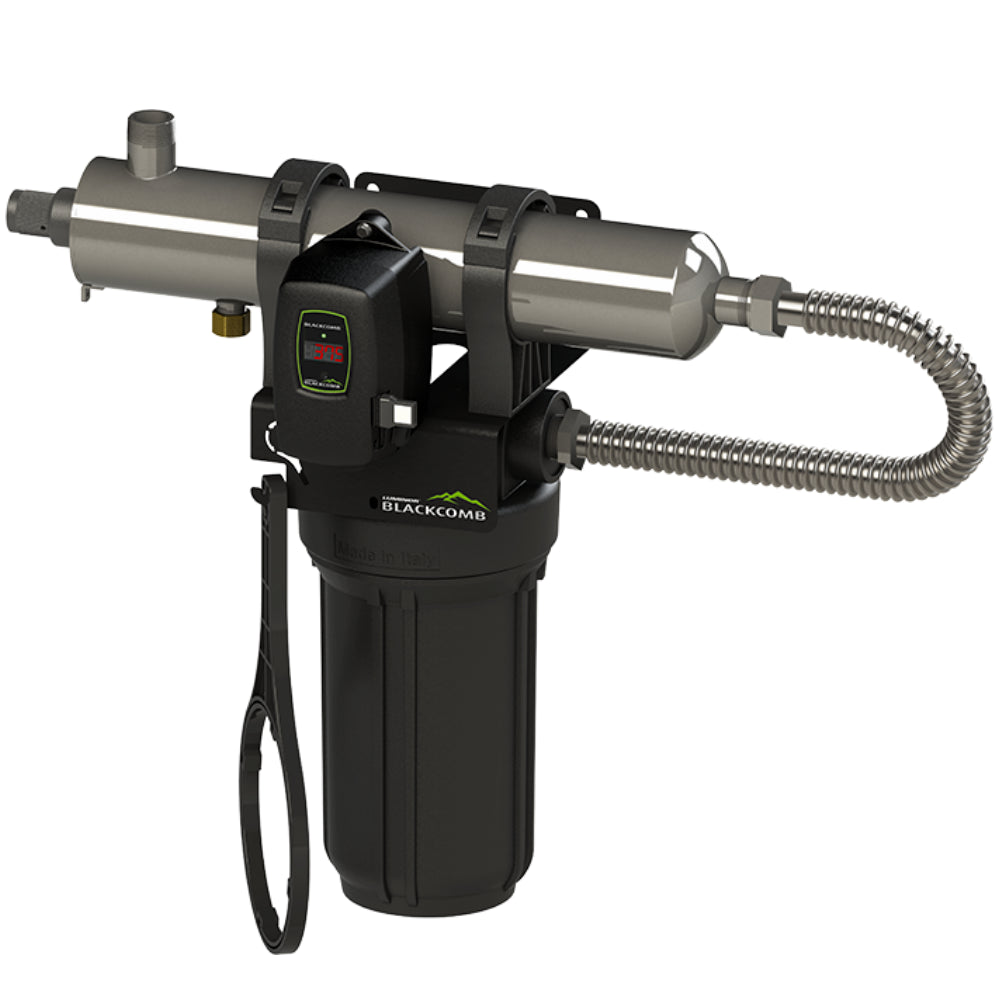

Luminor Blackcomb-HO 4.1 Trio Rack Ultraviolet (UV) System LBH4-Z222
$3,514.99
LBH4-Z222
Description
The Luminor LBH4-Z222 is a Blackcomb-HO 4.1 Trio rack system with three 20 inch filtration stages ahead of high-output UV disinfection: sediment, scale reduction, and high-capacity carbon. Rated for 15 gallons per minute at the 30 mJ/cm2 industry standard dose, it is the most comprehensive 4.1 rack configuration and suits water needing scale control alongside disinfection.
Resources
Tech Specs
- Flow Rate: 15 GPM @ 30mJ/cm2
- 1st Filter Housing: 20 inch, 5 micron sediment (LC-20S)
- 2nd Filter Housing: 20 inch, scale reduction (LC-20WS)
- 3rd Filter Housing: 20 inch, high-capacity carbon (LC-20AC)
- Electrical: 90-265V / 50-60Hz
- Power (Watts): 57W (48W @ 230V)
- Lamp Watts: 45W, high output, 10,000 hour rated life
- Chamber Material: 316L Stainless Steel, A249 pressure rated tubing, polished and passivated
- Reactor Dimensions: 3.5" x 20.0" (8.9 x 50.8 cm)
- Controller: RCHO-4.12
- Connection Size: 1" MNPT
- Operating Pressure Range: 10-100 psi (0.7-6.8 bar)
- Operating Temperature Range: 2-40C (36-104F)
- Replacement Lamp: RL-420HO / Replacement Sleeve: RQ-420
In the Box
- 1 x Luminor LBH4-Z222 Trio Rack UV System, pre-assembled
Warranty
- Reactor: Ten (10) years
- Electronics: Three (3) years
- UV Lamp: One (1) year
- Quartz Sleeve: One (1) year
This warranty is for manufacturer's defects only, and applies to the original purchaser. It does not cover damage from freezing, outdoor installation, water ingress into the controller, use of non-Luminor lamps or sleeves, or operation outside Luminor's published water quality limits.
