    Home / All Products / Luminor Blackcomb-HO 4.1 Rack Ultraviolet (UV) System LBH4-Z22

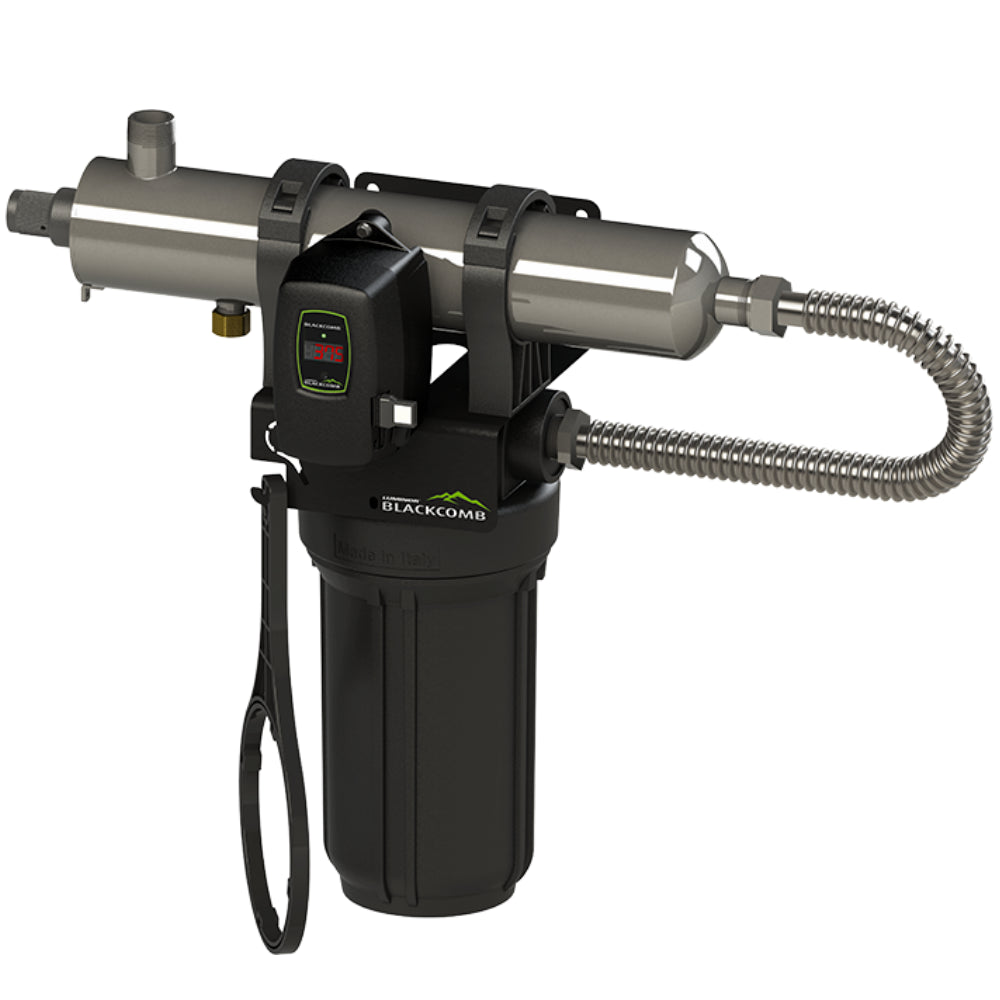

    Luminor Blackcomb-HO 4.1 Rack Ultraviolet (UV) System LBH4-Z22 product image

    Luminor Blackcomb-HO 4.1 Rack Ultraviolet (UV) System LBH4-Z22

    $3,514.99

    LBH4-Z22

    Highlights

    • Flow Rate: 15 gallons per minute (GPM) at the 30 mJ/cm2 industry standard dose
    • High-output (HO) UV lamp delivers higher flow from the same chamber length
    • Two 20 inch filtration stages plus UV on a single pre-plumbed bracket
    • 20 inch 5 micron sediment pre-filter (LC-20S) and 20 inch high-capacity carbon filter (LC-20AC)
    • Longest cartridge service intervals in the 4.1 rack line
    • Inactivates microorganisms including Cryptosporidium, Giardia, E. Coli, and Coliform
    • 316L stainless steel reactor, polished and passivated

    Safety & Compliance

    • 316L stainless steel reactor, A249 pressure rated tubing, designed to ASME pressure vessel standards
    • Operating pressure range 10-100 psi (0.7-6.8 bar)
    • Rated flow performance based on 95% UV transmittance at end of lamp life

    Description

    The Luminor LBH4-Z22 is the largest Blackcomb 4.1 rack system, pairing a high-output UV lamp with two 20 inch filtration stages: a sediment pre-filter and a high-capacity carbon filter. Rated for 15 gallons per minute at the 30 mJ/cm2 industry standard dose, the twin 20 inch housings give the longest service intervals in the 4.1 rack line.

    Tech Specs

    Product Resources

    In the Box

    • 1 x Luminor LBH4-Z22 Rack UV System, pre-assembled

    Free Shipping over $250

    *Some exclusions apply.

    Ships from Canada

    Canadian-owned & operated

    Water Industry Experts

    for over two decades.

    Professional Support

    water questions? ask us!

    More Info

    About The Brand

    Luminor Environmental is a trusted Canadian manufacturer specializing in advanced ultraviolet (UV) water disinfection systems for residential, commercial, and industrial applications. Their systems are designed and assembled in Ontario, combining precision engineering, smart monitoring technology, and durable components to ensure safe, clean water in any environment.

    Product Maintenance

    Regular maintenance ensures your UV system runs safely and effectively:

    • UV Lamp: Replace every 12 months (9,000 hrs)
    • Quartz Sleeve: Replace every 24 months or if damaged/un-cleanable
    • Quartz Sleeve Cleaning: At least once a year during lamp change
    • O-Rings/Seals: Inspect annually, replace as needed
    Lamp Care & Disposal

    Some UV lamps contain a small amount of mercury, similar to household fluorescent bulbs. When replacing your lamp, please dispose of it responsibly by following your local municipal or provincial recycling guidelines. Many communities offer Household Hazardous Waste (HHW) drop-off programs or recycling depots that accept UV lamps.

    ↳ Learn More: Canada’s Mercury and Lamp Strategy

    Looking for a Mercury-Free UV System?

    ↳ Check out our: Mercury-Free UV LED Systems
