AIO Iron Water Filter by Aqualux from Aquatell
Deals on Softeners, Whole Home Filters, Reverse Osmosis, and More

Softeners, Whole Home Filters, Reverse Osmosis, and More

Value Bundles + Limited Time Special Offers + Clearance Items... CLICK HERE TO VIEW!

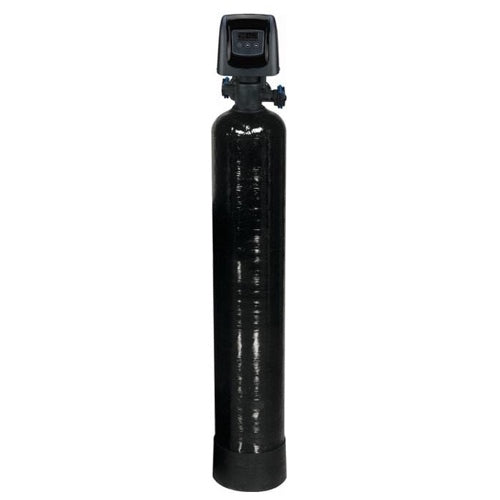

AIO Iron Water Filter by Aqualux

SKU: AQLX-1.0-5800-AB


See Special Deals and Offers... Click Here!

Free Shipping

Most Orders Over $149

Safe & Secure

Online Checkout

30 Day

Return Policy


The Aqualux AIO Iron filter is a safe, easy, and chemical-free way to remove massive amounts of iron and manganese from your rural water supply. Easily handling 15 ppm of combined iron / manganese, the Aqualux AIO system uses air to oxidize out these contaminants, traps them in the filter bed, and backwashes them out all automatically, all of which is controlled by the rugged and long-lived Fleck 5800AIO control valve. There's no better way to solve your iron and manganese problem.


Tech Specs

  • Birm media

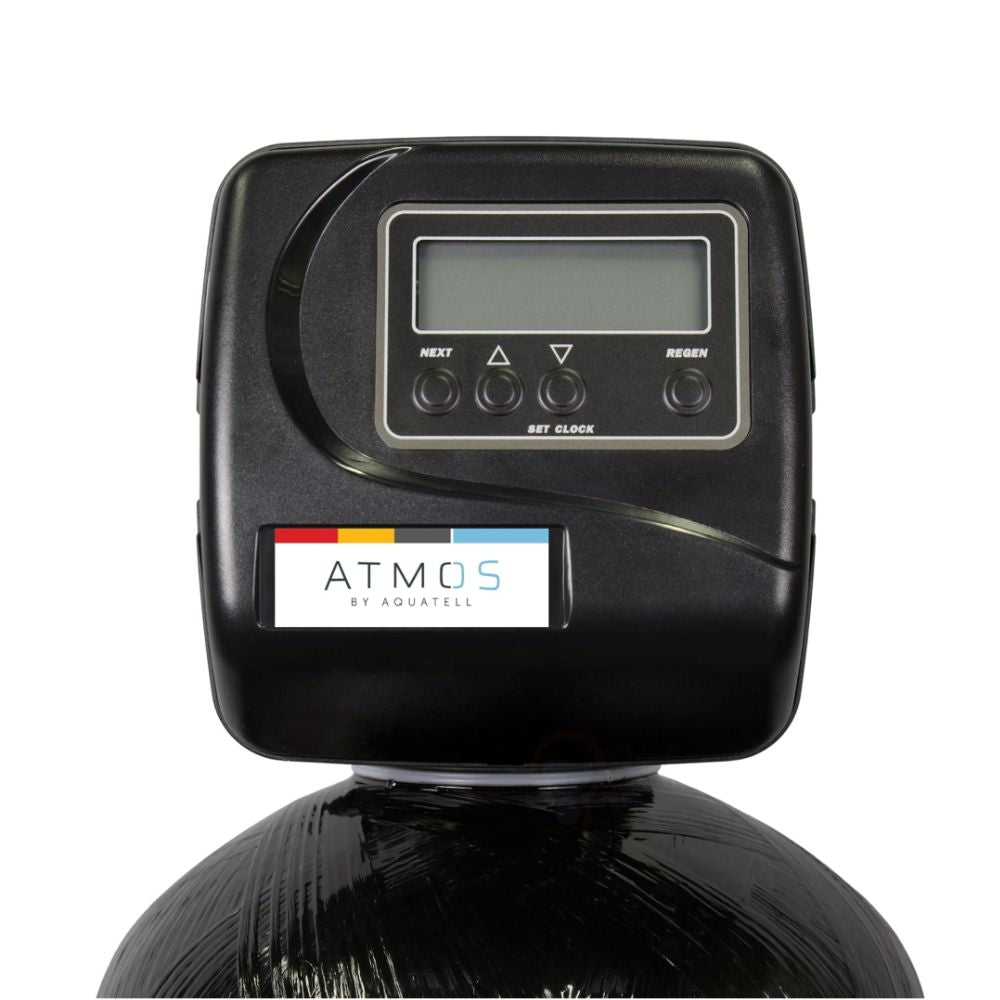

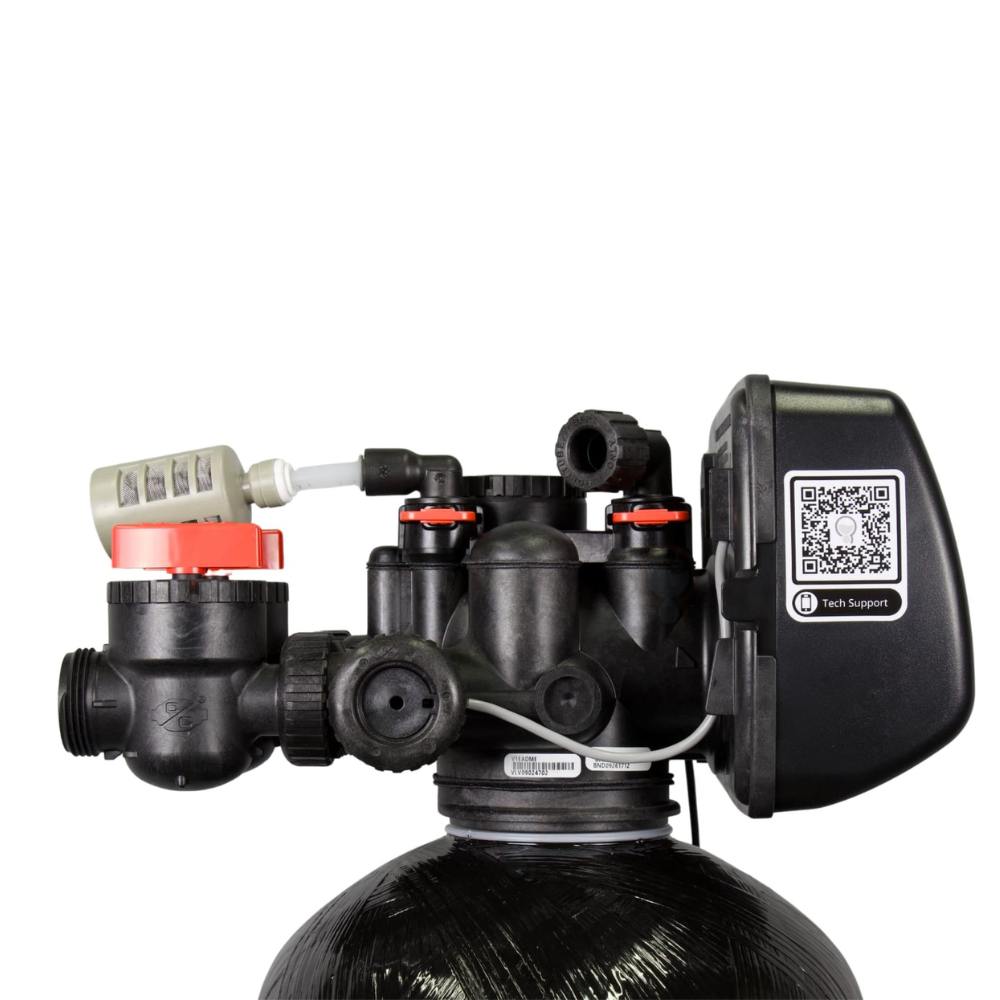

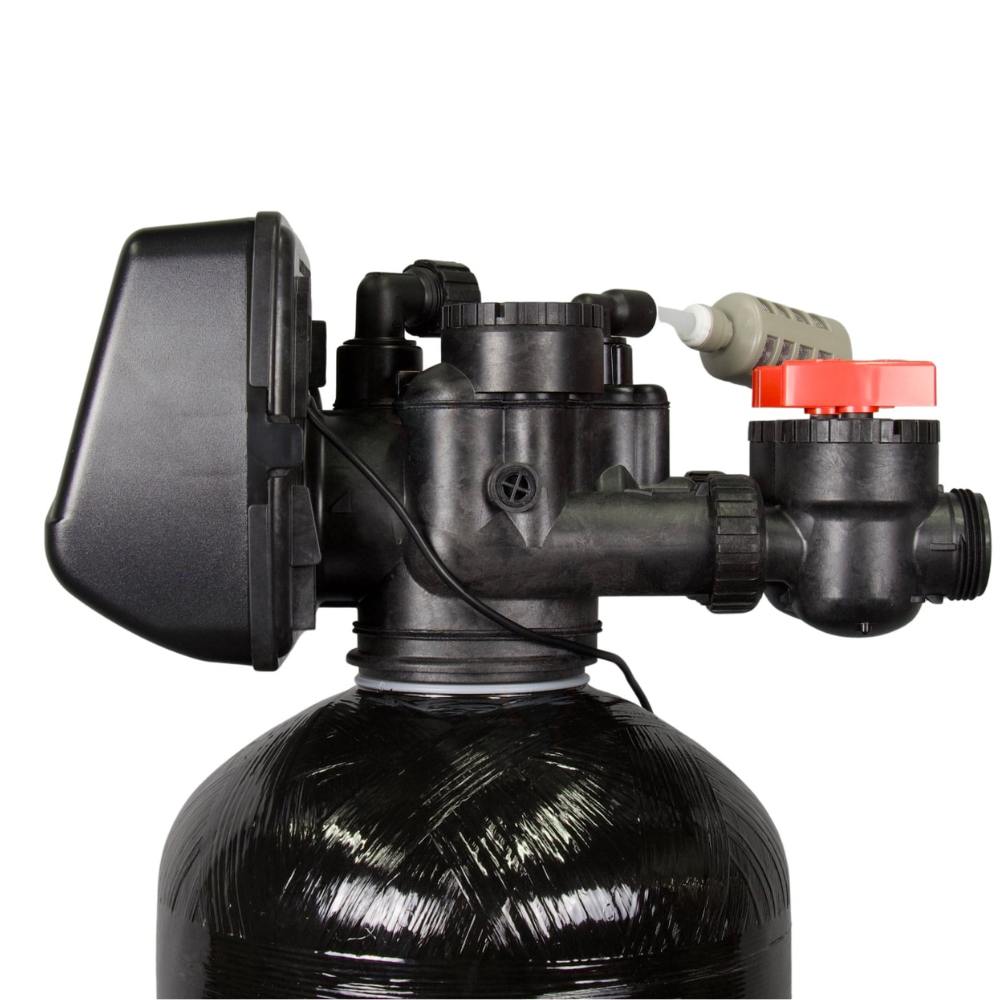

  • Fleck 5800AIO Control Valve
  • 4, 5, 6 gpm continuous service flow rate for 1.0 / 1.5 / 2.0 cubic foot sizes
  • 4, 5, 7 gpm backwash flow rate required for 1.0 / 1.5 / 2.0 cubic foot sizes
  • pH must be greater than 7.0
  • Max Iron + Manganese = 30.0 ppm
  • 3/4"  male threaded plastic plumbing connectors
  • should be supplied with 3/4" service (or larger)

In the Box

  • 1 x fully assembled AIO iron filter system


  • 3 years on control valve
  • 1 year on media

This warranty is for manufacturer's defects only. Certain control valve components, such a the main piston, seal & spacers, and the brine valve will experience wear and tear during normal usage of the softener and are not covered under the warranty.

Customer Reviews
4.4 Based on 7 Reviews
5 ★
4 ★
3 ★
2 ★
1 ★
Customer Photos
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
30 June 2022
Milan P.

Install problems

The bypass valves caused problems on install and the O rings that were installed are in the incorrect size and had to be changed out for ones that better fit. The bypass valves had to be put aside during the install and to complete the install could not be used due to the problems it caused. Have only had it installed for 2 days so no real review can be made on the difference around the house.

17 August 2021
Janine W.
Canada Canada

Awesome service

3rd party shipper broke our Water Filter and Reid with Aquatell dealt with it quickly and professionally. He was great! Highly recommended to anyone

27 March 2021
Chris H.
Canada Canada

All clear!

The install was simple and the AIO filter works perfectly to give me crystal clear water. No more annoying iron stains, odors or off taste. The filter has only been in service for one week so time will tell but I expect it should provide years of reliable service Fast delivery and GREAT SERVICE! Reid provided prompt and very knowledgeable expertise to help me select the correct filter and follow up to set up the programing.

Aquatell Canada AIO Iron Water Filter by Aqualux Review
23 February 2017
Ray D.

No Intructions

I have installed the unit, however there were no instructions on how to set it up. I called the support number and left a message but no one returned my call.

29 August 2016
Guy A.

AIO Iron Water Filter

Very good. Had a few minor issues during the installation, which I did myself. The written instructions are not too clear, at least for me. The videos helped somewhat. But it worked right the first time. It’s really not very complicated. We are on a private well, and this filter placed before the water softener does a really good job. Water is clear, odourless, and just looks good and clean. Very happy so far. Its been installed for about 10 days, so hopefully the good performance continues.
