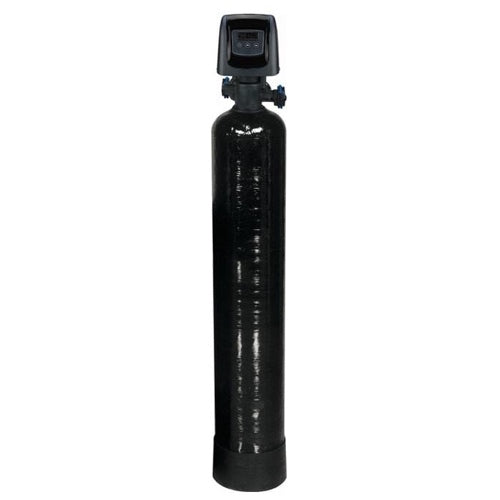

Atmos-AIO Iron & Sulphur Water Filter
1,299.99 - 1,329.99
Select your plumbing connectors below. Learn more about these options here.
Description
The Atmos AIO uses the power of atmospheric oxygen to rid your well water of iron, sulphur, and manganese. Say goodbye to stained tubs & toilets, stained laundry, metallic-tasting water, and foul smells when someone has a shower or fills the kitchen sink.
We've leveraged two decades and thousands of customer interactions to design this highly effective and DIY-friendly chemical-free system. The Atmos-AIO is capable of removing high concentrations of contaminants due to its unique media mix:
Katalox Light: The most effective catalytic oxidizing media on the market
Zeolite Sand: Renowned for its particle-capturing capabilities
Calcite + Corosex: Granular media boosts pH to supercharge the filtration process
Filter Gravel: Supports the media bed and offers coarse particle filtration
Tech Specs
- Media: Katalox Light / Zeolite Sand / Calcite / Corosex / Gravel
- 1.1 cubic foot total media volume (31.15 litres)
- 10" x 54" media tank (25.4cm x 137.2cm) for maximum air pocket
- Clack WS1/AIO Control Valve
- Clack Air-Blocker Upper Media Screen
- Choice of 3/4" or 1" Plumbing Connectors
- 15.0 ppm (mg/L) maximum iron + manganese treatment
- 3.0 ppm (mg/L) maximum sulphur treatment
- 8.0 gpm (30.3 lpm) service flow rate
- Factory Programmed (no user programming required)
- Minimum pH: 6.8 for iron + manganese / 7.2 for sulphur
- Approx 92 gallons of water used per backwash
In the Box
- Box 1: 10"x54" Filled & Capped Media Tank
- Box 2: Control Valve + Installation Hardware
- Box 3: Supplementary Media + Funnel
Installation Considerations
- System needs to be supplied by a 3/4" or larger supply line
- Water system must operate at 40 psi or greater
- 6.0 GPM sustained flow rate required for proper system backwash
- Max drain line distance is 20 feet
Instructions
Warranty
- 2 years
This warranty is for manufacturer's defects only. Certain control valve components, such as the main piston, seal & spacers, and the brine valve will experience wear and tear during normal usage of the softener and are not covered under the warranty.
