Atmos-AIO Iron & Sulphur Water Filter

• Removes iron, sulphur, and manganese from well water
• Includes pH boosting media for maximum performance
• System ships with 1" Male NPT Elbow and 3/4" Male NPT Straight connectors for plumbing flexibility

The Atmos AIO uses the power of atmospheric oxygen to rid your well water of iron, sulphur, and manganese. Say goodbye to stained tubs & toilets, stained laundry, metallic-tasting water, and foul smells when someone has a shower or fills the kitchen sink. The standard version is ideal for iron+manganese concentrations of 6 mg/L or less. For higher concentrations or where very high sulphur concentrations exist, the ozone version is recommended for media and system longevity and effectiveness.

• Media: Katalox Light / Zeolite Sand / Calcite / Corosex / Gravel
• 1.1 cubic foot total media volume (31.15 litres)
• 10" x 54" media tank (25.4cm x 137.2cm) for maximum air pocket

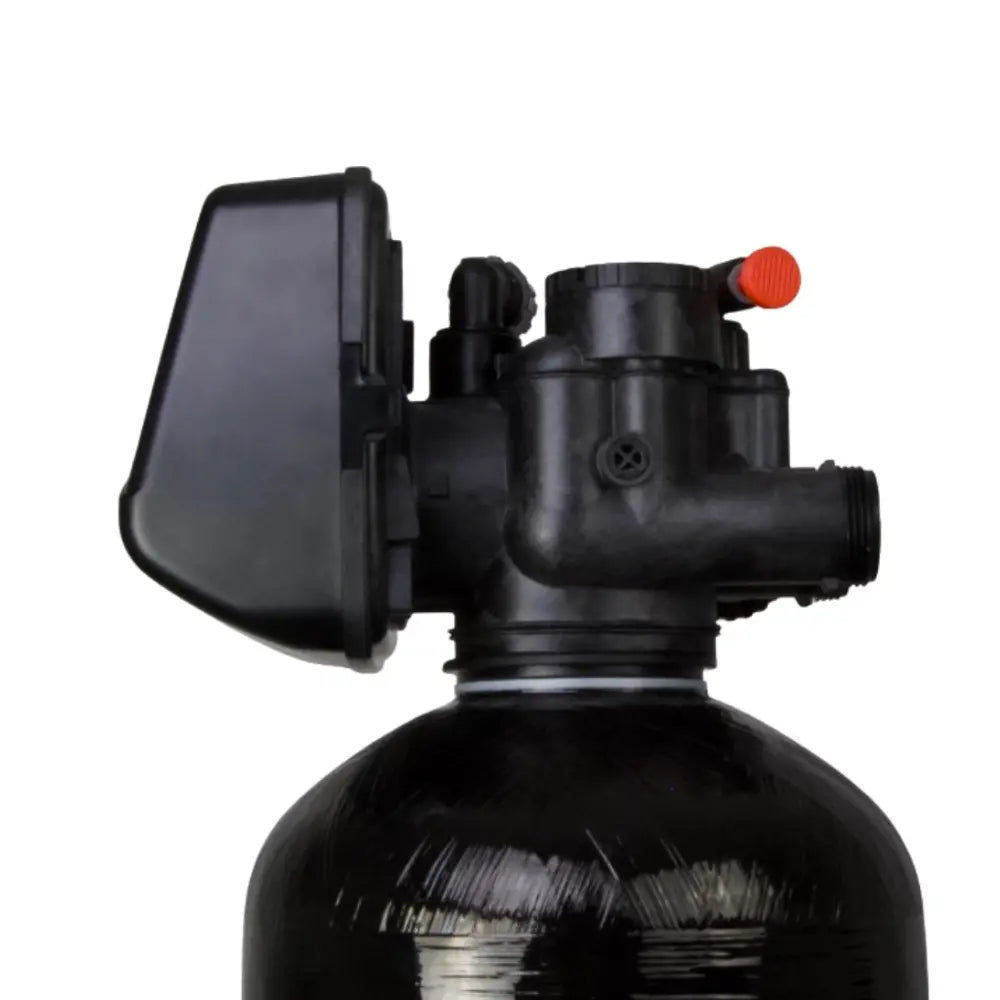

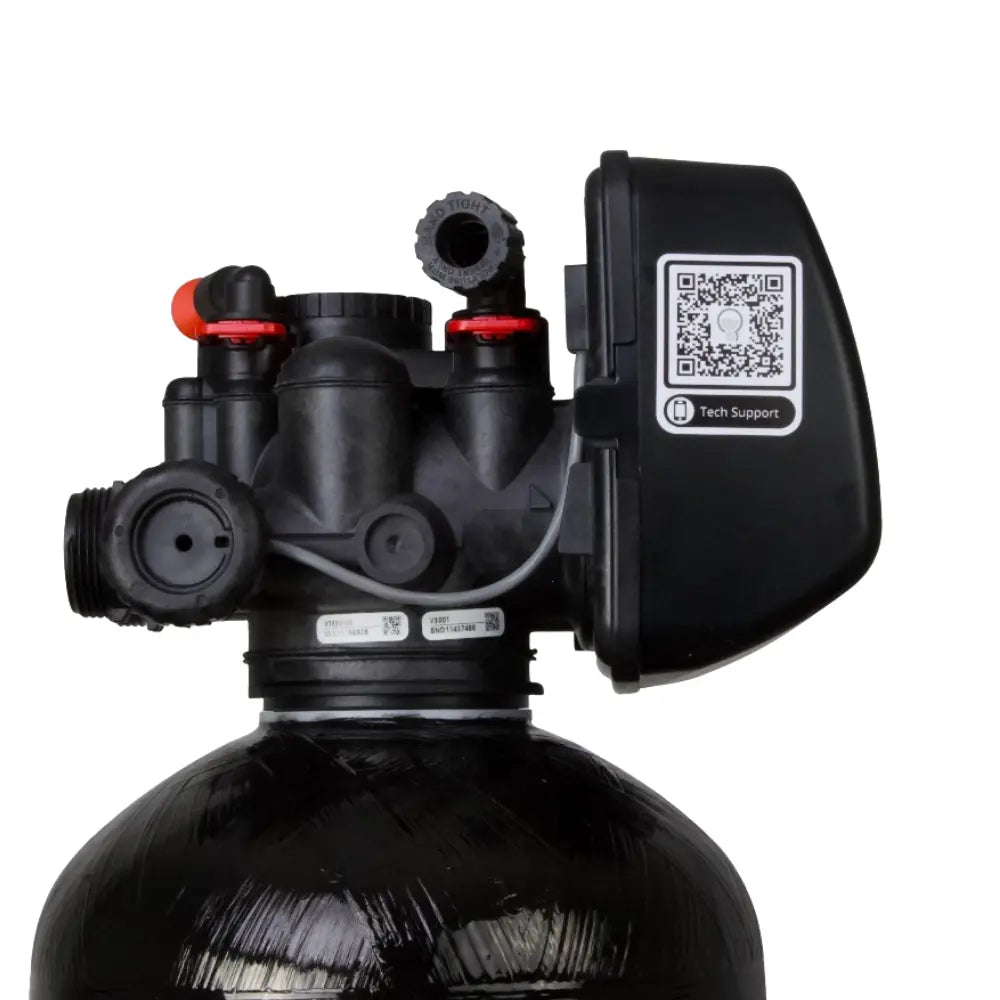

• Clack WS1/AIO Control Valve
• Clack Air-Blocker Upper Media Screen
• Choice of 3/4" or 1" Plumbing Connectors
• 15.0 ppm (mg/L) maximum iron + manganese treatment
• 3.0 ppm (mg/L) maximum sulphur treatment
• 8.0 gpm (30.3 lpm) service flow rate
• Factory Programmed (no user programming required)
• Minimum pH: 6.8 for iron + manganese / 7.2 for sulphur
• Approx 92 gallons of water used per backwash

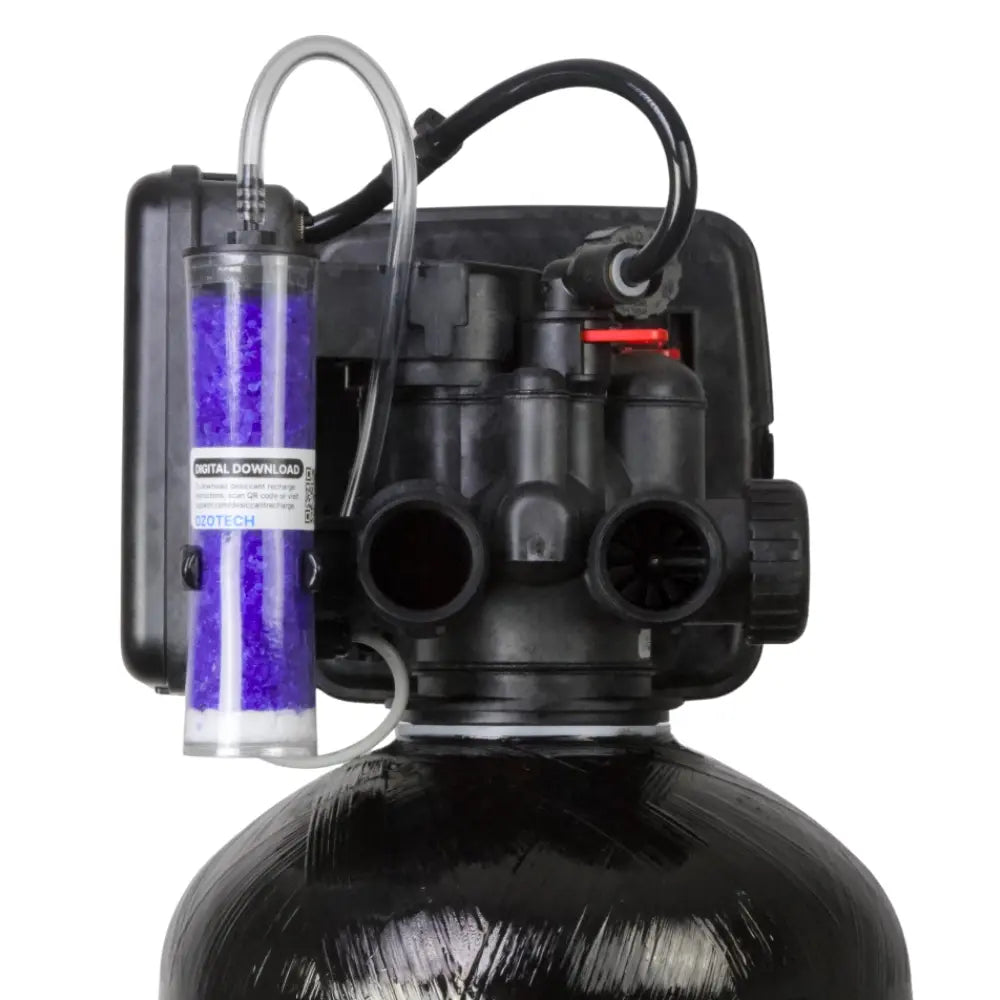

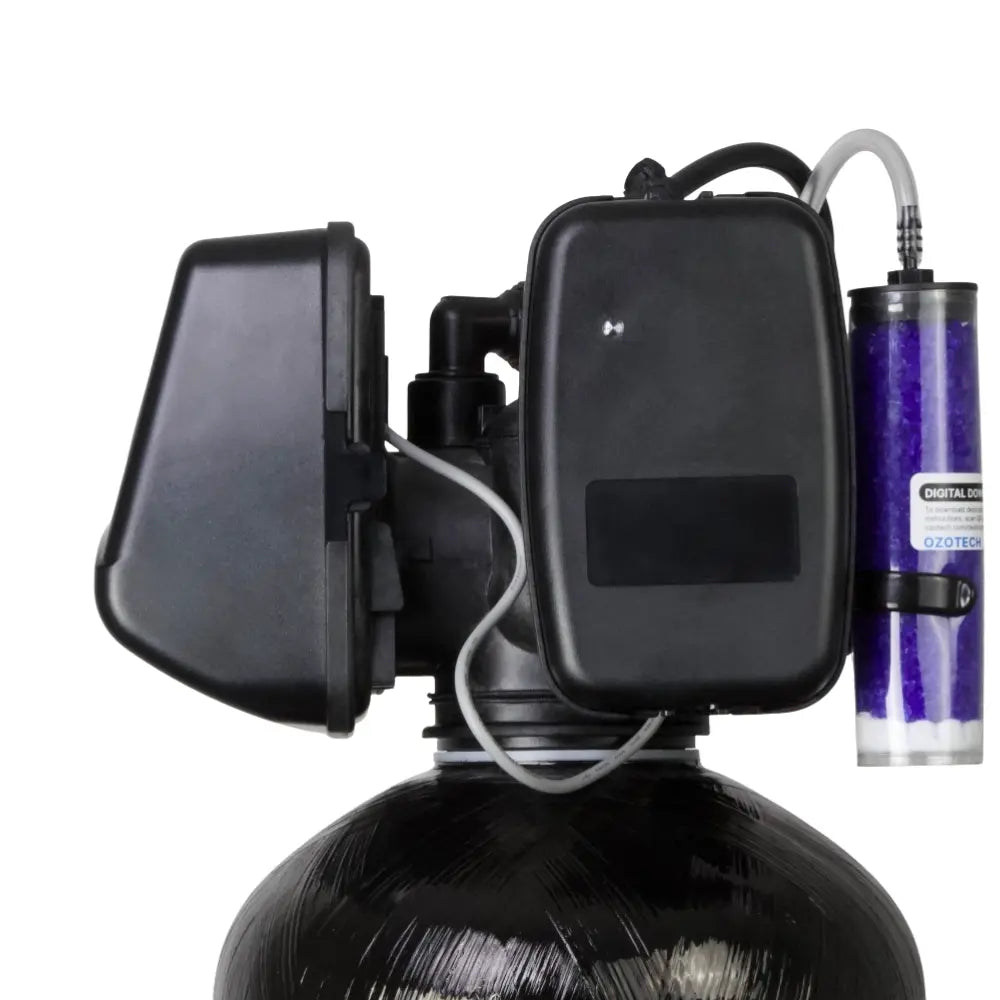

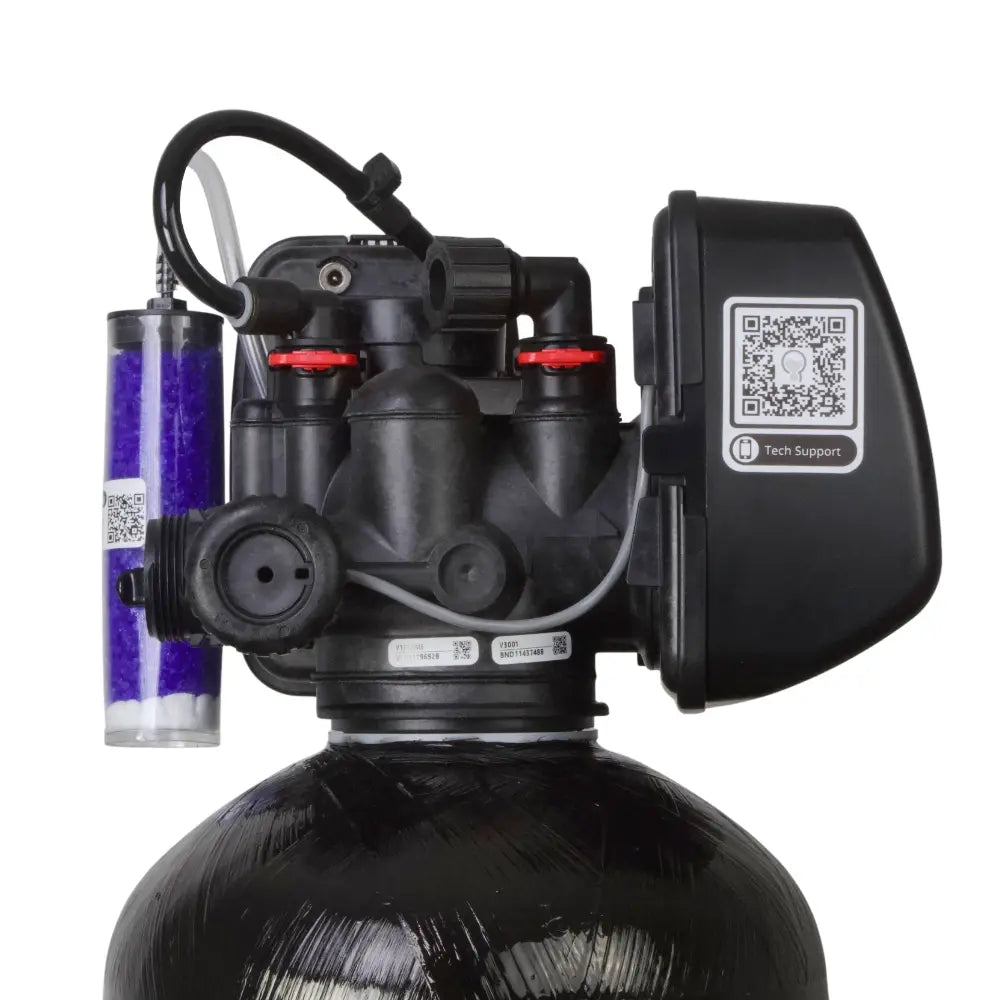

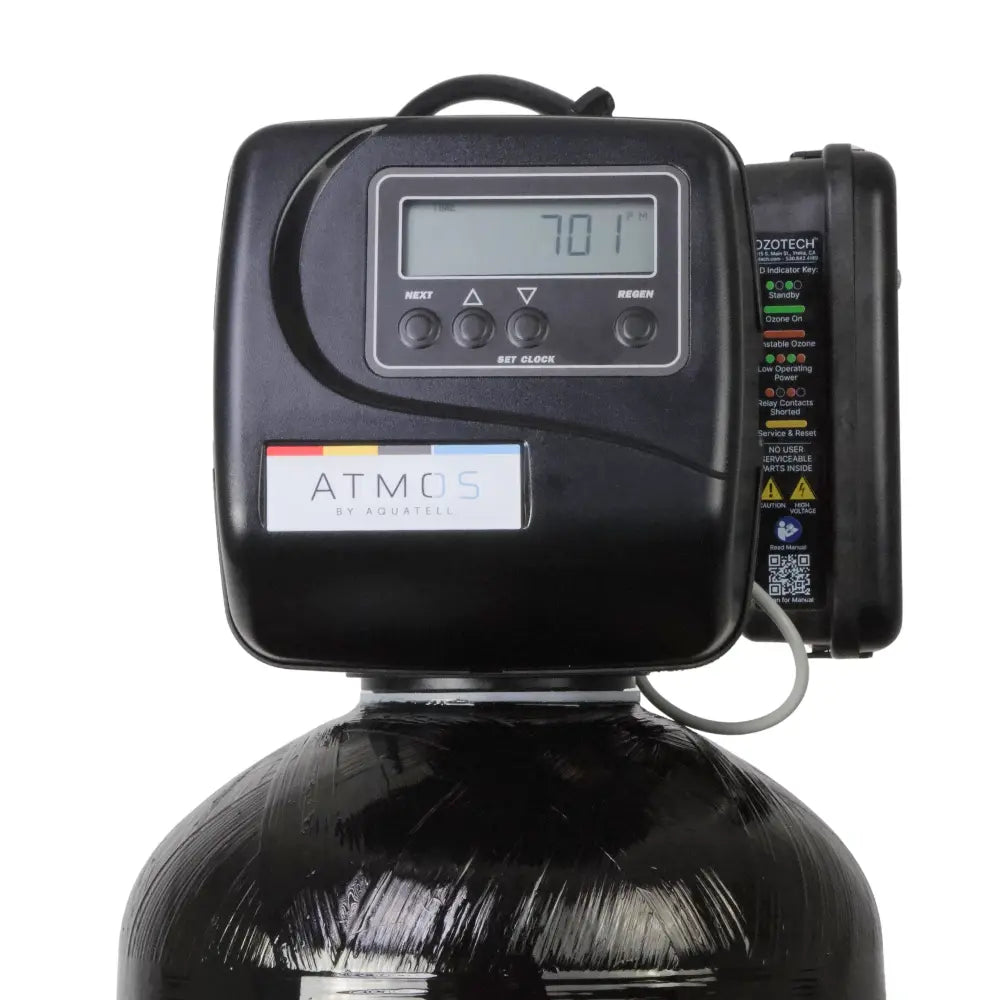

• Ozone enhanced system uses the Clack EOG 200 module

• Atmos Installation and Start Up Guide
• Clack Ozotech EOG 200 Ozone Module

• Box 1:  10"x54" Filled & Capped Media Tank
• Box 2:  Clack™ WS1EE Control Valve + Installation Hardware
• Box 3:  Supplementary Media + Funnel
• 1" Male NPT Elbow plumbing connectors
• 3/4" Male NPT Straight plumbing connectors
• 1" Clack™ bypass Valve

• 5 years against manufacturer's defects
• the piston and seal/spacer is excluded
