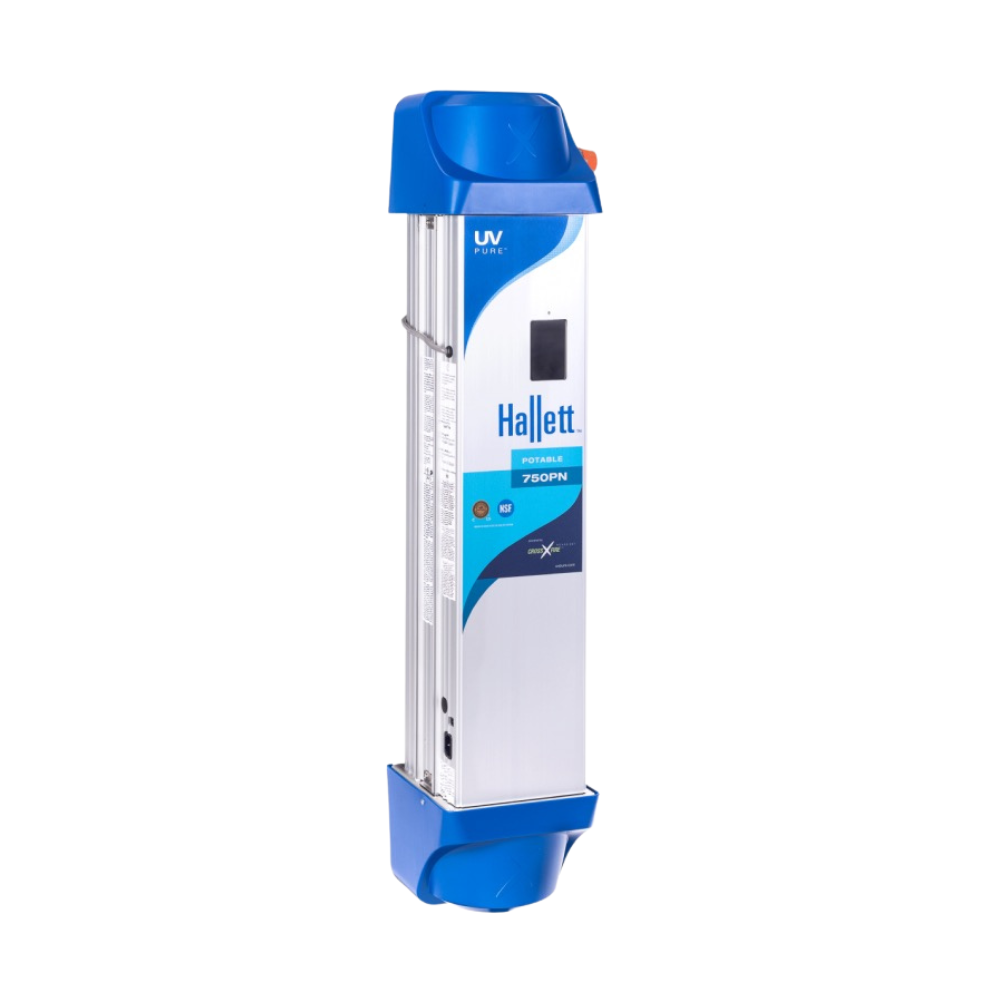

  • UV Pure Hallet Potable 750PN UV System

    Variant

    Notable System Differentiators

    • Canadian Engineered & Manufactured 🇨🇦
    • Self-cleaning quartz sleeves maintain UV performance in high-hardness water, allowing Hallett potable systems to be installed without softener pre-treatment

    Safety & Compliance

    • NSF / ANSI 55A

    Description

    The UV Pure Potable 750PN is a high-performance ultraviolet disinfection system engineered for potable water applications that demand professional-grade reliability, automation, and regulatory confidence. Built around UV Pure’s patented Crossfire® Technology, the 750PN delivers consistent microbial reduction across a broad range of operating conditions while minimizing maintenance and service interruptions.

    Unlike conventional UV systems that rely on horizontal lamp layouts and manual sleeve cleaning, the 750PN employs a vertical dual-lamp configuration with dual smart sensors, fully enclosed electronics, and an automated quartz cleaning system that eliminates fouling from hardness, iron, and other mineral deposits. This makes it uniquely well-suited for installations where water quality conditions fluctuate or pre-treatment is limited.

    Designed and manufactured in Canada and trusted in commercial, industrial, and residential potable applications, the Potable 750PN meets strict municipal standards and is widely used in cottages, small facilities, remote buildings, and mission-critical environments where uptime and water quality assurance matter.

    Tech Specs

    • Maximum flow rate: 27.4 US gpm (104 L/min)
    • Minimum UV dose: 40 mJ/cm²
    • Minimum UV transmittance (UVT): 75%
    • Maximum water hardness: 855 mg/L (50 gpg)
    • Maximum iron: 3 mg/L (3 ppm)
    • Air and water operating temperature: 1°C to 40°C (34°F to 104°F)
    • Water pressure range: 5 to 100 psig (34 to 690 kPa)
    • Relative air humidity: ≤ 70%
    • Supply voltage options: 120 VAC / 60 Hz or 230 VAC / 50 Hz
    • Power consumption (nominal): 222 W
    • Compliance / safety: UL 979, IEC 60335-1, IEC 60335-2-109, CE
    • Dimensions (H × W × D): 40.4″ × 9.6″ × 8.6″ (1026 × 244 × 218 mm)
    • Weight (dry): 34 lb (15.5 kg)
    • Weight (wet): 38 lb (17.2 kg)
    • Wetted materials: Anodized aluminum and 316 stainless steel
    • Body configuration: Double door with side hinges
    • Inlet/outlet connections: 1″ MNPT stainless steel

    Product Resources

    In the Box

    • 1 x  UV Pure Potable 750PN System

    Warranty Info

    • 5-year limited warranty on structural, hardware & mechanical components
    • 3-year limited warranty on electrical components & quartz sleeves
    • 12-month limited warranty on lamp bulbs
    • 1-year limited warranty on sensor probes


    Free Shipping over $250

    Ships from Canada

    Water Industry Experts

    Professional Support


    More Info

    About The Brand

    UV Pure® Technologies is a Canadian-founded leader in advanced ultraviolet water disinfection, with thousands of systems installed globally since the late 1990s that serve residential, commercial, industrial, public, and municipal applications. Their products leverage patented Crossfire Technology — dual UV lamps with 360° coverage and smart sensors — to deliver reliable, self-cleaning, high-performance UV disinfection even in challenging water conditions, and many systems are certified to stringent standards such as NSF/ANSI and EPA validations. Over the years the company has earned multiple industry awards for innovation and is trusted by engineers and water professionals worldwide for durable, quality solutions that make safe water a practical reality across potable, reuse, and wastewater treatment applications.

    Product Maintenance

    Regular maintenance ensures your UV system runs safely and effectively:

    • UV Lamp: Replace every 12 months (9,000 hrs)
    • Quartz Sleeve: Replace every 24 months or if damaged/un-cleanable
    • Quartz Sleeve Cleaning: At least once a year during lamp change
    • O-Rings/Seals: Inspect annually, replace as needed
    Lamp Care & Disposal

    Some UV lamps contain a small amount of mercury, similar to household fluorescent bulbs. When replacing your lamp, please dispose of it responsibly by following your local municipal or provincial recycling guidelines. Many communities offer Household Hazardous Waste (HHW) drop-off programs or recycling depots that accept UV lamps.

    ↳ Learn More: Canada’s Mercury and Lamp Strategy

    Looking for a Mercury-Free UV System?

    Check out our: Mercury-Free UV LED Systems
