Understanding Pipe Diameter
Why plumbing diameter matters?
Plumbing diameter affects both how easily your system installs and how well it performs.
For your new system, choose plumbing connectors that match your home’s existing pipe size. This keeps the installation simple and avoids having to purchase extra plumbing fittings.
Matching the diameter also preserves water flow. If plumbing fittings are selected that are smaller than your plumbing, it can restrict flow to the equipment and reduce household pressure — especially when multiple fixtures are running.
How Inside and Outside Diameter Actually Work
This image shows a pipe viewed from the end.
The light blue center is the space where water flows — that’s the inside diameter.
The dark ring around it represents the pipe wall thickness.
The orange line across the full circle shows the outside diameter.
↳ Key Takeaway: Plumbing is named after the inside diameter, but what you physically measure is the outside diameter.
That’s why a pipe labeled ¾” will measure closer to 7/8” across the outside.
Standard Residential Plumbing Sizes Explained
Most residential water lines use CTS sizing (Copper Tube Size).
This includes:
- Copper
- PEX
- CPVC
For these materials, the outside diameter is standardized.
Here’s what you’ll measure across the outside of the pipe:
| Nominal Size (What It’s Called) | Outside Diameter (Approximate) |
|---|---|
| ½” | 5/8” (0.625”) |
| ¾” | 7/8” (0.875”) |
| 1” | 1-1/8” (1.125”) |
So if your tape measure shows:
• Around 5/8” → You have ½” plumbing
• Around 7/8” → You have ¾” plumbing
• Around 1-1/8” → You have 1” plumbing
The connectors are selected based on the nominal size — not the raw measurement you see on your tape measure.
🗒️ Quick Note: Nominal Size
What is nominal size? In plumbing, nominal size is the industry label for a pipe — not its exact outside measured diameter.
For example, a pipe labeled “1 inch” will not measure exactly 1 inch across with a tape measure. The actual outside (and inside) diameter varies by material, but the nominal size remains standardized so fittings and connectors are compatible.
↳ In simple terms: Nominal size is the name — not the measurement.
That’s why it’s important not to rely on outside diameter alone when selecting connectors.
Note: This applies to copper, PEX, and CPVC.
Identifying Your Plumbing Type
Before choosing a connector, it can be helpful to know what type of plumbing you’re working with:

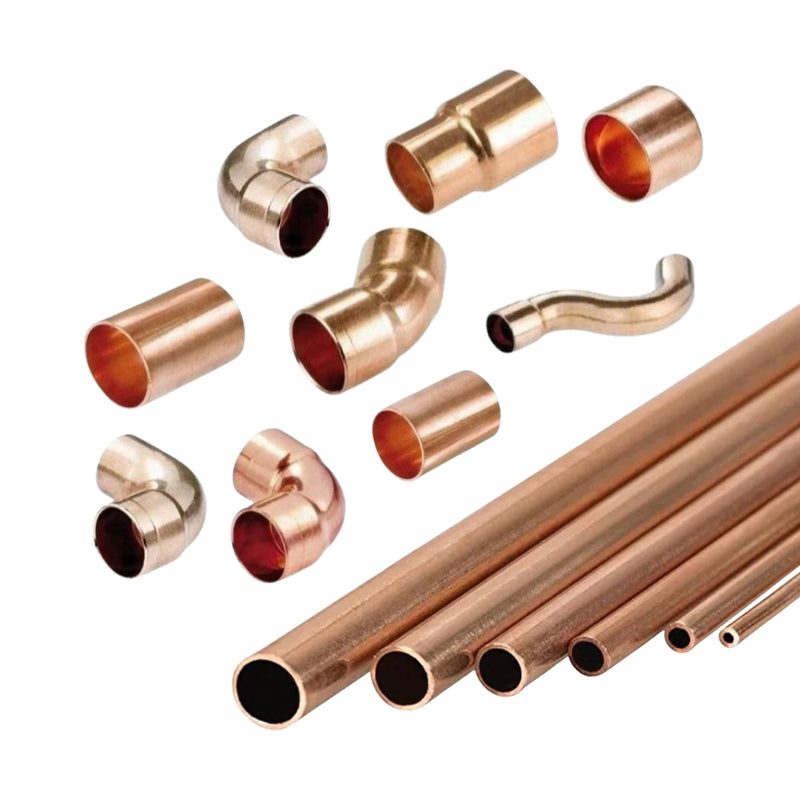

Copper
- Rigid metal pipe
- Reddish-brown (may oxidize green over time)
- Typically soldered fittings
- Common in homes built before early 2000s
Copper rarely has the size printed in visible locations, so measuring OD is often necessary.

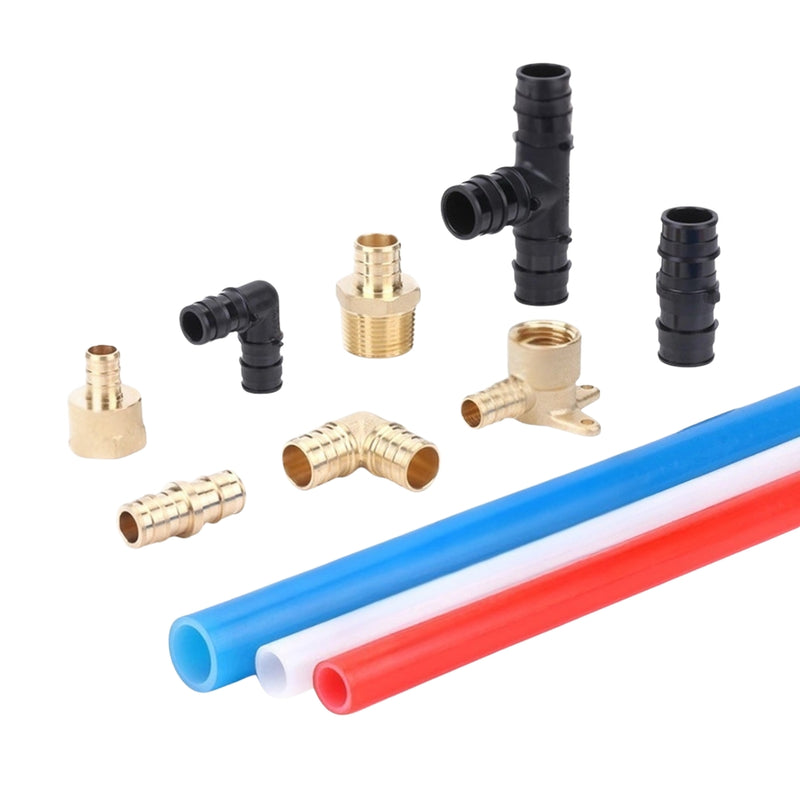

PEX
- Flexible plastic tubing
- Usually red (hot), blue (cold), or white
- Size is typically printed directly on the pipe
- Uses crimp, clamp, or expansion fittings
Typically used in most modern homes built in the last 15–20 years.

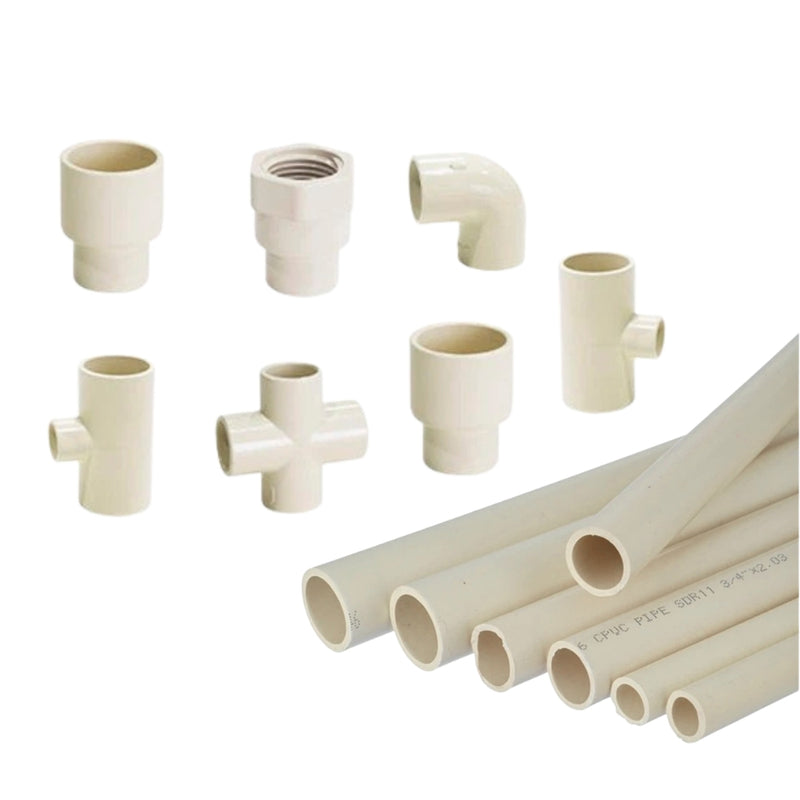

CPVC
- Rigid plastic pipe
- Cream or off-white color
- Solvent-glued fittings
- Often has size printed on the pipe
Common in certain regions and homes built in the 80s–early 2000s.
Quick Note: Printed Sizes
If you see printing on the pipe — for example, “¾ PEX” — that marking indicates the nominal size.
That number refers to the pipe’s labeled size, not the outside measurement you would get with a tape measure.
So even though a pipe marked “¾” will measure closer to 7/8” across the outside, the printed size is still the correct plumbing diameter to use when selecting connectors.
❕Important: Wall Thickness Varies — Size Does Not
Copper, PEX, and CPVC share the same outside diameter under CTS sizing.
However, the inside opening varies slightly between materials because wall thickness differs.
This does NOT change which connector you need.
Connectors match the standardized outside diameter (CTS), which corresponds to the nominal size.
That’s why identifying ½”, ¾”, or 1” correctly is what matters most.

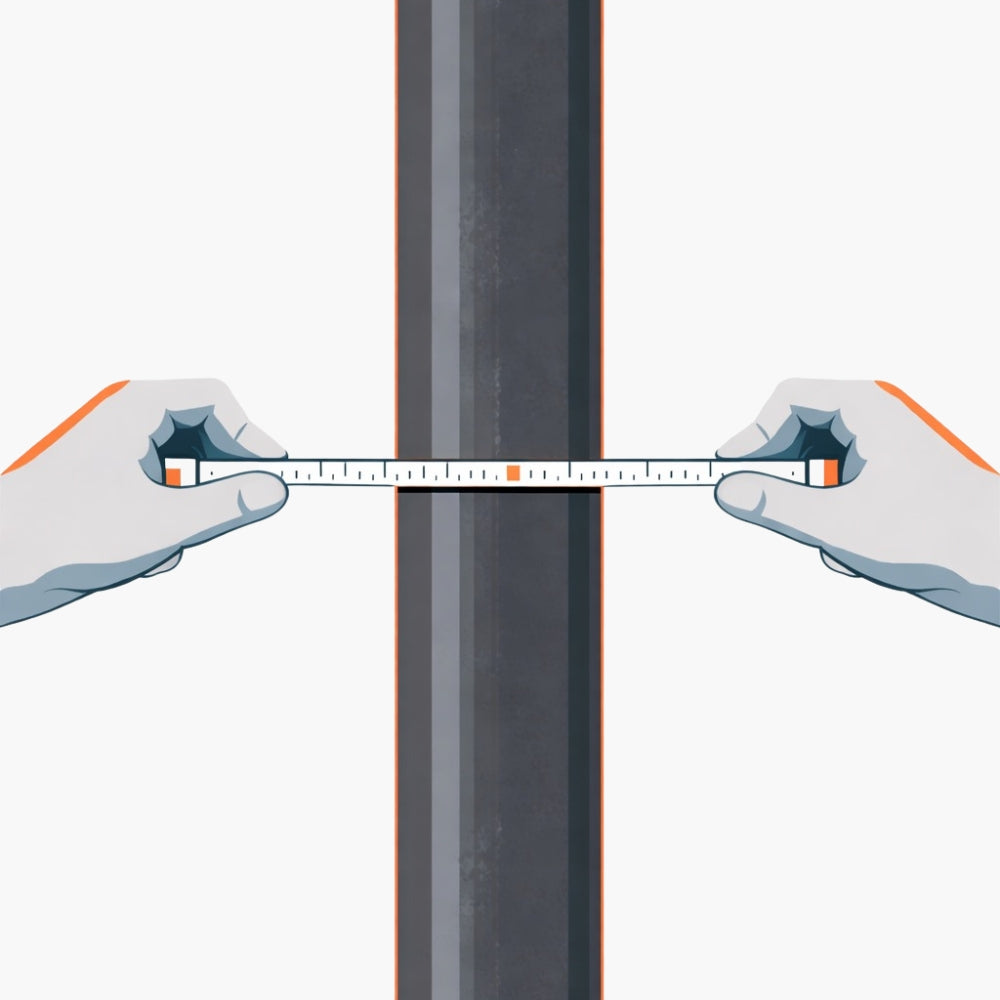

How to Measure Your Plumbing Correctly
If you’re unsure of the size:
- Measure across the outside of the pipe.
- Compare to the chart above.
- Round to the closest standard nominal size (½”, ¾”, 1”).
Do not try to match the exact tape measurement to the pipe label.
Match it to the nearest standard nominal size.
Why This Matters for Water Softeners & Filtration Systems
Selecting the wrong plumbing diameter can lead to:
- Incorrect bypass fittings
- Flow restriction
- Leaks or improper sealing
- Installation delays
Understanding plumbing diameter ensures:
- You select the correct connectors
- Your system maintains proper flow
- Your installation goes smoothly
