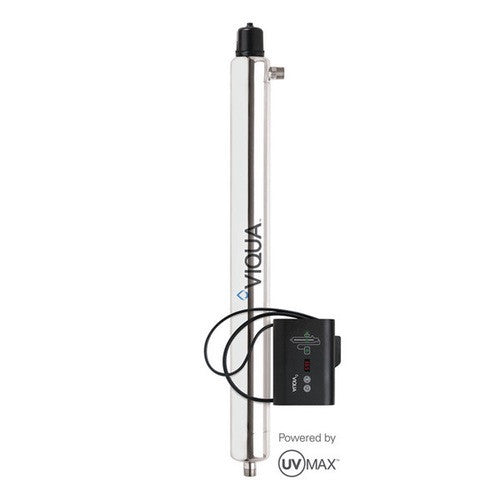

Viqua UVMax F4 UV System (650686)
1,887.00
650686
Description
Viqua UVMax F4 (650686) is highly-featured water disinfection system suitable for many commercial and industrial drinking water applications. Features lamp life indicator and visual/audible alarms for system performance.
Resources
Tech Specs
- Flow Rate: 30.5 U.S. GPM at 95% UV Transmittance
- Installation Location: On main water line (Point of Entry)
- Installation Orientation: Horizontal or Vertical
- Plumbing Connectors: 1" NPT
- Chamber Material: 316L Stainless Steel
- Dimensions: Chamber 44.25” x 4” Power Supply 8.5" x 6"
- Required Accessories: 5 Micron Pre-Filter
- Water Hardness: Suggested less than 7 grains per gallon (GPG)
- Water Iron Level: Suggested less than 0.3 ppm (mg/L)
In the Box
- Stainless Steel UV Chamber
- UV Lamp
- Quartz Sleeve
- Sleeve Bolt
- Power Supply
- Mounting Bracket
Warranty
- Lamp/Sleeve - 1 year
- Power Supply - 3 years
- UV Chamber - 10 years
